Softron M|80 8-Channel HD Recorder for Mac with 8x Licenses of MovieRecorder Software (on USB Dongle)

With the M|80, you can enjoy all the amazing features of MovieRecorder, in a certified hardware and software bundle. Softron utilizes some of the highest quality hardware components to provide users with a superior multi-stream HD experience. Just connect the M|80 to your new Mac Pro, using a single Thunderbolt 2 cable, start MovieRecorder 4 and you are ready to start ingesting 8 streams of HD (or SD) on your Mac Pro!

• 8 HD channels all-in-one box capture solution for your Mac
• No transfer time needed (files are readily available)
• Edit-while-ingest
• Ideal for multicam live recording
• Apple ProRes, Avid DNxHD
• Multiple codecs & destinations
• Record 8 video channels at once using a single Thunderbolt port
• Manual or scheduled recordings
• Timer to automatically stop recording a manual recording after a given time
• A Direct link from OnTheAir Video and OnTheAir Node (no video input required to ingest from these applications playing on the same Mac)
• Looped recording i.e. it records permanently on the same file and goes back to the beginning when it reaches the end of the file for Time Shifting playout for example
• Encode to multiple destinations using different codecs using easy presets
• Support for 4K recording
• MXF and QuickTime files support
• H.264 support
• Record Closed Captioning CEA-708 to a QuickTime CC track. (Requires the CC option with M|80, only with HD sources)
• Frame-accurate file switch for 24/7 recording
• Remote Control with a REST API
• Metadata (Coming soon)

Edit-While-Ingest
• Using Classic (set a recording duration and the duration is updated at the end of the recording) or Segmented files (files just grow over time)
• Compatible with most editing application (including Final Cut Pro X, Adobe Premiere)

Scheduling
• Schedule weekly recordings
• Daily recordings
• Each schedule item can have its own destination/file name

Streaming (with MovieStreamer HLS)
• Support for adaptive streaming : encodes to multiple bitrates & formats
• Automatic upload to FTP or Amazon S3
• Integration with JWPlayer for Flash compatibility

VTR Control
• Control VTR using RS422 to capture multiple channels on one Mac
• Purchase the optional "Serial Commander" to add 4 RS422 ports on your Mac. If you connect 2 Serial Commanders, you will be able to control and record 8 VTRs from one single computer

Video Features
• SMPTE 259M-C (SD SDI) and 292M (HD SDI) completely independent transmitters and receivers
• Single Link SDI and Dual Link SDI (DL-SDI) capture for source image formats: HD formats as per SMPTE 274M and 296M: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 1080PsF30/29.97/25/24/23.98, 720p60/59.94/50
• 2K formats as per SMPTE-2048-2: 2048x1080p30/29.97/25/24/23.98, 2048x1080PsF30/29.97/25/24/23.98
• Dual Link formats support as per SMPTE 372M: 1080p60/59.94/50
• SD formats as per ITU-R BT.601-5 part A: NTSC 525i59.94, PAL 625i50
• 4K (4096x2160) and UHD SDI (3840x2160) capture as 4-quadrant HD

Other features
• Time code (VITC, LTC, ATC) de-embedding as per SMPTE RP188
•OP42 CEA-708 close captions de-embedding

A small and silent expansion chassis

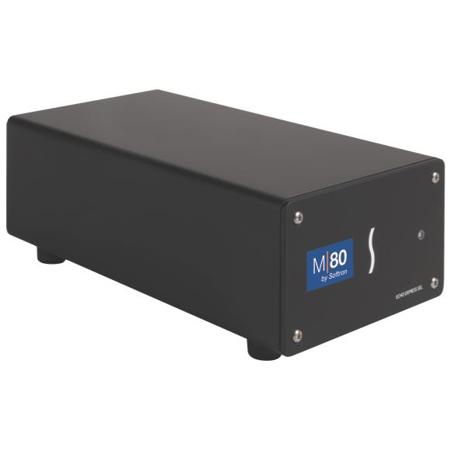

Softron has a lot of experience working with Sonnet and their xMac mini Servers and xMac Pro Server solutions. These are amazing products that have been put into service by a number of their users who require rack-mountable solutions. The Sonnet Echo Express SEL is the only Thunderbolt 2 device that is suitable for Low-Profile cards, making it the smallest yet most powerful solution to accommodate the Low-Profile Deltacast card that they chose for the M|80. As you can see in the picture above, you will notice that this chassis is very small - just like the new MacPro! AND most importantly, it is QUIET!

What about 2K and 4K?
With the M|80, you are able to record either:

• 8 x HD (or SD)
• 4 x 2K
• 2 x 4K signals

System Requirements
As usual, the system requirements will depend on the format and codec that you will be using and Softron recommend that you run tests to confirm. Note also that you may want to check the Thunderbolt bandwidth limitation, as for example in 1080i59.94, you can not work with 8 channels in 10-bit, you can maximum do 6 channels in 10-bit and 2 channels in 8-bit. In 1080i50 or 720p60 for example, there is no problem, it all depends on the format and sample size you require.

The M|Case - Made for portability
The M|Case is an optional watertight, crushproof and dustproof case made by the famous Pelican case manufacturer. Softron have designed a beautiful custom foam that will allow you to transport up to two of your favoriteM|80, M|62 or M|44 together with a Mac Pro securely. The M|Family of products is an ideal solution for mobile productions. And the M|Case allows you to transport it together with a Mac Pro in a small case. It is based on the 1440 Top Loader Case. With its strong wheels and retractable extension handle, you are ready to roll a complete M|familysystem to where the production happens.

Need to rack mount?
The M|80 comes with the Sonnet Echo Express SEL and hosts a Low-Profile card. With its small factor, this very nice for portability. But for those of you who need to mount the M|80 in a rack, using for example the Sonnet xMac Pro Server, they can provide a standard Full-Height bracket that will fit in a regular PCI slot. Just mention it when you order and they will include it for you.

Available options
• Closed Captioning - one option required per M|80
• Pro Codecs - one option required per M|80
• Multicam Logger - a license for Multicam Logger will be provided when ordered together with an M|80
• M|Case - a watertight, crushproof and dustproof case made by the famous Pelican case manufacturer
• M|Care 3-year Warranty Extension

The only 8 input card on the Mac!
DELTACAST is an OEM solutions provider dedicated to developing and manufacturing state-of-the-art products for the professional digital video market. DELTACAST only recently developed Mac OS drivers so their presence on the Mac market is relatively new. They were (and are still currently) the only manufacturer offering a reliable, single Low-Profile video card that provides 8 inputs.
