SoundTube CM82-BGM Specifications

  • Impedance

    16 Ohms (nominal)

  • Sensitivity

    At 1 with 1m: 81.4dB
    At 1 with 1m: 84.5dB

  • Frequency Response

    56 Hz - 20 kHz (- 3dB)
    45 Hz - 22 kHz (-10dB)

  • Max. Program Power

    128W

  • Max. Continuous Power RMS

    64W

  • Max. Power SPL

    At 1m: 102.5dB

  • Coverage Angle

    105 deg. (-6dB at 2 kHz)
    40 deg. (-6dB at 10 kHz)
    95 deg. (averaged 2-10 kHz)

  • Directivity Factor (Q)

    7.6 (averaged 100 Hz - 10 kHz); 8.2 (2 kHz)

  • Directivity Index (DI)

    6.9dB (averaged 100 Hz - 10 kHz); 6.6dB (2 kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 203mm (8") Polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm(1") Silk dome tweeter with BroadBeam Ring

  • Low-Frequency Voice Coil

    25.4mm (1.0")

  • Crossover Frequency

    3.0 kHz

  • Network Type

    Low Pass: 12dB per octave, 2nd order
    High Pass: 12dB per octave, 2nd order

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Painted steel

  • Inputs

    Ceramic terminal connector

  • Mounting Hole Diameter

    266.7mm (10.50")

  • Min - Max Ceiling Thickness

    0.9mm (0.035") - 40.6mm (1.6")

  • Regulatory

    UL 1480 and 2043; CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 245.6 x 203.2mm (9.67 x 8.00")
    Visible: 298.5 x 8.6mm (11.75 x 0.34")

  • Weight

    4.1kg (9.0 lbs)

  • UPC Code

    644216197309

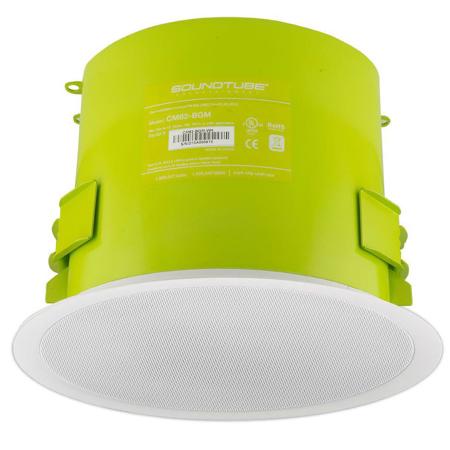

About SoundTube CM82-BGM

The CM82-BGM is an 8" coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating an 8" polypropylene driver with a butyl rubber surround and a 1" silk dome tweeter in a sealed drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (45 Hz - 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge "full-metal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six position tap switch for 25-, 70.7- and 100- volt applications with a transformer bypass position.

Applications Developed specifically for paging and background music applications where cost, quality and fit are paramount, the CM82-BGM is ideal for hotels, education, hospitals, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CM-BGM series is engineered for installations where high-efficiency, added bass response and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube's CM1001d subwoofer provides true low-end response down to 50 Hz.

SoundTube CM82-BGM Features

  • One 8" (203mm) polypropylene woofer with butyl rubber surround and one 1" (25mm) silk dome tweeter
  • BroadBeam Ring technology for midrange clarity and ultra wide off axis performance
  • Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for added musicality and bass response down to 45 Hz (-10dB )
  • Reduced amplification costs and maximum efficiency of 84.5dB sensitivity, 16 Ohms impedance
  • Incorporates a painted steel grille for lasting durability
  • Adaptable to material thicknesses ranging from 0.035" (0.9mm) to 1.6" (40.6mm)
  • High-quality white painted finish

Key Features

  • One 8" (203mm) polypropylene woofer with butyl rubber surround and one 1" (25mm) silk dome tweeter
  • BroadBeam Ring technology for midrange clarity and ultra wide off axis performance
  • Tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering
  • Tuned port on baffle for added musicality and bass response down to 45 Hz (-10dB )
  • Maximum efficiency of 84.5dB sensitivity, 16 Ohms impedance

What's in the box:

  • SoundTube CM82-BGM 8 " In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • SoundTube 5 Year Limited Warranty
