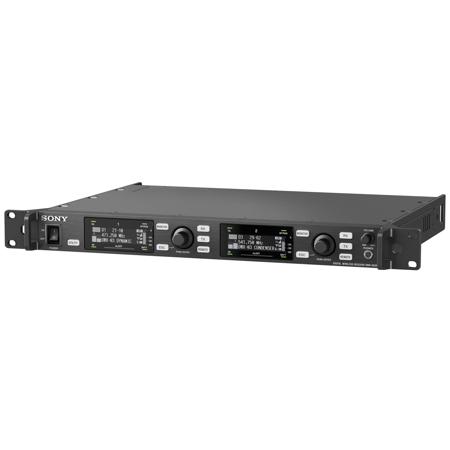

Sony DWX Series DWR-R03D 2-Channel Digital Wireless Receiver

SKU: SODWRR03D MFR: DWR-R03D
$4,699.00
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Sony wireless receiver's wide 20Hz-22kHz frequency response.
  • Achieve superior sound quality, thanks to the digital wireless receiver's impressive 106dB dynamic range.
  • Minimize audio delays; this wireless system's low latency is perfect for live broadcast and recording.
  • Ensure seamless integration; this digital receiver offers versatile analog and digital output options.
  • Enjoy stable, long-range wireless connectivity with true diversity reception for uninterrupted audio.
  • Simplify setup with this user-friendly wireless receiver, featuring detachable antennas and clear OLED display.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony DWR-R03D Specifications

  • Wireless Interface

    WiDIF-HP

  • Oscillator Type

    Crystal-controlled PLL Synthesizer

  • Reception Type

    True diversity

  • Circuit System

    Double Superheterodyne

  • Antenna Type

    Detachable

  • Antenna Connector

    2 diversity mode: Input BNC-R, 50Ohms (x2), Cascaded Output BNC-R, 50Ohms (x2)
    4 diversity mode: Input BNC-R, 50Ohms (x4)

  • Carrier Frequencies - UC7

    470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz, 25 kHz steps

  • Carrier Frequencies - CEZ

    470.025 MHz to 714.000 MHz, 25 kHz steps

  • Carrier Frequencies - J

    W: 470.150 MHz to 713.850 MHz, 25 kHz steps
    G: 638.025 MHz to 713.850 MHz, 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps, 806.125 MHz to 809.750 MHz, 125 kHz steps

  • Frequency Response

    20Hz to 22kHz (typical)

  • Dynamic Range

    106 dB or more typical (A-weighted, T.H.D=1%)

  • Distortion (T.H.D)

    MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less

  • Audio Delay

    MODE1; 1.9 msec (total: 3.1/3.4msec) (Analog output), 1.9 msec (total: 3.1/3.4msec) (Digital output)
    MODE2: 0.5 msec (total: 1.2/1.5msec) (Analog output), 1.5 msec (total: 2.2/2.5msec) (Digital output)
    MODE3: 1.9 msec (total: 3.7/4.0msec) (Analog output), 2.8 msec (total: 4.6/4.9msec) (Digital output)

  • Analog Output

    BAL: XLR-3-32 (male) (Main 2, Sub 2), Output level (0 dBu = 0.775 Vrms)
    Main BAL: +24 dBu maximum/-58 dBu to -12 dBu (1dB step adjustable) reference
    Sub BAL: +24 dBu maximum/-12 dBu reference

  • Digital Output

    XLR-3-32 (male), 110Ohms (x2) / BNC-R, 75Ohms (x1), Reference output level: -36 dBFs

  • Headphone Output

    Dia. 6.3mm (1/4") stereo jack

  • Word Sync IN/OUT Connectors

    Input connector: BNC-R with a 75Ohms termination switch, Output connector: BNC-R, External Word Sync: 32 kHz to 96 kHz

  • Wireless Remote Control

    Cross Remote (2.4 GHz IEEE802.15.4 compliant)

  • LAN Connector

    RJ-45 modular jack 1000BASE-T: IEEE802.3ab compliant (x 2)

  • Display

    OLED (x2)

  • Power Requirements

    AC: 100 to 240 V

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions

    Approx. 482 x 44 x 335mm (18.98 x 1.73 x 13.19")

  • Weight

    Approx. 3.9kg (8.60 lbs)

About Sony DWR-R03D

Take your live sound applications to the next level with the Sony DWX Series DWR-R03D 2-Channel Digital Wireless Receiver. As the third generation in Sony's esteemed DWX series, this receiver sets the standard for professional audio quality and reliable performance in diverse environments, from bustling concert halls to the precision of studio-based TV production and Electronic Field Production (EFP).

Crafted with durability and innovation in mind, the DWR-R03D boasts Sony's cutting-edge digital audio processing, encryption, and RF transmission technologies. This ensures a secure, stable connection while delivering exceptionally high-quality audio with minimal latency. The receiver's advanced Sony codec design provides an impressive dynamic range exceeding 106 dB, a broad frequency response from 20 Hz to 22 kHz, and outstanding transient response, capturing every nuance of the performance.

With its 1U rack-mountable design, the DWR-R03D is engineered for high-density, multi-channel operations. It supports up to 21 channels per 8MHz TV band or 16 channels per 6MHz TV band, making it an ideal choice for large-scale productions. The receiver is also equipped with dual OLED displays for clear, at-a-glance monitoring of operating information and channel status.

For audio professionals seeking advanced networking capabilities, the DWR-R03D is compatible with the Dante audio-over-IP standard, facilitating seamless networked multi-channel setups. Dual Dante ports offer the convenience of redundant network operation, and the receiver allows for headphone monitoring within the Dante network.

Remote control is a breeze with compatibility with Sony's Wireless Studio control software for PC (Version 5.0 or later). The Cross Remote function, in conjunction with the optional RMU-01 remote control unit, enables control of up to 82 transmitters, streamlining your workflow.

Security is paramount in live performance settings, and the DWR-R03D addresses this with AES 256-bit encryption, ensuring that your wireless audio transmission remains confidential. Additionally, the receiver's X-Dimension Diversity technology, high dynamic range RF circuits, and 4-antenna diversity reception system enhance RF transmission stability, giving you peace of mind during critical moments.

The DWR-R03D also features a setting lock to prevent accidental changes during use, a low-latency audio performance as little as 1.2ms, and an automatic frequency change function to swiftly resolve any dropouts. The 244MHz wideband capability reduces the need for multiple pieces of equipment, easing maintenance burdens.

For installations requiring multiple receivers, the AC power cascade feature simplifies power distribution. User settings can be stored directly on the DWR-R03D for quick recall, and the transmitter/receiver identify function allows for easy pairing verification through a blinking display.

Choose the Sony DWX Series DWR-R03D 2-Channel Digital Wireless Receiver for its unparalleled audio quality, advanced features, and the reliability synonymous with a brand like Sony. Whether for live performances or professional recordings, this receiver stands as a testament to Sony's commitment to high-quality, innovative audio solutions.

Sony DWR-R03D Features

  • Switchable analogue (balanced) and AES/EBU digital audio sub output
  • Adjustable audio output level (1dB step)

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Experience pristine audio with this Sony wireless receiver's wide 20Hz-22kHz frequency response.
  • Achieve superior sound quality, thanks to the digital wireless receiver's impressive 106dB dynamic range.
  • Minimize audio delays; this wireless system's low latency is perfect for live broadcast and recording.
  • Ensure seamless integration; this digital receiver offers versatile analog and digital output options.
  • Enjoy stable, long-range wireless connectivity with true diversity reception for uninterrupted audio.
  • Simplify setup with this user-friendly wireless receiver, featuring detachable antennas and clear OLED display.

What's in the box:

  • Sony DWX Series DWR-R03D 2-Channel Digital Wireless Receiver
  • 2x Whip Antenna
  • AC Power Cord
  • AC Cascade Cord
  • 4x Foot
  • Operating Instructions (CD-ROM)
  • Sony Warranty
