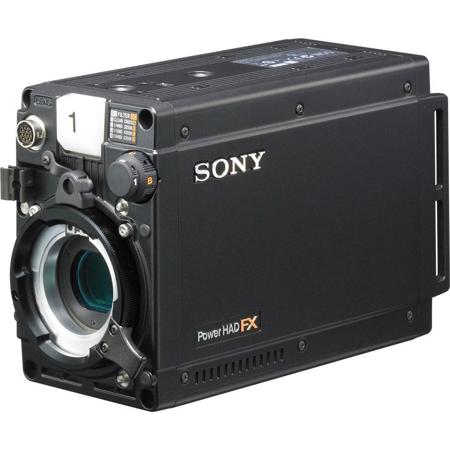

Sony HDC-P1 Full Multi Purpose Compact Camera, 2/3" 3-CCD, 1080p Resolution

SKU: SOHDCP1 MFR: HDCP1
Earn VIP Reward Points

Key Features

  • Capture stunning 1080p HD footage with this Sony multi-purpose compact camera.
  • The 2/3" CCD sensor ensures exceptional image quality, even in low light conditions.
  • Achieve broadcast-quality video with interchangeable lens options for creative control.
  • Enjoy versatile connectivity with HD-SDI and SD-SDI outputs for seamless integration.
  • Durable design ensures reliable performance in demanding studio and ENG environments.
  • Easily adjust settings via LAN connectivity for remote camera operation and control.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony HDC-P1 Specifications

  • Pickup Device

    3-chip 2/3-inch type CCD

  • Effective picture elements

    1920 x 1080 (H x V)

  • Signal format

    1080/50i, 1080/59.94i, 720/50p, 720/59.94p

  • Spectrum system

    F1.4 prism

  • Lens mount

    Sony bayonet mount

  • Built-in filters

    CC: A: CROSS, B:3200K, C: 4300K, D: 6300K
    ND: 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

  • Sensitivity

    At 2000 lx, 3200K, 89.9% reflectance: F10 (1080/59.94i, 720/49.94p), F11 (1080/50i, 720/50p)

  • Signal-to-noise ratio

    HD output: Typical 55 dB (NS Max. 62 dB)
    SD output: Typical 65 dB (59.94 Hz); Typical 63 dB (50.00 Hz)

  • Horizontal resolution

    1000 TV lines (at center)

  • Shutter speed

    1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/59.94i)
    1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/50i)

  • Modulation depth

    Y: 45% at 27.5 MHz (800 TV lines with typical lens), Pb/Pr: 80% of 12 MHz

  • Genlock input

    BNC (x1)
    HD: SMPTE-274M, tri-level sync, 0.6 Vp-p, 75 Ohms
    SD: Black burst (NTSC: 0.286 Vp-p, 75 Ohms/PAL: 0.3 Vp-p, 75 Ohms)

  • SDI 1 output

    BNC (x1) Can be switched between HD-SDI and SD-SDI

  • SDI 2 output

    BNC (x1) Can be switched between HD-SDI and SD-SDI

  • VBS output

    BNC (x1)

  • EXT I/O

    D-sub 15-pin (female) (x1)

  • Remote

    8-pin (x1)

  • Lens

    12-pin (x1)

  • LAN

    RJ-45 (x1), 10BASE-T/100BASE-TX

  • Power requirements

    10.5 V DC to 17 V DC, 24W (not including peripherals)

  • Operating temperature

    -4½F to +113½F (-20½C to +45½C)

  • Storage temperature

    -4½F to +140½F (-20½C to +60½C)

  • Dimensions (W x H x D)

    3.4 x 5.1 x 8.3" (8.63 x 12.95 x 21.08cm)

  • Weight

    3.74lbs / 1.7kg

Models
Sony HDC-P1 Full Multi Purpose Camera, 2/3" 3-CCD, 1080p Resolution
$29,499.95

$31,400.00

Save:$1,900.05 (6%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony SSC-N21A 650TVL Analog Color Mini-Dome Indoor Camera, Electrical Day/Night
$298.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony EVI-D90 SD PTZ Camera with RC2-SDX Cable Solution Kit, Black
$2,658.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Special FeaturesInterchangeable Lens--
Resolution1080 HDStandard DefinitionStandard Definition
Kit Style--Base
Storage Capacity-NA-
Sensor TypeCCDCCDCCD
Optical Zoom--28x
Sensor Size2/3-1/4"
Recording MediaI/O Connections--

About Sony HDC-P1

Sony HDC-P1 Full Multi Purpose Compact Camera

If you’re looking for a truly compact camera system for industrial applications consider the Sony HDC-P1. The HDC-P1 is a Point-of-View style HD camera sporting three 2/3-inch CCD sensors capable of full-HD (1920x1080p) capture at various frame rates. The HDC-P1 is a feature rich camera with the familiarity of Sony’s HDC-1000 series cameras, allowing for an ease of use for any operator. The HDC-P1 has the option of shooting at 1080/24p, a 14-bit A/D converter, motorized ND/CC filters and creative picture performance.

Key Features

  • POV-style camera can be used for a variety of applications including flash cameras, unmanned robotic studio cameras, and sporting event/arena applications
  • 2/3-inch CCD sensor capable of shooting 1920x1080 Full-HD
  • Motorized filter servo system (both ND and CC filters)
  • Same operation as the HDC-1000 series
  • LAN connectivity
  • Just 86mm thin (3.5-inches in width)

Unlike a retrofitted camcorder, the Sony HDC-P1 is a purpose-built studio camera with the ease of use found in the HDC-1000 series of cameras. Whether coupled with a robotic arm, the ceiling of an area, or set up in places where you could never place a larger camera, the HDC-P1 will deliver. The HDC-P1 is a very versatile camera system that incorporates cutting-edge technology and ease-of-operability to be your affordable multipurpose camera.

Just when you thought camera technology had reached its peak, Sony introduces the HDC-P1 Full Multi Purpose Compact Camera. This state-of-the-art Point-of-View (POV) HD camera is a perfect blend of compact design and advanced technology, designed to meet the demands of HD robotics, multi-format sports applications, and the burgeoning field of 3D applications.

The HDC-P1 carries forward the operational feel of the esteemed Sony HDC-1000 Series cameras, but with a slim, lightweight design that doesn't compromise on picture quality. This compact camera is equipped with a 1920 x 1080 2/3-inch 2.2-megapixel CCD, delivering high-definition images that seamlessly intercut with footage from the HDC-1000 or HSC/HXC cameras.

Offering a versatile feature set, the HDC-P1 supports 1080i, 1080p, and 720p operation, all packed into a compact body. Unlike camcorders repurposed for studio applications, the HDC-P1 is designed from the ground up as a studio camera, ensuring operational and functional consistency with the HDC Series cameras.

Camera matching is straightforward with the HDC-P1, and system controls are conveniently accessible within the camera's menus. The HDC-P1 shares the same control system as the HDC Series, ensuring ease of operation and a smooth transition for those familiar with the series.

The HDC-P1's versatility extends beyond its control system and slim body. It boasts optional 24p capturing capability, a 14-bit A/D converter, motorized ND/CC filters, and creative picture performance. These features make the HDC-P1 an ideal POV camera for a variety of applications, including flash cameras, unmanned studio robotics cameras, stadium sporting events, and stereoscopic 3D shooting applications.

With its cutting-edge performance, operability, and system flexibility, the Sony HDC-P1 Full Multi Purpose Compact Camera is a high-performance, yet affordable, multipurpose camera that sets a new standard in the world of professional photography and videography.

Sony HDC-P1 Features

  • (POV-style) camera with the equivalent picture performance of HDC-1000
  • Series studio cameras
  • Compact body: just 86 mm (3 1/2 inches) in width
  • Supports a wide range of capturing formats: 1080/59.94i, 1080/50i, 720/59.94p and 720/50p (add 4:2:2 1080/23.98PsF, 24PsF, 25PsF and 29.97PsF capturing formats with optional HZC-PSFP1 software)
  • Motorized filter servo system (two disks: ND and CC)
  • Same control system as HDC Series studio cameras
  • LAN connectivity

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 1080p HD footage with this Sony multi-purpose compact camera.
  • The 2/3" CCD sensor ensures exceptional image quality, even in low light conditions.
  • Achieve broadcast-quality video with interchangeable lens options for creative control.
  • Enjoy versatile connectivity with HD-SDI and SD-SDI outputs for seamless integration.
  • Durable design ensures reliable performance in demanding studio and ENG environments.
  • Easily adjust settings via LAN connectivity for remote camera operation and control.

What's in the box:

  • Sony HDC-P1 Full Multi Purpose Compact Camera
  • Operation manual
  • Tally Number Plate
  • Sony 1 Year Parts & Labor Warranty (2 Years for CCD Prism Block)
