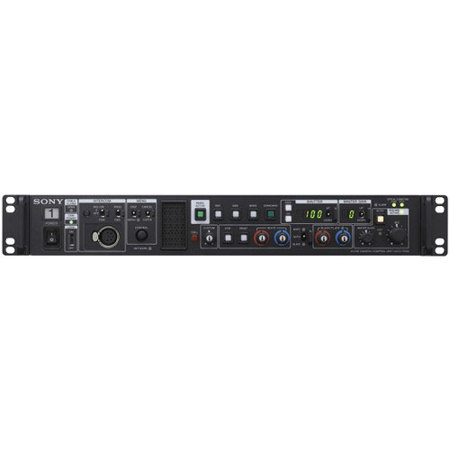

Sony HXCU-FB80N 4K/HD Camera Control Unit with Neutrik Connector for HXC-FB80N Camera

SKU: SOHXCUFB80N

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony HXCU-FB80N Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    HXC-FB80N Camera

Input/Output

Jump to...
  • Camera

    1x Optical Fiber, CCFN Cable or Single Mode Fiber Cable (LC type)

  • Distance of Power Supply

    600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXC-FB80), 1,000m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXC-P70)

  • Distance of Fiber Cable

    By Local Power Supply: 10km (max.) by Single Mode Fiber Cable (LC type) (with HXC-FB80)

  • Intercom (on the front panel)

    1x XLR type: 5-pin, female

  • Intercom/Tally/Program

    1x D-sub 25-pin, female
    INTERCOM (PROD, ENG), 4Wire/RTS/Clear-Com, 0 dBu
    PGM 1 system, -20/0/+4 dBu
    TALLY (R, G)
    PREVIEW

  • Remote

    1x 8-pin

  • Trunk

    1x D-sub 9-pin, female
    RS-232C/RS-422A, 1 system

  • LAN

    1x 8-pin

  • Reference

    2x BNC, In: HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 Ohms SD: Black Burst (NTSC: 0.286 Vp-p, 75 Ohms / PAL: 0.3 Vp-p, 75 Ohms), Out: Loop-Through

  • Prompter

    2x BNC, In: VBS, 1.0 Vp-p, 75 Ohms, 1 system, Out: Loop-Through

  • AC In

    1x AC 100 V to 240 V

  • Return In VBS1, VBS2

    2x BNC, 1.0 Vp-p, 75 Ohms, 2 systems

  • Return In SDI1, SDI2

    2x BNC HD SDI, SMPTE ST292-1, 1080: 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF
    720: 59.94p, 50p SD SDI, 480 : 59.94i, 576: 50i

  • HD Prompter In

    1x BNC HD SDI: SMTPE ST292-1, 0.8 Vp-p, 75 Ohms

  • SDI Out (SLOT-1) HD/SD

    4x BNC HD SDI: SMTPE ST292-1, 0.8 Vp-p, 75 Ohms, SD SDI: SMPTE 259M, 0.8 Vp-p, 75 Ohms, HD SDI/SD SDI selectable

  • SDI Out (SLOT-2) 3G/4K/HD Trunk

    4x BNC: 4K/3G SDI 1 to 4: SMPTE ST425-5, Level-A/B, 0.8 Vp-p, 75 Ohms: 2160/59.94p, 2160/50p, 1080/59.94p, 1080/50p, 4K/12G SDI 1, 2: SMPTE ST2082-1, 0.8 Vp-p, 75 Ohms: 2160/59.94p, 2160/50p, HD 3G SDI: SMPTE ST425-1, 0.8 Vp-p, 75 Ohms: 1080/59.94p, 1080/50p, HD SDI 3, 4: SMPTE ST292-1, HD Trunk 1080/59.94i, 1080/50i, 0.8 Vp-p, 75 Ohms, 4K/3G/HD Trunk: Selectable

  • VBS1, 2

    2x BNC, VBS 1.0 Vp-p, 75 Ohms

  • Pix

    1x BNC, VBS/R/G/B (VBS 1.0 Vp-p, 75 Ohms)

  • Sync

    1x BNC, SMPTE 274-1, HD: tri-level sync, 0.6 Vp-p, 75 Ohms SD: composite sync, 0.3 Vp-p, 75 Ohms HD SYNC/SD SYNC selectable

  • Audio Out CH-1, CH-2

    2x XLR 3-pin, male, 0/-20 dBu

General

Jump to...
  • Connector Interface

    Neutrik

  • Signal Format

    4K 2160 : 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720 : 59.94p, 50p SD 480 : 59.94i, 576: 50i

  • Power Requirements

    AC 100 V to 240 V, 2.2A (max), 50/60 Hz

  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions (WxHxD)

    482 x 66 x 366mm (18.98 x 2.60 x 14.41")
    Without Rack Mounting Bracket: 424 x 66 x 366mm (16.69 x 2.60 x 14.41")

  • Weight

    Approx. 6.2kg (13.67 lbs)

  • UPC Code

    027242221048

4 Accessories for Sony HXCU-FB80N 4K/HD Camera Control Unit with Neutrik Connector for HXC-FB80N Camera

  • All Accessories (4)
  • Extended Warranty (4)

About Sony HXCU-FB80N

The HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor CMOS sensors and a 3G-SDI platform capable of 1080/50p and 59.94p signal processing while achieving low power consumption. In combination with the HXC-FB80 HD Camera, HXCU-FB80 CCU offers user-beneficial expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma) for a future-proof solution.

3G-SDI Platform Capable of 1080/50p and 59.94p
The camera head and CCU can comfortably output 3G-SDI signals including 1080/50p and 59.94p. The new processor can also support 1080/23.98 PsF on top of 25 PsF and 29.97 PsF.

Future-Proof 4K Upscalable and HD HDR Support with CCU
Combined with the HXCU-FB80 CCU, the HXC-FB80 camera's output is 4K upscalable and yet HD HDR-capable supporting HLG (Hybrid Log-Gamma). For 4K signal output, the HXCU-FB80 is equipped with a 12G-SDI interface with quad 3G-SDI.

PC-RCP (HZC-RCP5)
In addition to hardware-based remote control units, PC software-based HZC-RCP5 Remote Control is also available.

MCS (Multi Camera System) capabilities
The HXCU-FB80 CCU provides support for up to 24 units, forming a complete MCS system.

Long Cable Extension and Choice of Fiber Interface
Using a hybrid cable with a power supply, the distance between the camera head and CCU can be extended up to 600 m. In case of the combination with HXC-P70, it can extend up to 1,000 m. In addition to the Neutrik connector interface, a LEMO connector interface is also available for the camera head and CCU. Long-distance transmission up to 10km with single-mode fibre cable In the case of connection with a single-mode fibre cable (SMF), transmission can extend up to 10km using a local power supply.

HD Video Trunk and HD Prompter
In addition to the camera captured 1080 50i/59.94i video signal, another video signal can be passed through the same fiber connection line to the CCU side because of the 3G-SDI platform. Further to the traditional analog composite prompter support, the HD-SDI signal can be supplied from the CCU side.

What's in the box:

  • Sony HXCU-FB80N 4K/HD Camera Control Unit with Neutrik Connector
  • Tally Number Plate 1 Set (0 to 9)
  • Operating Guides
  • Sony 1 Year Parts and 90 Day Labor Limited Warranty
