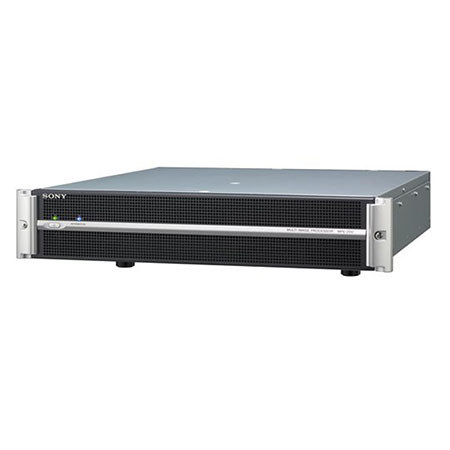

Sony MPE200 Multi Image Processor
See all Sony items

Sony MPE200 Multi Image Processor

SKU: SOMPE200 MFR: MPE200
Be the first to review this itemAsk a Question
$33,249.95
$38,000.00
Save: $4750.05 (13%)
OR
$2771/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamless HD-SDI video switching with the Sony MPE200 for crystal-clear broadcasts.
  • Enjoy low latency video processing, ensuring real-time image precision every time.
  • Use the multi image processor for dynamic displays at events or in studio settings.
  • Connect multiple HD-SDI sources easily to create engaging video presentations.
  • Ensure reliable connection with professional-grade video switchers and components.
  • Experience wide compatibility with various HD formats using this versatile switcher.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Sony MPE200 Multi Image Processor stand out?

The Sony MPE200 Multi Image Processor stands out for its robust real-time signal processing engine, four HD-SDI inputs and outputs, and customizable functionality based on the installed software. It's ideal for professional videography, multimedia projects, and post-production work.

Can I customize the functionality of the Sony MPE200 Multi Image Processor?

Yes, the functionality of the Sony MPE200 Multi Image Processor can be expanded and tailored to your specific needs depending on the software you install.

Is the Sony MPE200 Multi Image Processor suitable for professional video production?

Absolutely. The Sony MPE200 Multi Image Processor is designed to deliver superior performance and exceptional results, making it a key component in any professional video production setup.

What are the input and output capabilities of the Sony MPE200 Multi Image Processor?

The Sony MPE200 Multi Image Processor is equipped with four HD-SDI inputs and four HD-SDI outputs, ensuring seamless and high-quality video transmission.

Reviews about this item

Review Summary

Sony MPE200 Specifications

  • Power requirements

    AC 100 V to 127 V, 200 V to 240 V, 50/60 Hz

  • Current consumption

    100 V to 127 V: 4 A, 200 V to 240 V: 2 A

  • Operating temperature

    41 deg. F to 104 deg. F (5 deg. C to 40 deg. C)

  • NETWORK-1, -2

    RJ-45, 10BASE-T/100BASE-TX/1000BASE-T

  • USB

    USB A (x2)

  • RS-232C

    D-sub 9-pin (male) (x1)
    Data transfer rate: 38.4 Kbps

  • IN 1 to 4 (HD-SDI input)

    BNC (x4), 75 Ohms
    Signal format: SMPTE 292M standard
    Signaling rate: 1.5 Gbps
    Cable length: Approx. 100m (328.08') (when using 5C-FB cable (Belden 1694 equivalent))
    Video: 1080/59.94i, 1080/50i, 1080/23.98PsF

  • OUT1 1 to 4 (HD-SDI output)

    BNC (x4), 75 Ohms
    Signaling rate: 1.5 Gbps
    Video: 1080/59.94i, 1080/50i, 1080/23.98PsF

  • REF IN

    BNC (X1), 75 Ohms termination
    HD tri-level sync / SD black burst

  • Systems Requirements: Operating system

    Windows Vista, 32 bits, English Version, Service Pack 2
    Windows7, 32 bits/64 bits, English Version

  • Systems Requirements: Java

    Version 6 Update 22

  • Systems Requirements: CPU

    1.6 GHz or higher

  • Systems Requirements: RAM

    2 GB or more

  • Systems Requirements: Graphics chip

    Intel or NVIDIA

  • Systems Requirements: Hard disk

    500 MB or more free space

  • Systems Requirements: Display

    1280 x 800 pixels or 1280 x 1024 pixels

  • Systems Requirements: Network ports

    One 1000BASE-T port for connecting the MPE-200 unit

  • Dimensions (W x H x D)

    Excluding protrusion: 17.32 x 3.46 x 19.29" (440 x 88 x 490mm)

  • Weight

    25.35lbs (11.5 kg)

About Sony MPE200

Bring your video production to the next level with the Sony MPE200 Multi Image Processor, a robust and high-performing real-time signal processing engine. Equipped with four HD-SDI inputs and four HD-SDI outputs, this processor ensures seamless and high-quality video transmission, making it an essential tool for professional videographers and multimedia enthusiasts alike.

The Sony MPE200 stands out in the market for its versatility and adaptability. Its functionality can be expanded and customized depending on the software installed, offering users the flexibility to tailor the processor to their specific needs. Whether you're working on live broadcasts, video editing, or post-production, the Sony MPE200 Multi Image Processor is designed to deliver superior performance and exceptional results.

Experience the power and reliability of Sony's advanced technology with the MPE200 Multi Image Processor, a key component in any professional video production setup.

Sony MPE200 Features

  • High performance microprocessing engine
  • Supports various HD video signal formats
  • Two Ethernet for connecting to the MVS-switcher network for signal processing in combination with the MVS switchers and to connect with client PC
  • Store multiple software application and application data on its internal HDD

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamless HD-SDI video switching with the Sony MPE200 for crystal-clear broadcasts.
  • Enjoy low latency video processing, ensuring real-time image precision every time.
  • Use the multi image processor for dynamic displays at events or in studio settings.
  • Connect multiple HD-SDI sources easily to create engaging video presentations.
  • Ensure reliable connection with professional-grade video switchers and components.
  • Experience wide compatibility with various HD formats using this versatile switcher.

What's in the box:

  • Sony MPE200 Multi Image Processor
  • Operating Manual
  • Installation Manual
  • Notice Concerning Software
  • Sony Warranty
