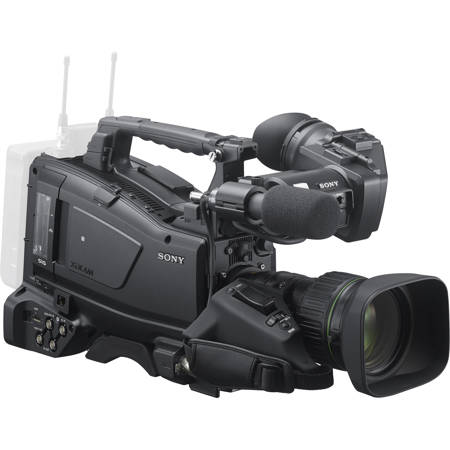

Sony PXW-X400KC XDCAM 2/3" Weight-Balanced Advanced Camcorder Kit, Includes 20x Manual Focus Lens, 3.5" LCD Viewfinder, Stereo Shotgun Mic

SKU: SOPXWX400KC MFR: PXWX400KC
Earn VIP Reward Points

Key Features

  • Capture stunning, broadcast-quality footage with this professional camcorder's 2/3" CMOS sensors.
  • Enjoy versatile shooting with the included 20x manual focus lens, perfect for varied video projects.
  • Achieve optimal audio with the included stereo shotgun mic, ensuring clear sound for every recording.
  • Record in multiple formats, including XAVC Intra, Long, and MPEG HD422, for flexible workflows.
  • Benefit from genlock and timecode I/O, ideal for multi-camera setups and synchronized video shoots.
  • Experience extended battery life for long shoots, up to 240 minutes, minimizing downtime on location.
See More Product Details
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony PXW-X400KC Specifications

General

General

Jump to...
  • Color

    Black

  • Power Consumption

    Approx. 22 W (while XAVC recording, color LCD on)
    Approx. 24 W (while XAVC recording, CBK-VF02 viewfinder and color LCD on)

  • Minimum Illumination

    0.013 lx (F1.4, +42 dB, 16-frame accumulation)

  • Operating Temperature

    0° C to 40° C
    32° F to 104° F

  • S/N Ratio

    62 dB (Y) (Noise Suppression On)

  • Audio Input

    CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable LINE: +4, 0, -3 dBu AES/EBU: AES3 compliant MIC: -70 dBu to -30 dBu

  • Viewfinder

    Yes

Imaging

Jump to...
  • Image Sensor

    2/3"-Type 3-Chip CMOS

  • Sensor Resolution

    Effective: 2.07 Megapixel

  • Image Stabilization

    No

  • Capture Type

    Video Only

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Shutter Speed

    1/2000 to 1/2 Second

  • Shutter Angle

    11.25 to 180°

  • ISO/Gain Sensitivity

    Gain: -3 to 42 dB

  • Minimum Illumination

    0.013 lx (F1.4, +42 dB, 16-frame accumulation)

  • White Balance

    Range: 3200 to 6300K
    Presets: ATW, AWB, Set A, Set B

  • Focal Length

    8.2 to 164mm

  • Zoom

    20x Optical

  • Maximum Aperture

    f/1 to 9

  • Minimum Focus Distance

    35.4" / 90 cm

  • Filter Size

    82 mm

  • Focus Mode

    Automatic, Manual Focus

Video Capture

Jump to...
  • Internal Recording

    AVCHD
    1920 x 1080p from 1 to 59.94 fps24 to 28 Mb/s)
    MPEG-2 4:2:2
    1920 x 1080p from 1 to 59.94 fps (50 Mb/s)
    1280 x 720 from 1 to 59.94 fps (50 Mb/s)
    XAVC-I
    1920 x 1080p from 1 to 59.94 fps (89 to 112 Mb/s)
    1280 x 720 from 1 to 59.94 fps (112 Mb/s)
    XAVC-L
    1920 x 1080p from 1 to 59.94 fps (35 to 50 Mb/s)
    1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
    1280 x 720 from 1 to 59.94 fps (50 Mb/s)

  • Video Output

    SDI/BNC
    1280 x 720 x

  • Broadcast Output

    NTSC with 1000 TV Lines or More

  • Audio Recording

    XAVC Intra: LPCM 24 bits, 48 kHz, 4 channels
    XAVC Long: LPCM 24 bits, 48 kHz, 4 channels
    MPEG HD422: LPCM 24 bits, 48 kHz, 4 channels
    MPEG HD: LPCM 16 bits, 48 kHz, 4 channels
    MPEG IMX: LPCM 16/24 bits, 48 kHz, 4 channels *2
    DVCAM: LPCM 16 bits, 48 kHz, 4 channels

Interface

Jump to...
  • Media/Memory Card Slot

    Single Slot: SD/SDHC/SDXC
    Dual Slot: SxS

  • Internal Storage

    No

  • Video I/O

    1x HDMI Output
    1x BNC (Composite) Output
    2x BNC (3G-SDI) Output

  • Audio I/O

    2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output
    1x XLR 5-Pin Microphone Input
    1x XLR 5-Pin Input/Output

  • Power I/O

    1x Hirose 4-Pin (11 to 17VDC up to 1.8 A) Output
    1x Light 2-Pin Output
    1x XLR 4-Pin (11 to 17VDC) Input

  • Other I/O

    1X Lens 12 pin (x1)

  • Wireless

    No

  • Mobile App Compatible

    No

  • Global Positioning (GPS, GLONASS, etc.)

    GPS

Monitor

Jump to...
  • Display Type

    Primary Monitor: Articulating 3.5" Non-Touchscreen LCD

Viewfinder

Jump to...
  • Type

    Removable Electronic (LCD)

Battery

Jump to...
  • Battery

    Sony BP-U Series

  • Battery Info

    Required, included

  • Battery Type

    BP-GL95B

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    150 x 269 x 332 mm (excluding protrusions, body only)
    6 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)

  • Weight

    7 lb / 3.6 kg (Body Only)

0 Accessories for Sony PXW-X400KC XDCAM 2/3" Weight-Balanced Advanced Camcorder Kit, Includes 20x Manual Focus Lens, 3.5" LCD Viewfinder, Stereo Shotgun Mic

Models
Sony PXW-X400KC XDCAM 2/3" Advanced Camcorder Kit, 20x Manual Focus Lens
$21,630.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony VENICE 2 8K Motion Picture Camera, with OLED EVF and 3x 1TB Memory Cards
$82,626.95

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Sony HDC-3100 Full HD 2/3" CMOS SMPTE Fiber Portable System Camera, Head Only
$24,000.00

Special Order

Generally ships in 7-14 days, subject to availability

Special Features24P, 25P, Genlockable, Interchangeable Lenses, Time Code I/O, XLR Mic InputBuilt-In Microphone, Genlockable, Interchangeable Lens, Time Code I/O, XLR Mic InputGenlockable, Interchangeable Lenses, XLR Mic Input
ResolutionAVCHD8KHigh Definition
Kit StylePro BundlePro BundleBase
ConfigurationCamcorder BundleBody OnlyCamcorder Only
Sensor TypeCMOSCMOSCMOS
Version-Base-
Sensor Size2/3"Full Frame2/3"
Lens Included20x ZoomWithout LensBody Only

About Sony PXW-X400KC

The PXWX400 offers stunning imaging performance up to 1080/60p, optimized weight balance and ergonomics and new networking features that enable field-to-air flexibility like never before. The PMWX400 has the perfect balance of performance and practicality. The enhanced ergonomics and mechanical balance allow for all-day shoulder-mount shooting. This camera puts advanced streaming, sophisticated codecs, the power of 1080/60p imagery, the nuances of 10-bit grayscale and the beauty of 4:2:2 color - all within your reach.

The PXWX400 supports a variety of Sony viewfinders including the QHD LCD CBKVF02 and the Full HD OLED HDVFEL30 and HDVFEL20. The camcorder offers improved network connectivity, with built-in wireless module, embedded RJ45 Ethernet 100B-T connector and Near Field Communication (NFC) function for easy Wi-Fi setup and operation via a mobile or tablet with Sony's Content Browser Mobile application. With a 1.5G HD-SDI input for pool feed recording, the PXWX400 is a powerful addition to the Sony XDCAM Camcorder family. Full HD XAVC-L 50p and 59.94p operations Supports variety of formats including XAVC at 50p and 59.94p.

Sony PXW-X400KC Features

  • Full HD XAVC-L 50p and 59.94p operations Supports variety of formats including XAVC at 50p and 59.94p.
  • Low power and ergonomic design Designed to minimize power consumption, while lighter lens grip reduces front weight and helps reduce on the load on the right-arm.
  • Improved network connectivity features include built-in wireless module, RJ45 Ethernet 100B-T connection and NFC function (planned to be available June 2016 via free firmware upgrade), for easy Wi-Fi setup.
  • The 1.5G HD-SDI input allows pool feed recording.
  • Three 2/3-inch type CMOS image sensors from Sony, the world leader in camera image sensors
  • Full HD 1080/60p resolution in all three sensors, plus Full HD 1080/60p recording with XAVC
  • Excellent sensitivity: F12 in 1080/60i mode, F13 in 1080/50i mode
  • Superb picture clarity: 62 dB signal-to-noise ratio
  • Perfect front-rear balance optimized for use with popular ENG lenses; achieves ideal shoulder mount ergonomics; shoulder pad adjusts for a custom fit
  • 960 x 540 color LCD monitor with 1,555,200 dots for beautifully detailed menus and monitoring
  • Powerful networking includes wireless streaming with Sony's proprietary Quality of Service (QoS), de facto standard MPEG TS streaming, FTP transfers, RJ-45 LAN interface, Wi-Fi remote control from a smartphone or tablet and, in a future firmware upgrade, NFC one-touch communication
  • Sony's Quality of Service (QoS) wireless streaming maximizes picture quality on a single, affordable cellular channel; transmits to Sony's PWS-100RX1 receiver (QoS streaming via Wi-Fi is to be offered in a future firmware upgrade, expectedearly 2016)
  • De facto standard MPEG TS wireless streaming to compatible receivers and PCs
  • RJ-45 LAN interface for wired 100Base-TX Ethernet, particularly useful for connecting to third-party bonded cellular transmitters
  • Smartphone remote control via Sony's Content Browser Mobile app for Android or iOS devices; remote viewfinder, remote content browsing and playback via Wi-Fi from a smart phone or tablet
  • NFC one-touch communication with compatible smartphones and tablets (in future firmware upgrade, expected early 2016)
  • ONLINE button for easy network operations; depending on the context, triggers Network Client Mode on/off, Auto Clip Transfer on/off, or Streaming on/off
  • XAVC Intra and XAVC Long recording at up to 1080/60p; combines superb picture quality with money-saving data rates as low as 25 Mbps
  • Two SxS card slots compatible with Sony's high-speed, high-reliability professional media cards
  • 10-bit recording with XAVC Intra and XAVC Long codecs retains nuanced grayscale that stands up well to post production
  • 4:2:2 color captures twice as much color information as conventional 4:1:1 or 4:2:0 sampling, for higher resolution, cleaner compositing
  • Choice of codecs includes XAVC Intra, XAVC Long, MPEG2 HD 422, MPEG2 HD 420, MPEG IMX, and DVCAM (MXF wrapper) recording
  • Proxy Recording on an SD card slot creates a lightweight asset for fast file transfers from the field to the station or production office
  • Pool Feed input for events where only one camera is permitted in the room; 1.5G SDI input
  • Interval recording for powerful time lapse effects
  • 50-pin interface supports live production via Sony's CA-FB70 fiber adaptor or CA-TX70 triax adaptor, sold separately
  • 26- and 20-pin viewfinder interfaces support a full range of Sony's viewfinders,sold separately; these include spectacular, OLED viewfinders with Full HD resolution: the HDVF-EL20 and HDVF-EL30
  • GPS module captures locations as metadata in HD recordings
  • Standard Gamma, HyperGamma and User Gamma modes for powerful control of grayscale and effective highlight handling
  • AES/EBU digital audio inputs
  • 5-pin XLR audio output
  • Wireless mic receiver slot for Sony's DWX Series receivers, sold separately; enables the camera to control mic attenuator and low-cut filter; enables viewfinder display of transmitter battery status
  • x2, x3, x4 Digital Extender gets you even closer to the subject with no sacrifice in sensitivity
  • Low power consumption, just 22 Watts, body only
  • Kit Highlights: PXWX400KC Supplied with a 20X manual focus zoom lens, 3.5-inchLCD viewfinder, and stereo shotgun microphone.

Warranty Information

This product has a limited warranty of 24 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning, broadcast-quality footage with this professional camcorder's 2/3" CMOS sensors.
  • Enjoy versatile shooting with the included 20x manual focus lens, perfect for varied video projects.
  • Achieve optimal audio with the included stereo shotgun mic, ensuring clear sound for every recording.
  • Record in multiple formats, including XAVC Intra, Long, and MPEG HD422, for flexible workflows.
  • Benefit from genlock and timecode I/O, ideal for multi-camera setups and synchronized video shoots.
  • Experience extended battery life for long shoots, up to 240 minutes, minimizing downtime on location.

What's in the box:

  • Sony PXW-X400KC XDCAM 2/3 " Weight-Balanced Advanced Camcorder
  • Shoulder Strap
  • Cold Shoe Kit
  • USB Wireless LAN Module (IFU-WLM3)
  • 20x Manual Focus Lens
  • 3.5 " LCD Viewfinder
  • Stereo Shotgun Mic
  • Operation Guide
  • Operation Manual (CD-ROM)
  • Sony Warranty
