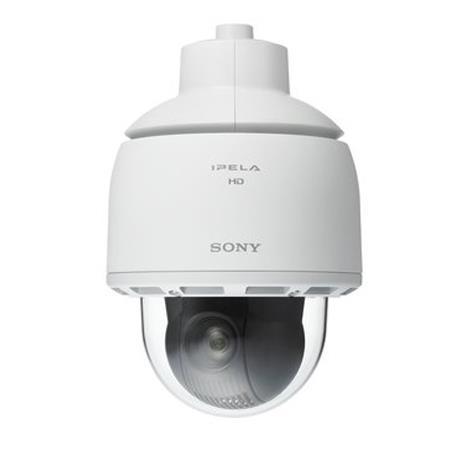

Sony SNC-ER585 3.27MP 1080p Unitized Outdoor Network Rapid PTZ Dome Camera
See all Sony items

Sony SNC-ER585 3.27MP 1080p Unitized Outdoor Network Rapid PTZ Dome Camera, 30x Optical Zoom, 30 fps, JPEG/H.264/MPEG-4

SKU: SOSNCER585

This item is no longer available.

Recommended Alternatives

Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, White
$8,350.00
Sony SRG-X120: Picture 1 regular
SRG-X120 12x PTZ Camera, Includes NDI|HX License, White
$3,197.00
Sony SRG-XB25: Picture 1 regular
Sony SRG-XB25 4K UltraHD NDI|HX/HDMI/IP 25x PTZ Camera, White
$2,549.00
Sony SNC-EM600: Picture 1 regular
Sony SNC-EM600 1.37MP 720p HD Indoor Day/Night Minidome Network Camera
$726.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-ER585 Specifications

  • Image Sensor

    1/2.8-type Exmor CMOS

  • Image Sensor(Number of Effective Pixels)

    Approx. 3.27 Megapixels

  • Minimum Illumination

    50 IRE:
    Color: 1.7 lx (F1.6, shutter 1/30 s, AGC ON, 50 IRE)
    B/W: 0.3 lx (F1.6, shutter 1/30 s, AGC ON, Night Mode, 50 IRE)

    30 IRE:
    Color: 1.2 lx (F1.6, shutter 1/30 s, AGC ON, 30 IRE)
    B/W: 0.18 lx (F1.6, shutter 1/30 s, AGC ON, Night Mode, 30 IRE)

  • Dynamic Range

    86dB with DynaView Technology (calculated)

  • S/N Ratio

    More than 50dB (Gain 0dB)

  • Gain

    Auto/Manual (-3 to +28dB)

  • Shutter Speed

    1/1 s to 1/10000 s

  • Sync System

    Internal synchronization

  • Exposure Control

    Full auto, Shutter priority, Iris priority, Manual

  • White Balance

    Auto, Advanced Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapor lamp

  • Lens

    Auto-focus Zoom Lens

  • Powered Zoom

    Yes

  • Zoom Ratio

    Optical zoom 30x, Digital zoom 12x, Total zoom 360x

  • Powered Focus

    Yes

  • Horizontal Viewing Angle

    59.5 to 2.1 deg.

  • Focal Length

    f = 4.3 to 129.0mm

  • F-Number

    F1.6 to F4.7

  • Minimum Object Distance

    300mm (wide) to 1200mm (tele)

  • Pan/Tilt Angle

    360 deg. endless rotation/ 210 deg.

  • Pan/Tilt Speed

    300 deg./s (max.)/300 deg./s (max.)

  • Preset Position

    256

  • Tour

    5

  • Day/Night

    Yes (True D/N)

  • Wide-D

    Yes (DynaView)

  • Noise Reduction

    Yes

  • Image Stabilizer

    Yes

  • Image: Codec Image Size (H x V)

    1920 x 1080, 1680 x 1056, 1280 x 1024, 1440 x 912, 1280 x 960, 1376 x 768, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192

  • Image: Video Compression Format

    H.264, MPEG-4, JPEG

  • Image: Codec Streaming Capability

    Dual streaming

  • Image: Maximum Frame Rate

    H.264: 30fps (1920 x 1080)
    MPEG-4: 30fps (1440 x 912)
    JPEG: 30fps (1440 x 912)

  • Audio Compression Format

    G.711/G.726

  • Scene Analytics: Motion detection

    Yes

  • Scene Analytics: Rule-based Filter

    DEPA

  • Network Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)

  • Network ONVIF Conformance

    Yes (Profile S)

  • Network Number of Clients

    5

  • Network Authentication

    IEEE802.1X

  • Interface: Line Output

    Mini jack (monaural), Maximum output level: 1Vrms

  • Interface: Network Port

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Sensor Input

    x2 (normally open/normally closed configurable)

  • Interface: Alarm Output

    x 1, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)

  • Interface: Microphone Input

    Mini jack (monaural)

  • Interface: Card Slots

    SD Card x1

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition

  • Processor

    Intel Corei7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
    Firefox Ver. 3.5 (Plug-in free viewer only)
    Safari Ver. 4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Power Requirements

    AC 24 V

  • Power Consumption

    Heater ON: 76W max., Heater OFF: 26W max.

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • Vandal Resistant

    IK10

  • Safety Regulations

    UL2044, IEC60950-1 (CB)
    FCC (Class A)

  • Ingress Protection

    IP66

  • Operating Temperature

    -40 to +140 deg. F / -40 to +60 deg. C

  • Starting Temperature

    -40 to +140 deg. F / -40 to +60 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (W x H x D)

    Dia. 8.75 x 12.87" / 222.25 x 326.9mm

  • Weight

    Approx. 9.5lbs / 4.31kg

4 Accessories for Sony SNC-ER585 3.27MP 1080p Unitized Outdoor Network Rapid PTZ Dome Camera, 30x Optical Zoom, 30 fps, JPEG/H.264/MPEG-4

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 2 Year
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 2 Year
$169.00
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 2 Year Plan
$179.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 3 Year Plan
$211.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 3 Year Plan
$279.99
Recommended

About Sony SNC-ER585

1080p Full HD Rapid Dome camera with 1920 x 1080 resolution, 1/2.8 type Exmor CMOS imager, 30x optical zoom, 3 codecs (JPEG/MPEG-4/H.264) and dual-streaming capability.

Sony SNC-ER585 Features

  • Dynamic range of 86 dB (calculated) achieved with DynaView technology
  • 30x optical and total zoom ratio of 360x with 12x digital zoom
  • Excellent 1080p Full HD picture quality at 30 fps (1920 x 1080 maximum resolution)
  • The Exmor CMOS sensor delivers high-quality images with low noise
  • Three codecs (H.264, MPEG-4, JPEG) and dual-streaming capability
  • Operating temperature from -40deg.F to +140deg.F
  • High-speed 360 degrees endless rotation
  • Above-the-horizon tilt - 15deg. tilt-up, Total tilt range - 210deg. (15 degrees above horizon)
  • DynaView - Wide-D technology to handle various lighting conditions in a scene
  • IP66 rated - suitable for virtually any outdoor location installation
  • IK10-rated vandal-resistant feature to protect the camera from destructive behaviors
  • True Day/Night function allows user-provided IR illuminators in night mode
  • DEPA Intelligent Video Analytics - alarm sending based on built-in motion based filters
  • Image Stabilizer to help minimize the effect of camera shake or vibration, avoiding blurry images
  • SD memory card slot for an on-board recording capability
  • Built-in HTML viewer compatible with most Smartphones
  • ONVIF (Open Network Video Interface Forum) Profile S conformance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 30x optical and total zoom ratio of 360x with 12x digital zoom
  • Above-the-horizon tilt - 15deg. tilt-up, Total tilt range - 210deg. (15 degrees above horizon)
  • Dynamic range of 86 dB (calculated) achieved with DynaView technology
  • Excellent 1080p Full HD picture quality at 30 fps (1920 x 1080 maximum resolution)
  • High-speed 360 degrees endless rotation
  • Operating temperature from -40deg.F to +140deg.F

What's in the box:

  • Sony SNC-ER585 3.27MP 1080p Unitized Outdoor Network Rapid PTZ Dome Camera
  • CD-ROM (User's Guide/Supplied Programs)
  • Installation Manual
  • Dome Cover
  • Top Sunshade
  • Coupling
  • Wire Fixing Belt
  • 2x Wire Bracket
  • Bolts
  • Power Supply Connector
  • I/O Harness
  • Harnes Band
  • Band Mount
  • Sony Warranty
