Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 25UC: 536 to 608MHz
See all Sony items

Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 25UC: 536 to 608MHz

SKU: SOUWPD2625 MFR: UWP-D26/25
Be the first to review this itemAsk a Question
$799.99
OR
$134/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Sony wireless microphone system, ideal for videography.
  • Enjoy a wide 536-608 MHz range for reliable, interference-free wireless performance on camera.
  • Achieve professional sound quality with low latency, perfect for interviews and live streaming.
  • The UWP-D26 combo mic system includes both bodypack & plug-on transmitters for ultimate flexibility.
  • Extend your recording time with long battery life, ensuring you never miss a crucial moment on set.
  • Simple setup and durable design make this wireless microphone a must-have for any content creator.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DALE S : PriceGerard M : TV channel clear, need ENG capture

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony UWP-D26 Specifications

URX-P40

URX-P40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Reception Type

    True diversity method

  • Antenna Type

    1/4 Lambda wavelength wire antenna (angle-adjustable)

  • Carrier Frequency

    25UC : 536.125MHz to 607.875MHz (UHF-TV channels 25 to 36)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60dB (1kHz sine wave, 5kHz modulation)

  • Distortion (T.H.D)

    0.9% or less (1kHz sine wave, 5kHz modulation)

  • Audio Delay

    Approx. 0.35 ms (analog output)
    Approx. 0.24 ms (digital output)

  • Audio Output Connector

    3.5mm diameter 3-pole locking mini jack, external connection

  • Audio Output Level

    -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
    -20 dBFS (external connection, digital output, 0dB audio output level)
    -50 dBFS (external connection, analog output, 0dB audio output level)

  • Analog Audio Output Adjustment Range

    -12dB to +12dB (3dB step)

  • Headphone Output Connector

    3.5mm diameter mini jack

  • Headphone Output Level

    Max. 10mW (16 Ohms)

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery Life

    Approx. six hours
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F) DISPLAY MODE set to AUTO OFF

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

UTX-B40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Antenna Type

    1/4 Lambda wavelength wire antenna

  • Carrier Frequency

    25UC : 536.125MHz to 607.875MHz (UHF-TV channels 25 to 36)

  • RF Output Power

    30mW/5mW selectable

  • Capsule Type

    Electret condenser

  • Directivity

    Omni-directional

  • Input Connector

    3.5mm diameter 3-pole locking mini jack

  • Reference Audio Input Level

    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
    +4 dBu (LINE input)

  • Audio Attenuator Adjustment Range

    0 dB to 27 dB (3dB steps)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery life

    Approx. 8 hours with output power of 30 mW
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F)

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

UTX-P40

Jump to...

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Carrier Frequency

    25UC : 536.125MHz to 607.875MHz (UHF-TV channels 25 to 36)

  • RF Output Power

    40 mW/5 mW selectable

  • Input Connector

    XLR-3-11C type (female)

  • Reference Audio Input Level

    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)

  • Audio Attenuator Adjustment Range

    0 dB to 48 dB (3 dB steps)

  • Frequency Response

    23 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Battery Life

    During +48V OFF: Approx. 7 hours with output power of 40 mW
    During +48V ON and ECM-673 connection: Approx. 6 hours with output power of 40 mW (Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F))

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage/Transport Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

General

Jump to...

  • Dimensions (WxHxD)

    URX-P40: 63 x 70 x 31mm (2.48 x 2.76 x 1.22") (excluding antenna)
    UTX-B40: 63 x 73 x 19mm (2.48 x 2.87 x 0.75") (excluding antenna)
    UTX-P40: 38 x 98 x 38mm (1.50 x 3.86 x 1.50") (including the audio input connector)

  • Weight

    URX-P40: Approx. 131g (4.62 oz) (excluding batteries)
    UTX-B40: Approx. 83g (2.93 oz) (excluding batteries)
    UTX-P40: Approx. 139 g (4.9 oz) (excluding batteries)

Other

Jump to...

  • UPC Code

    027242928633

Models
Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 25UC: 536 to 608MHz

Sony UWP-D26 Camera-Mount Wireless Combo Microphone System, 25UC: 536 to 608MHz

SKU: SOUWPD2625

MFR: UWP-D26/25

$799.99

In Stock

Sony UWP-D21 Camera-Mount Omni Lavalier Microphone System, 25UC: 536 to 608MHz

Sony UWP-D21 Camera-Mount Omni Lavalier Microphone System, 25UC: 536 to 608MHz

SKU: SOUWPD2125

MFR: UWP-D21/25

$599.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony UWP-D22 Camera-Mount Cardioid Handheld Mic System, 25UC: 536 to 608MHz

Sony UWP-D22 Camera-Mount Cardioid Handheld Mic System, 25UC: 536 to 608MHz

SKU: SOUWPD2225

MFR: UWP-D22/25

$599.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Connector1/8" TRS Locking1/8" TRS Locking1/8" TRS Locking
Frequency536-608 MHz536-608 MHz536-608 MHz
Signal TypeAnalogAnalog, DigitalAnalog
Stereo / MonoMonoMonoMono

About Sony UWP-D26

Are you a content creator seeking to capture high-quality audio swiftly and reliably The UWP-D26 Camera-Mount Wireless Combo Microphone System, operating in the 536 to 608MHz frequency range, is your ideal solution. This system is designed to meet the rising demand for superior audio quality in the era of high-resolution video production.

The UWP-D26 package is a comprehensive audio solution, including the UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter, and URX-P40 receiver, along with essential accessories. This system is perfect for a range of applications, from electronic news gathering (ENG) and electronic field production (EFP) to documentaries and wedding videography.

The UWP-D26 system stands out with its advanced digital audio processing technology by Sony, ensuring high-quality sound with improved transient response performance. This technology allows for direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor. This bypasses A/D and D/A conversion stages, further enhancing sound quality.

The UWP-D26 system offers seamless integration with compatible Sony camcorders. When used with the SMAD-P5 Multi Interface shoe adaptor, audio information such as RF level meter, audio mute status, and transmitter low battery alert can be displayed in the camera's viewfinder. The wireless receiver can also draw power from the camera, allowing synchronized power on/off between the camera and receiver for efficient power management.

Sony's unique NFC SYNC feature simplifies the process of secure channel setting between the transmitter and receiver, making frequency setting fast and easy. The compact and lightweight design of the receiver makes the UWP-D26 system an ideal partner for small camcorders and interchangeable lens digital cameras, ensuring superior mobility for news coverage, documentaries, weddings, and remote production.

Sony UWP-D26 Features

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 and UTX-P40 transmitters from URX-P03, URX-P03D and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line input
  • +48V power supply (plug-on transmitter)
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply (URX-P40 only)
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)
  • Includes ECM-V1BMP lavalier microphone

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with this Sony wireless microphone system, ideal for videography.
  • Enjoy a wide 536-608 MHz range for reliable, interference-free wireless performance on camera.
  • Achieve professional sound quality with low latency, perfect for interviews and live streaming.
  • The UWP-D26 combo mic system includes both bodypack & plug-on transmitters for ultimate flexibility.
  • Extend your recording time with long battery life, ensuring you never miss a crucial moment on set.
  • Simple setup and durable design make this wireless microphone a must-have for any content creator.

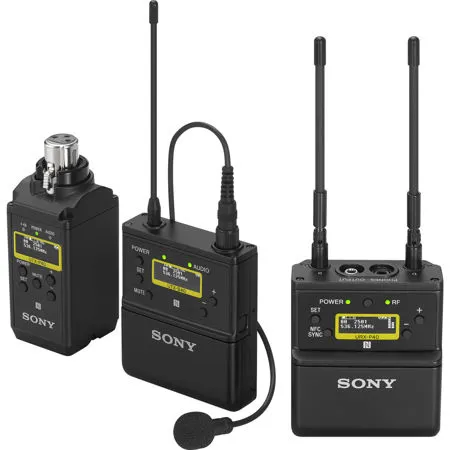

What's in the box:

  • Sony URX-P40 Camera-Mount Wireless Receiver
  • UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
  • UTX-P40 Wireless Plug-On Transmitter
  • Mic Clip
  • Windscreen
  • 2x Belt Clips
  • SMAD-P4 Shoemount Adapter for URX-P40 Receiver
  • Soft Case for Plug-On
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable
  • Sony 1 Year Warranty
