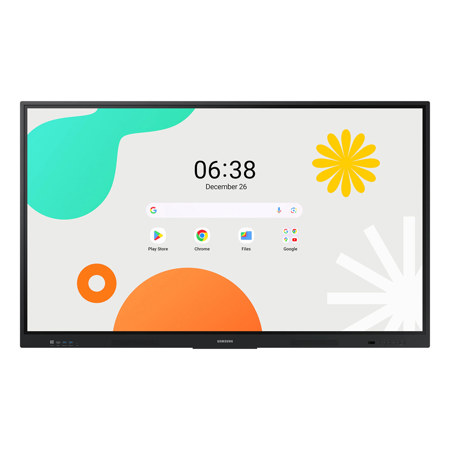

Samsung WAF Series WA65F 65" 16:9 4K Ultra HD IPS LCD Touchscreen Interactive Display

SKU: SSLH65WAFWLG MFR: WA65F
Earn VIP Reward Points

Key Features

  • Experience stunning 4K Ultra HD resolution on the 65" IPS LCD display for vibrant visuals.
  • Engage effortlessly with the 40-point touch interactive display, perfect for presentations and collaboration.
  • Enjoy seamless connectivity with built-in Wi-Fi 5 and Bluetooth for all your wireless needs.
  • Benefit from the intuitive Android 14 operating system, offering a familiar and user-friendly experience.
  • Utilize the versatile HDMI and USB ports for easy integration with your existing devices and peripherals.
  • Rely on the robust design and ENERGY STAR certification for dependable and energy-efficient performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Samsung WAF Series Specifications

Display

Display

Jump to...
  • Brightness (Typ)

    400 nit

  • Contrast Ratio

    1,200:1

  • Screen Size

    65" (165.1cm)

  • Resolution

    4K Ultra HD (3840 x 2160)

  • Viewing Angle (H/V)

    178/178

  • Panel Type

    IPS

  • Pixel Pitch

    372(H)x372(V)

  • Response Time

    8ms

  • Color Gamut

    72%

  • Glass Haze

    25%

  • H-Scanning Frequency

    135 kHz

  • Maximum Pixel Frequency

    78MHz

  • V-Scanning Frequency

    60Hz

  • Operation Time Support

    12/7

Connectivity

Jump to...
  • Bluetooth

    Yes

  • Wi-Fi

    Wi-Fi 5: 802.11ac

  • External Control

    Touch Input: RS232C In,RJ45 In

  • HDMI In

    2x

  • USB

    4x (2x 2.0 , 2x 3.0)

  • Audio In/Out

    Stereo Mini Jack

  • Video Out

    Yes

  • RS232 In

    Yes

  • RJ45 In

    Yes

  • Version of HDMI and HDCP

    2.1

  • Internal Sensor

    Eco Sensor

  • Ethernet speed

    1 Gbps

  • WIFI Protocol

    Wi-Fi 5 (802.11ac)

  • Power Supply

    AC100-240V 50/60Hz

  • Power Consumption (Standby)

    0.5

  • Power Consumption (On Mode)

    409 W

  • Power Consumption (Sleep Mode)

    0.5 W

  • Max[W/h]

    286

  • Rating[W/h]

    371

  • Typical[W/h]

    172

  • Type

    Internal

Features

Jump to...
  • Key

    EDLA Certified Android Model (Google Play supported)

  • Speaker Type

    Bulit in Speaker (15W X 2CH)

  • H/W

    Touch Overlay(IR), Front Connectivity, OPS I/F Support, Eco Sensor, Wi-Fi/BT embedded

  • Orientation

    Landscape

  • Touch Pen Type

    Passive Pen

  • Object Recognition Range

    Front Pen: 3mm
    Back Pen: 8mm
    Eraser: >=9 sq. cm

  • Touch Response Time

    <=5ms

  • Touch Technology

    IR

  • Drawing Speed (Touch latency)

    <=45ms

  • Thickness

    3.2T

  • Hardness

    Mohs 5

  • # of Touch

    40 points

  • Object Recognition Range (Minimum)

    2mm

Internal Player

Jump to...
  • Processor

    A73 X 4 + A53 X 4

  • Storage

    64GB

  • Operating System

    Android 14

  • RAM

    8GB

Mechanical

Jump to...
  • VESA Mount

    600 x 400mm

  • Protection Glass

    Yes

  • Stand Type

    Wall Mount

  • Media Player Option Type

    OPS Slot support

  • Rotation

    Landscape only

  • Power Cable Length

    9.8' (3m)

  • Bezel Width

    14mm

  • Frame Material

    Aluminum

Operation Conditions

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Humidity

    10 - 80%, non-condensing

  • OS Version

    Android-14

  • Brightness (Typ.)

    400cd/sq. m

  • Viewing Angle(H/V)

    178:178

Connectivity / Sounds

Jump to...
  • Wi-Fi / BT

    Yes (Keyboard/Mouse)

Input/Output

Jump to...
  • Audio

    1x (Stereo Mini Jack)

  • Video

    HDMI 2 (Rear 1, Front 1) USB C (Front), OPS
    HDMI Out (Rear)

  • Touch Out

    Touch Out 2 (Front 1, Rear 1)

  • First screen

    Home UI

  • Apps

    Playstore, Chrome, YouTube, Google Drive, Note app, Screenshare, Finder, etc

  • WebRTC

    Yes

  • Screen Share

    Yes

Certification and Compliance

Jump to...
  • Environment

    ENERGY STAR

  • Security

    WFA/WPA/WPA2/WPA3 personal/ WPS2.0

  • EMC

    FCC CFR Title 47, Part 15, Subpart B/EN55032:2015+A11:2020

  • Safety

    IEC62368-1/UL62368-1/IEC60950-1 / IS13252

General

Jump to...
  • Color

    Black

  • Country of Origin

    China

  • Dimensions (W x H x D)

    58.4 x 35.1 x 3.5" (148 x 89.15 x 8.89cm)

  • Weight

    79.81 lbs (36.2kg)

  • UPC Code

    887276927305

About Samsung WAF Series

Unlimited learning possibilities
The interactive display WAF series, powered by Android OS 14 and Octa-Core CPU, enhances education with Google services and a seamless annotation function. Enables instantaneous note-taking, empowering students to collaborate independently in separate zones, ushering in a new era of interactive education.

An intuitive UX that fits your needs: Powered by Android
The WAF series offers familiarity to its users. Compatible with other Android devices, its variety of widgets and easily-customizable home screen provide more flexibility to build an environment suited for various learning needs.

Effortless access to Google services: EDLA Certification
With an EDLA certification, the WAF series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.

Take notes instantly, anywhere on the screen: Annotation On
The WAF series lets users take notes any time with a simple press of the always-visible Annotation button. Whether watching a video or viewing any content, users can seamlessly annotate without interruptions, enhancing productivity by avoiding the need to capture images first.

Write independently, learn together: Split Note Mode
The upgraded Note app allows up to four independent note zones on a single page, enabling multiple students to use the whiteboard simultaneously. Students can work in their own zones without affecting others, fostering both collaboration and individual learning.

Display multiple screens simultaneously: Easy Multi-tasking
The split screen and multi-window enable teachers to easily display information and multi-task. This flexibility provides convenient access to all the screens required to create engaging learning environments.

Smart, wireless sharing on multiple devices: Powerful Screen Sharing
The WAF series supports screen mirroring for up to nine devices, increasing student engagement. This feature ensures every student is included and engaged as content can be shared on both the large display and individual devices. It can be used on iOS, Mac, Windows, Android, or Chrome OS.

Better interaction with best-in-class multi-touch: Multi-point Touch Drawing
Multiple users can write and draw on the whiteboard at the same time with the display's advanced multi-touch capabilities. Up to 40 simultaneous touchpoints are possible, allowing large groups of students and teachers to collaborate and learn together in an efficient, streamlined way.

Switch pens without changing settings: Dual Pen
The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nib applied, users can effortlessly switch between two different colors on the front and back side of the pen - without needing to change the settings or interrupt the flow of the lesson.

Front panel controls for intuitive navigation: Quick Access Controls
The WAF includes front-facing physical controls for quick access to frequently used functions. These intuitive controls allow users to operate the interactive display more efficiently, enhancing the overall user experience.

Connectivity

Convenient connectivity with USB-C: 3-in-1 USB-C port
Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.

Accessible content for any class size: HDMI out
With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit in the classroom.

Use your favorite OPS in the classroom: OPS (Open Pluggable Specification)
The OPS slot in the WAF series can transform the interactive display into a Windows device, eliminating the need for an extra PC or devices. Users will have access to all the features and functionalities of a standard computer, with which they are familiar, directly on the display.

Seamless management, efficient operations: Device Management Solution
The WAF series provides a device management solution essential for advanced educational environments. This solution optimizes the remote management of whiteboard settings and applications, guaranteeing operational efficiency and stability.

Notify across multiple devices, immediately: Advanced Messaging
Send important messages across campuses, classrooms and public spaces immediately. Urgent communications are displayed on interactive whiteboards so students and other personnel are alerted in real time.

Seamless learning in every environment: Superior Durability
The WAF series protects against electrical surges by using a glass fuse and 500V(DC) capacitor that absorbs instant spikes in voltage. The anti-humidity glue applied to the critical area of the chipset is a valuable tool for schools in highly humid or rainy climates.

Samsung WAF Series Features

  • Samsung's 65" Interactive Display WAF series powered by Android OS 14 enhances education with its easily-customizable home screen
  • Compatible with other Android devices, display offers familiarity with standard functions
  • EDLA-certified WAF series supports Google Play, YouTube, and other Google services
  • OPS slot transforms the display into a Windows device when needed

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning 4K Ultra HD resolution on the 65" IPS LCD display for vibrant visuals.
  • Engage effortlessly with the 40-point touch interactive display, perfect for presentations and collaboration.
  • Enjoy seamless connectivity with built-in Wi-Fi 5 and Bluetooth for all your wireless needs.
  • Benefit from the intuitive Android 14 operating system, offering a familiar and user-friendly experience.
  • Utilize the versatile HDMI and USB ports for easy integration with your existing devices and peripherals.
  • Rely on the robust design and ENERGY STAR certification for dependable and energy-efficient performance.

What's in the box:

  • Samsung WAF Series WA65F 65" 16:9 4K Ultra HD IPS LCD Touchscreen Interactive Display
  • Power Cord
  • Remote Control
  • HDMI Cable
  • 2x Touch Pen
  • USB Cable
  • User Manual
  • Samsung 3 Year Limited Warranty
