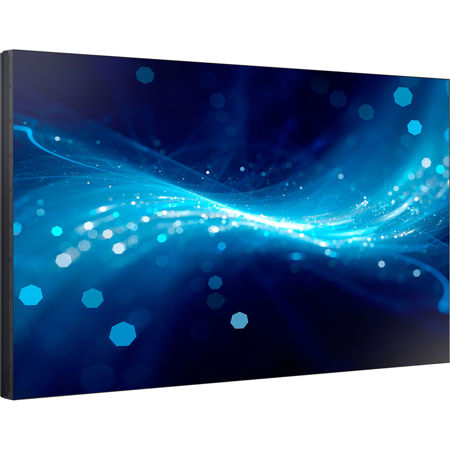

Samsung UH55F-E 55" Full HD Narrow Bezel Video Wall Display, 1920x1080

SKU: SSUH55FE

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung UH55F-E Specifications

Panel
  • Diagonal Size

    55" (139.7cm)

  • Type

    D-LED DID

  • Resolution

    1920 x 1080 (Full HD)

  • Pixel Pitch (H x V)

    0.63 x 0.63mm

  • Active Display Area (H x V)

    1209.6 x 680.4mm

  • Brightness (typical)

    700 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle(H/V)

    178/178

  • Response Time(G-to-G)

    8ms

  • Display Colors

    8bit - 16.7M

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    25% (Outer Haze 23%)

Display

Jump to...
  • Dynamic C/R

    MEGA DCR

  • H-Scanning Frequency

    30 - 81kHZ

  • V-Scanning Frequency

    48 - 75HZ

  • Maximum Pixel Frequency

    148.5MHz

Connectivity

Jump to...
  • Input

    RGB: Analog D-SUB, DVI-D, Display Port 1.2
    Video: HDMI 2.0 (2)
    HDCP: HDCP 2.2
    Audio: Stereo mini Jack
    USB: Only F/W upgrade

  • Output

    RGB: DP1.2(Loop-out)
    Audio: Stereo mini Jack
    External Control: RS232C(in/out), RJ45
    External Sensor: Detachable type(IR, Ambient)
    Tuner: No

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max[W/h]: 297.0
    Typical[W/h]: 180.0
    BTU (Max): 1013.0
    Sleep mode: Less than 0.5W
    Off mode: Less than 0.5W

Operation

Jump to...
  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Humidity

    10 - 80%

Certification

Jump to...
  • Safety

    UL (USA) : UL 60950-1

  • EMC

    FCC (USA) FCC Part 15, Subpart B class A

Mechanical

Jump to...
  • VESA Mount

    600 x 400mm

  • Bezel Width

    1.15mm(U/L), 0.55mm(R/B)

  • Dimensions

    47.7 x 26.8 x 3.79" (1211.6 x 682.4 x 96.3mm)

  • Weight

    46.3 lb (21.0kg)

  • UPC Code

    8806088273440

About Samsung UH55F-E

After extensive research and development, Samsung presents the UH55F-E 55" Full HD Narrow Bezel Video Wall Display. This premium video wall display is designed to deliver a deeper visual impact with its ultra-thin bezel-to-bezel width of just 1.7mm. This minimalistic design reduces visual distractions, allowing the stunning imagery to take center stage and captivate your audience.

The UH55F-E is more than just a display; it's a powerful tool for content presentation. It's the first in the industry to support up to a 5x5 wall configuration, utilizing DisplayPort 1.2 and HDMI ports. This allows the display to project Ultra High Definition (UHD) content across multiple screens simultaneously, creating a near-seamless viewing experience.

Equipped with a non-glare panel, the UH55F-E ensures image clarity in any lighting environment. The panel evenly distributes light across the screen, eliminating glare and maintaining vibrant, accurate content. This makes it an ideal choice for businesses looking to create memorable content presentations.

Samsung's multi-step factory calibration process ensures uniform brightness and color across multiple displays. This rigorous calibration, combined with Samsung's Color Expert Pro software, allows users to manage brightness and color uniformity with ease.

The UH55F-E also features Samsung's Color Expert Pro Mobile solution, providing quick and easy video wall calibration through a mobile camera. This intuitive solution allows even non-expert users to adjust the white balance of up to a 5x5 video wall simultaneously, without the need for additional equipment.

Engineered for long-term performance, the UH55F-E is built with durable panels that offset backlight discrepancies and protect the display against heat and dust exposure. This ensures continuous, reliable performance, reducing maintenance costs.

Designed for 24/7 operation, the UH55F-E delivers vivid and reliable content in various indoor environments. Its elevated contrast ratios and brightness produce an engaging viewing experience, meeting every business need.

The UH55F-E comes with a Quad Core CPU and Signage Player Box, allowing for multi-source switching and a media player in a single box. This, combined with the embedded Samsung SMART Signage Platform, transforms video walls for faster information processing and easy content management with the MagicINFO solution.

Installation is made easy with user-friendly wall mounts, designed specifically for the dimensions of the video wall. This allows for easy installation and adjustment, saving you time and effort.

Key features of the UH55F-E 55" Full HD Narrow Bezel Video Wall Display include Extreme Narrow Bezel, ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall (15x15(OSD)), Video Wall Daisy Chain (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Smart F/W update, and Clock Battery (80hrs Clock Keeping).

Samsung UH55F-E Features

  • Extreme narrow bezel (B-to-B 1.7mm) and UHD resolution for virtually seamless, life-like viewing experience
  • Uncompromising color accuracy and brightness uniformity through precise calibration and superb panel technology
  • Daisy Chain through Display Port (DP) 1.2 or HDMI port, no need for high performance graphic card
  • Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount included

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Ultra-thin 1.7mm bezel-to-bezel width for near-seamless viewing experience
  • Non-glare panel maintains vibrant, accurate content in any lighting environment
  • Samsung's multi-step factory calibration process ensures uniform brightness and color
  • Engineered for long-term performance with durable panels resistant to heat and dust exposure

What's in the box:

  • UH55F-E 55 " Narrow Bezel Video Wall Display
  • DP Cable
  • Stereo to DB9 Cable
  • Power Cord
  • Remote Controller with Batteries
  • Samsung 3 Year Limited Warranty
