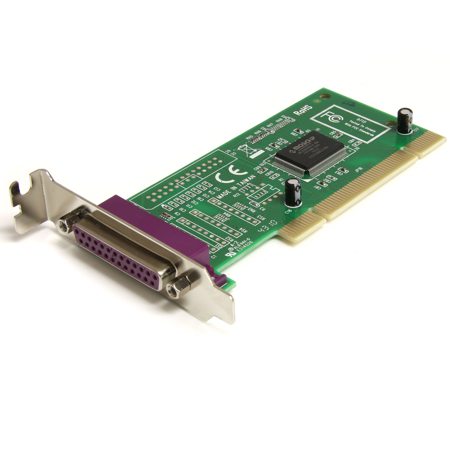

StarTech 1 Port Low Profile PCI Parallel Adapter Card

SKU: STPCI1PLP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech 1 Port Low Profile PCI Parallel Adapter Card Specifications

  • Bus Type

    PCI / PCI-X (5 / 3.3V)

  • Card Type

    Low Profile (SP bracket incl.)

  • Chipset ID

    ASIX/MosChip - MCS9805CV

  • Industry Standards

    BPP
    ECP
    EPP
    PCI 2.1
    SPP

  • Interface

    Parallel

  • Port Style

    Integrated on Card

  • Ports

    1

  • Maximum Data Transfer Rate

    1.5 Mbps

  • Connector Type(s)

    1x PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male

  • External Ports

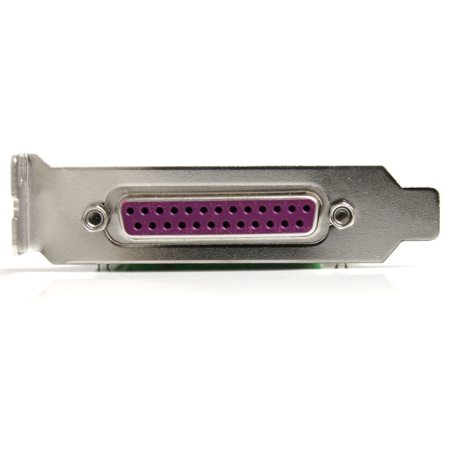

    1x DB-25 (25 pin; D-Sub) Female

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), ME, 98, 95, DOS
    Linux

  • System and Cable Requirements

    Unused PCI slot

  • Certifications

    RoHS Compliant
    CE
    FC
    UL

  • Dimensions (H x L x W)

    2.2 x 4.7 x 0.8" / 55.88 x 119.38 x 20.32mm

  • Weight

    2.1oz / 59.54g

  • UPC Code

    065030788755

About StarTech 1 Port Low Profile PCI Parallel Adapter Card

The PCI1P_LP 1 Port Low Profile PCI Parallel Adapter Card adds one IEEE 1284 port to your small form factor PC, with data transfer speeds of up to 1.5 Mbps up to 3 times faster than on-board parallel ports. The adapter card features a low profile design that is suited to small form factor computer cases, while including a full height bracket to adapt to any installation. Installation is a breeze with plug and play support and drivers for Windows 7, Vista, XP, ME, 2000, 98, 95,NT4, DOS and Linux. IRQ sharing and hot swapping capabilities guarantee convenient, hassle-free connections to any parallel peripheral. Backed by a StarTech lifetime warranty and free lifetime technical support.

• Compatible with low profile systems
• Supports EPP, ECP, SPP and BPP
• IRQ sharing eliminates conflicts between multiple cards
• Data transfer rates of up to 1.5 Mbps
• Easy plug and play installation
• Installation scripts available for Linux RedHat 7.2, SuSE 7.3 and Mandrake 8.2

Applications
• Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip drives and memory card readers

Advantage
• Standard and low profile bracket included allowing install into almost any system
• Up to 3 times faster than legacy ISA or on-board parallel ports providing fast and reliable parallel communication
• Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals

What's in the box:

  • StarTech 1 Port Low Profile PCI Parallel Adapter Card
  • Standard Profile Bracket
  • Driver CD
  • Manual
  • StarTech Lifetime Warranty
