StarTech 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Standard Profile (LP bracket including)

  • Chipset ID

    Realtek - RTL8101E

  • Interface

    RJ45 (10/100 Ethernet)

  • Ports

    1

  • Compatible Networks

    10/100 Mbps

  • Maximum Data Transfer Rate

    100 Mbps

  • Connector Types

    1x PCI Express x1 Male

  • External Ports

    1x RJ-45 Female

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
    Windows Server 2012, 2008 R2, 2003(32/64)
    Linux 2.6.x and up (Tested up to 3.5)

  • LED Indicators

    1x Link Status

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    0.8 x 3.6 x 4.7" / 2.03 x 9.14 x 11.94cm

  • Weight

    1.6oz / 45.36g

  • UPC Code

    065030828185

About StarTech 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card

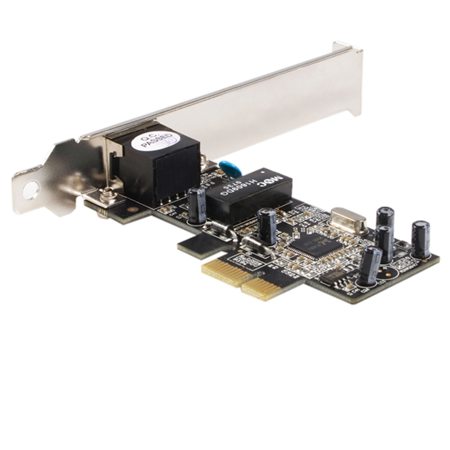

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management. The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

• Single 10/100Mbps RJ45 Ethernet port
• Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
• Crossover Detection & Auto-Correction (Auto-MDIX)
• Full and Half duplex mode support
• Link speed and duplex mode auto-negotiation
• Link/Activity and 10/100Mbps LED indicators
• Supports Wake-on-LAN
• Full/Low Profile installation brackets included

Advantage
• Cost effective and simple Ethernet networking for a desktop computer systems
• Backed by a StarTech lifetime warranty and free lifetime technical support

Applications
• Replacement Ethernet card for a home or office desktop computer
• Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
• Adding a second or redundant network connection for a workstation or server

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • StarTech 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
  • Low Profile Bracket
  • Driver CD
  • Instruction Manual
