StarTech Internal SATA to Dual SATA HDD RAID Controller Card, RAID 0/1/JBOD Support, 6Gbps Maximum Data Transfer Rate, Up to 4TB Maximum Drive Capacity

SKU: STS322SAT3R MFR: S322SAT3R
$55.99
Earn VIP Reward Points

Key Features

  • Boost your system's storage with this SATA RAID controller, supporting RAID 0, 1, JBOD configurations.
  • Achieve rapid data transfer rates up to 6Gbps using SATA III, perfect for demanding applications.
  • Expand your storage capacity; this SATA card supports up to 4TB drives for ample data storage.
  • Utilize RAID 1 for mirrored data redundancy, ensuring your important files are always backed up safely.
  • Easily configure RAID arrays with included software, making setup straightforward for any user.
  • Compact design integrates seamlessly into your system, optimizing space without sacrificing performance.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

THEODORE C : I just bought a new computer, it only came with 2 SATA ports, 1 for the HDD and 1 for the optical drive, I want to install a SSD for my operating system, would this controller card allow me to do this?darian n : yeah it will i used about 21ALAN C : Try pci-e card for extra ports. There are many and bootable as well. It also takes large HDD capacity and some has RAID supported.JOSEPH A : This card turns 1 port into two ports. So it will not give you 2 extra ports, just one. It will take on, and give two, for a net increase of 1 port. So you will have exactly the number of ports you need. As for whether it will work for your specific application, I think it will. But as it is designed for RAID / JBOD, it may not function correctly with two drives of different types. So I can't guarantee it.Tolga B : Yes this would help you out.BRIAN B : Yes, that will help you install 2 additional drives. I'm assuming this isn't a custom built because no motherboard should come with only 2 SATA ports. I have 8 on my motherboard. Just curious.ROGER J : Yes, this card would allow you to do this. I'd move you existing hard drive to this card and plug the SSD in directly to the motherboard.Robert A : I have the previous iteration of the MacPro (not the new trashcan) I swapped out the hard drive the day I got it and installed an SSD. As far as the system is concerned it's just another HD. You will, however have to purchase an adapter to fit the much smaller SSD in the same internal slot.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Internal SATA to Dual SATA HDD RAID Controller Card Specifications

  • Interface

    SATA

  • Number of Drives

    2

  • Compatible Drive Types (Type and Rate)

    SATA

  • Drive Installation

    Fixed

  • Chipset ID

    Jmicron - JMS562

  • Drive Connectors

    2x SATA (7 pin; Data) Plug

  • Host Connectors

    SATA Data & Power Combo (7+15 pin) Receptacle

  • Maximum Data Transfer Rate

    6 Gbps

  • Type and Rate

    SATA III (6 Gbps)

  • Port Multiplier

    Yes

  • RAID

    Yes

  • Max Drive Capacity

    Currently tested with up to 4TB 7200 RPM hard drives

  • Supported RAID Modes

    JBOD - (Just a Bunch of Disks)
    RAID 0 (Striped Disks)
    RAID 1 (Mirrored Disks)
    RAID 10 (1+0, Striped set of Mirrored Subset)

  • Operating Temperature

    5 to 50 deg. C (41 to 122 deg. F)

  • Storage Temperature

    -25 to 70 deg. C (-13 to 158 deg. F)

  • Humidity

    Operating 20% to 80%

  • Dimensions (L x W x H)

    3 x 1 x 0.9" / 76.2 x 25.4 x 22.86mm

  • Weight

    0.4oz / 11.34g

  • UPC Code

    065030857529

About StarTech Internal SATA to Dual SATA HDD RAID Controller Card

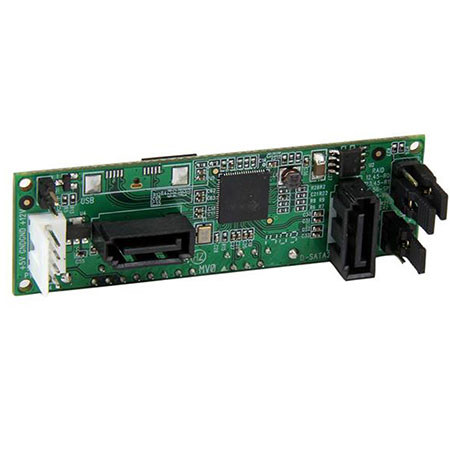

Under the umbrella of high-performance data storage solutions, the StarTech Internal SATA to Dual SATA HDD RAID Controller Card stands out. This reliable and efficient hardware component allows you to connect two SATA hard drives to a single SATA connector on your motherboard, creating a robust hardware RAID array.

The durable RAID adapter is equipped with an integrated hardware RAID controller, offering support for JBOD, BIG, RAID 0, and RAID 1 configurations. This versatility enables you to achieve enhanced drive capacity, secure data redundancy, and improved system performance, making it an ideal choice for users seeking a user-friendly yet powerful data storage solution.

Included in the package are two SATA cables, providing everything you need for a hassle-free installation. The design of this HDD adapter is focused on simplicity and efficiency, allowing for direct mounting to your drive without the need for additional hardware or software installation.

The StarTech Internal SATA to Dual SATA HDD RAID Controller Card is compatible with all leading operating systems, including Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. This ensures seamless integration with your existing computer system.

To fully harness the speed potential of your SATA III hard drives, this HDD RAID controller supports SATA III for transfer speeds of up to 6 Gbps when paired with a compatible controller. This feature, coupled with the ability to support a maximum drive capacity of up to 4TB, makes this RAID controller card a superior choice for managing large volumes of data.

StarTech Internal SATA to Dual SATA HDD RAID Controller Card Features

  • Add dual drive RAID support to a single internal SATA connector
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
  • Space-saving design, mounts directly to your drive
  • No software or drivers required
  • Achieve greater drive capacity, secure data redundancy or improved system performance with support for RAID 0 / RAID 1 / BIG / JBOD
  • Hassle-free installation with drive mounted controller, included SATA cables and no software or drivers required
  • Maximize performance with file transfer speeds up to 6Gbps when paired with a SATA III HDD and controller
  • Add data redundancy to your computer with a mirrored (RAID 1) RAID array
  • Increase the capacity of your computer system by adding an additional HDD in a RAID array (BIG) using the same single SATA connector as your existing drive
  • Increase system performance by internally adding a dual drive RAID 0 array to a single SATA connector
  • Add additional hard drives in a computer with limited SATA connectors

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Boost your system's storage with this SATA RAID controller, supporting RAID 0, 1, JBOD configurations.
  • Achieve rapid data transfer rates up to 6Gbps using SATA III, perfect for demanding applications.
  • Expand your storage capacity; this SATA card supports up to 4TB drives for ample data storage.
  • Utilize RAID 1 for mirrored data redundancy, ensuring your important files are always backed up safely.
  • Easily configure RAID arrays with included software, making setup straightforward for any user.
  • Compact design integrates seamlessly into your system, optimizing space without sacrificing performance.

What's in the box:

  • StarTech Internal SATA to Dual SATA HDD RAID Controller Card
  • 2x 50cm SATA Cables
  • LP4 to SATA Power Adapter
  • Installation Guide
  • StarTech 2 Year Warranty
