SunwayFoto DYH-120TRO Leveling Base with DDC-100 Clamp
SKU: SUNDYH120TRO MFR: DYH-120TRO&DDC-100
Earn VIP Reward PointsKey Features
- Achieve perfectly level horizons effortlessly with this leveling base, ideal for panoramic photography.
- Enjoy smooth and precise adjustments; this tripod head accessory ensures stable camera positioning.
- With a robust 55 lb capacity, this leveling base confidently supports heavy camera and lens combinations.
- Arca-Swiss compatible clamp makes setup quick, so you can spend more time capturing the perfect shot.
- Crafted for lightweight portability, this leveling base adds minimal weight to your photography gear.
- Get precise control for landscape photography; fine-tune your angles with ease using this tool.
Special Order?Estimated to Ship: 09/07/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$29.99
2 Year
$49.99
3 Year
$69.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About SunwayFoto DYH-120TRO Leveling Base
DYH-120TRO Leveling Base
Top, real, original, DYH-120TRO leveling base, very strong constructed designed for your large format cameras. Super smooth moving with security holding structure. With a big platform as large as to 120mm diameter, can be used for 810 and more. The load capacity for 120 leveling base: the load capacity in the center is 50kg, the load capacity is 15kg when the arm of force = 40cm.
Key Features
• All the components are precision CNC machined.
Anodized to a scratch-resistant and beautiful dark/gray finish.
• The platform has been increased to 120mm diameter, can be used for 810 and large format cameras.
• Very strong constructed can hold your large format cameras solidly.
• Super smooth moving with security holding structure.
• To adopt the unique design of DYH-100 and DYH-66, this Leveling Base can be easily and freely adjusted between +/-17 degree. So it can satisfy the uses in different environments.
• Lever Lock Knob is springloaded, can be pulled out and re-positioned in any positions.

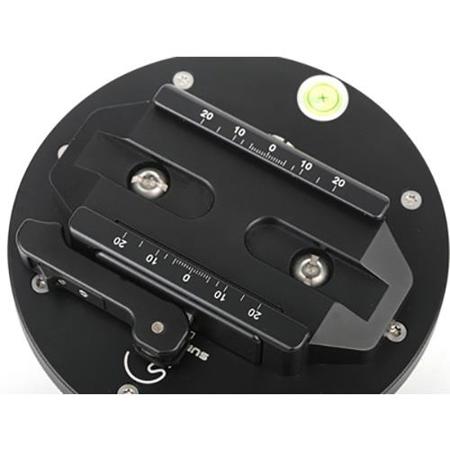

DDC-100 Clamp
Inder to make this product can be used more convenient by their photographers, they make a Lever-Release Clamp DDC-100 to fit it. This is SUNWAYFOTO the first Lever-Release Clamp. It's unique and very easy to install on and remove from the Platform. You only need to take two 1/4-20 camera screws to install the Clamp onto the Leveling Base ( the clamp central hole is non-thread). If you have attached a Quick-Release Plate to your camera, then you can experience the fast lock and release.
The important feature of this Clamp is that It has a structure that can extend the clamp distance from 40.5 to 41.5. It is controlled by a knob on the side of the Clamp.
Below are the improvements that they have made on DYH-120TRO and DDC-100
• They heighten the safety botton to comfortably capture user's thumb and forefinger to squeeze so that users will take less effort to release.
• They also lengthen the lever handle for more convenient to lock the head.
• The clamp has added index markings (as on other clamps) which can be used for precise plate positioning.
• Installation of the DDC-100 onto the Leveling Base
Warranty Information
This product has a limited warranty of 72 months.
