This item is no longer available.

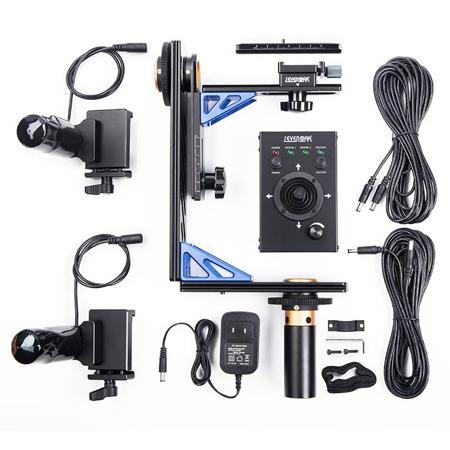

Sevenoak SK-ECH04 is a 2 axis remote controlled Electronic ball head designed for use on Jib Arms, Tripods or sliders. It features adjustable positioning on 2 axis to ensure that the center of gravity of the camera falls correctly within the pan and tilt head to put the minimum load on the DC motors on 2 axis as well as providing the smoothest motion as a result of this design.
The controller comes with SK-ECH04 has a joystick that gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The Joystick will also pan and tilt simultaneously. Further the pan and tilt controller also has variable speed control for both axis to adjust for sensitivity and speed of motion, there are also switches to change the direction of the joystick control and an on/off switch. This device comes with a 12V AC adapter.
The head will pan and tilt through 360 degrees, this enables the camera to point directly upwards or downwards when required. It is driven by two custom-geared motors. The motor drive can be easily disengaged to enable the camera to be balanced correctly on the camera plate. The head's camera plate is adjustable for different sizes of camera and will support up to 22.05 lbs.
Joystick Control Box
The Joystick Control gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The Joystick will also pan and tilt simultaneously. On the side of the control box is a variable speed controller, so you can set the maximum speed for better control, there are also switches to change the direction of the joystick control and an on & off switch.
On the front of the control box are sockets for the control cables, 12V DC in and two motor sockets. Led lights indicate when the unit is switched on and when the internal battery is on charge. The head is powered by a supplied AC adapter. On the bottom of the control box is a mounting bracket to attach it to the Jibs and Cranes.
