New Arrival

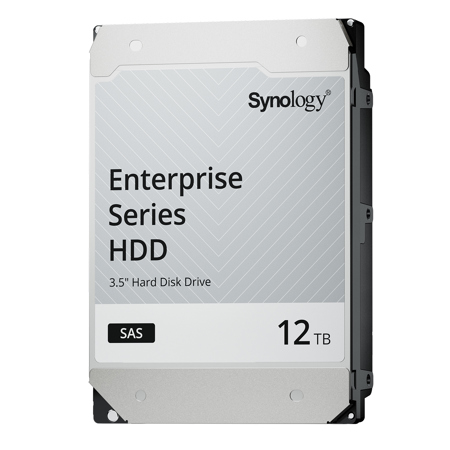

Synology HAS5310 Enterprise Series 3.5" SAS III Internal Hard Drive 12TB

SKU: SYHAS531012T MFR: HAS5310-12T
Earn VIP Reward Points

Key Features

  • Experience rapid data access with 7,200 RPM rotational speed, perfect for demanding enterprise applications.
  • Benefit from robust 12 Gb/s SAS III interface speeds, ensuring seamless data transfer and system compatibility.
  • Trust in exceptional data reliability with a 2,500,000-hour MTBF, safeguarding your critical information.
  • Handle intensive workloads effortlessly with a 550 TB/year rating, ideal for continuous data operations.
  • Enjoy consistent performance with 512 MB cache, optimizing read/write speeds for your storage needs.
  • Rest assured with a 5-year limited warranty, providing long-term support for your Synology hard drive.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Synology HAS5310 Specifications

Hardware

Hardware

Jump to...
  • Form factor

    3.5"

  • Interface

    SAS 12 Gb/s

  • Sector size

    512e

  • Drive design

    Helium-sealed

Performance

Jump to...
  • Rotational speed

    7,200 rpm

  • Interface speed

    12.0 Gb/s, 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s

  • Cache

    512 MB

  • Maximum sustained data transfer speed

    281 MB/s (Typ.)

Reliability

Jump to...
  • Mean Time Between Failure (MTBF)

    2,500,000 hours

  • Workload rating

    550 TB/year data write/read

Power Consumption

Jump to...
  • Supply Voltage

    12V ( +/- 10%) / 5V (+10/-7%)

  • Idle power average

    3.76W

  • Average operating power

    7.95W

Environmental

Jump to...
  • Temperature

    Operating: 41 Degree F to 140 Degree F (5 Degree C to 60 Degree C) (No condensation)
    Non-operating: -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C) (No condensation)

  • Shock

    Operating: 686 m/sq. s (2ms duration)
    Non-operating: 2,450 m/sq. s (2 ms duration)

  • Vibration

    Operating:
    5 Hz to 300 Hz: 7.35 m/sq. s
    300 Hz to 500 Hz: 2.45 m/sq. s

    Non-operating:
    5 Hz to 500 Hz: 29.4 m/sq. s

  • Altitude

    Operating: -1000 to 10000' (-304.8 to 3,048m)
    Non-operating: -1000 to 40000' (-304.8 to 12,192m)

  • Relative humidity

    Operating: 5% to 90% R.H. (No condensation)
    Non-operating: 5% to 95% R.H. (No condensation)

General

Jump to...
  • Certification

    CE, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark

  • Country of Origin

    Philippines

  • Dimensions (H x W x D)

    1.03 x 4.01 x 5.79" (26.1 x 101.85 x 147mm)

  • Weight

    1.52 lbs (690g)

  • UPC Code

    12TB: 846504006113

About Synology HAS5310

Engineered for Demanding Workloads in Enterprise Environments
Synology HAS5300 is designed to meet the capacity, efficiency, and reliability needs of modern enterprise deployments. Built to handle workloads up to 550 TB per year, it empowers host systems to serve large pools of concurrent clients. With a 2.5 million-hour MTBF HAS5300 meets the highest standards of dependability.

Perfect for scalable and high-availability systems
Synology HAS5300 SAS hard drives are specifically developed and tested to provide tight integration with our SA, HD, and UC lines of storage systems. Enabling your applications to take full advantage of the bandwidth available, they are the ideal choice for high-capacity, mission-critical workloads that require 24/7 operation.

Optimized firmware and integration with Synology's DiskStation Manager (DSM) operating system running on Synology storage solutions result in up to 19% faster RAID array repair speeds, greatly reducing the time the system spends in a degraded state.

Maximum durability and strong data protection
Rated for a 550 TB per year workload at a 2.5 million hours MTBF, HAS5300 series drives are a safe and reliable choice for any critical data storage application. Persistent write cache technology bolsters data integrity protection and enhances overall write performance.

Over 200,000 hours of validation and stress testing with Synology systems guarantee interoperability for each HAS5300 drive, ensuring maximum reliability on Synology solutions under even the heaviest workloads.

Combined with backup and replication solutions running on Synology DSM, HAS5300 series SAS HDDs provide an additional layer of protection.

Integrated maintenance
Using Synology drives and host systems simplifies IT deployment, providing you with long-term support for your entire system. Drive firmware update capability within DSM reduce required maintenance while increasing your systems service availability.

Synology HAS5310 Features

  • Enterprise Durability - For demanding 24/7 environments, rated for 2.5 million hours MTBF and up to 550 TB per year workloads
  • Tested for Maximum Reliability - Over 200,000 hours of stringent validation tests ensure maximum reliability on Synology SA, HD, and UC Series
  • Faster Array Rebuild - Up to 19% faster RAID array repair with firmware finetuned and optimized for performance
  • Persistent Write Cache - Minimizes the chance of data corruption in the event of sudden power loss
  • One-Stop Update - Firmware updates through DSM simplify maintenance

Key Features

  • Experience rapid data access with 7,200 RPM rotational speed, perfect for demanding enterprise applications.
  • Benefit from robust 12 Gb/s SAS III interface speeds, ensuring seamless data transfer and system compatibility.
  • Trust in exceptional data reliability with a 2,500,000-hour MTBF, safeguarding your critical information.
  • Handle intensive workloads effortlessly with a 550 TB/year rating, ideal for continuous data operations.
  • Enjoy consistent performance with 512 MB cache, optimizing read/write speeds for your storage needs.
  • Rest assured with a 5-year limited warranty, providing long-term support for your Synology hard drive.

What's in the box:

  • Synology HAS5310 Enterprise Series 3.5" SAS III Internal Hard Drive
  • Synology 5 Year Limited Warranty
