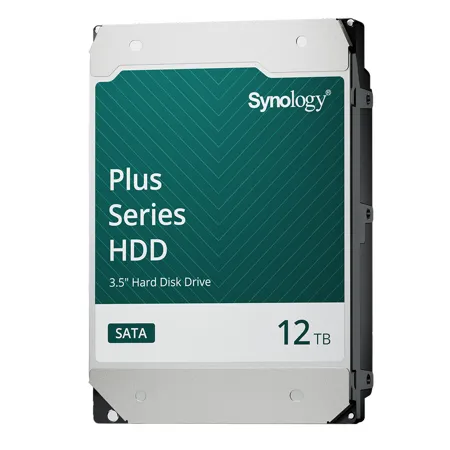

Synology HAT3320 Plus Series 3.5" SATA III Internal Hard Drive 12TB
See all Synology items
Just Reduced

Synology HAT3320 Plus Series 3.5" SATA III Internal Hard Drive 12TB

SKU: SYHAT331012T MFR: HAT3310-12T
Be the first to review this itemAsk a Question
$419.99
OR
$70/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience dependable data storage with this 3.5" SATA III internal hard drive, perfect for your desktop.
  • Enjoy robust performance with 7200 RPM rotational speed for quick access to your important files.
  • Benefit from enhanced reliability, ensuring your critical data is safe and consistently available.
  • Seamlessly integrate this hard disk drive into your existing system for expanded storage capacity.
  • Optimize your workflow with a 512MB cache, providing faster data processing and improved efficiency.
  • Trust in Synology's quality for a durable internal hard drive built for long-term use.
See More Product Details
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the spin speed of the HAT3310 Plus Series 3.5" SATA III Internal Hard Drive?

The HAT3310 Plus Series 3.5" SATA III Internal Hard Drive has a fast spin speed of 7200 RPM, ensuring quick access to your stored data.

What is the workload rating of this hard drive?

The HAT3310 Plus Series 3.5" SATA III Internal Hard Drive has a substantial workload rating of 180 TB per year, which is up to three times the workload of conventional desktop hard drives.

What operating systems is the HAT3310 Plus Series 3.5" SATA III Internal Hard Drive compatible with?

The HAT3310 Plus Series 3.5" SATA III Internal Hard Drive is compatible with both Windows and Mac operating systems.

How does the firmware update process work for this hard drive?

The HAT3310 Plus Series 3.5" SATA III Internal Hard Drive integrates seamlessly with Synology's DiskStation Manager (DSM), providing users with automatic notifications for firmware updates. Users can update the drive directly from the DSM interface, eliminating the need for third-party tools or disk removal.

What is the capacity of the HAT3310 Plus Series 3.5" SATA III Internal Hard Drive?

The HAT3310 Plus Series 3.5" SATA III Internal Hard Drive comes with a substantial storage capacity of either 12TB or 8TB, providing ample space for extensive data storage needs.

Shopper : Why Did You Choose This?MICHAEL S : To match my Synology NAS systemWILLIAM H : best fit for my NASKEYNON L : Compatibility listCRAIG M : It's the only brand that is warrantied for the Synology Diskstation. Other models are available, all under the Synology name.

Reviews about this item

Review Summary

2024-08-23T15:22:28

Rated 5 out of 5

Recommended

Working as described!

HEIDI B.

Synology HAT3300 Specifications

General

General

Jump to...

  • Available Capacity

    4TB, 6TB, 8TB, 12TB, 16TB, 20TB

  • Form factor

    3.5"

  • Interface

    SATA

  • Sector size

    512e

  • Drive design

    4TB, 6TB, 8TB: Air
    12TB, 16TB, 20TB: Helium-Sealed

Performance

Jump to...

  • Rotational speed

    4TB, 6TB: 5,400 rpm
    8TB, 12TB, 16TB, 20TB: 7,200 rpm

  • Interface speed

    6 Gb/s

  • Cache

    4TB, 6TB: 256 MB
    8TB, 12TB, 16TB: 512 MB
    20TB: 1 GB

  • Maximum sustained data transfer speed

    4TB, 6TB: 202 MB/s
    8TB, 12TB, 16TB: 281 MB/s
    20TB: 295 MB/s

Reliability

Jump to...

  • MTBF

    4TB, 6TB: 1,000,000 hours
    8TB, 12TB, 16TB, 20TB: 1,200,000 hours

  • Workload rating

    4TB, 6TB, 12TB, 16TB, 18TB: 180 TB/year data write/read
    8TB: 300 TB/year data write/read

Power Consumption

Jump to...

  • Supply voltage

    4TB, 6TB: 12 V ( +/- 10%) / 5 V ( +/- 5%)
    8TB, 12TB, 16TB, 20TB: 12 V (+/- 10%) / 5 V (+10/-7%)

  • Idle power average

    4TB: 3.96 W
    6TB: 3.40 W
    8TB: 5.74 W
    12TB: 3.30 W
    16TB: 4.14 W
    20TB: 4.35 W

  • Average operating power

    4TB: 4.85 W
    6TB: 5.30 W
    8TB: 9.07 W
    12TB: 6.85 W
    16TB: 7.48 W
    20TB: 7.62 W

Environmental

Jump to...

  • Temperature

    Operating:
    4TB, 6TB: 32 Degree F to 149 Degree F (0 Degree C to 65 Degree C)
    8TB, 12TB, 16TB, 20TB: 41 Degree F to 140 Degree F (5 Degree C to 60 Degree C)

    Non-operating: -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C)

  • Shock

    Operating:
    4TB: 785 m/sq. s (2 ms duration)
    6TB, 8TB, 12TB, 16TB: 686 m/sq. s (2 ms duration)
    20TB: 490 m/sq. s (2 ms duration)

    Non-operating:
    4TB, 6TB: 2,943 m/sq. s (2 ms duration)
    8TB, 12TB, 16TB: 2,450 m/sq. s (2 ms duration)
    20TB: 1,960 m/sq .s (2 ms duration)

  • Vibration

    Operating:
    4TB, 6TB:
    10 Hz to 22 Hz: 2.45 m/sq. s, Limited displacement
    22 Hz to 350 Hz: 4.90 m/sq. s
    350 Hz to 500 Hz: 2.45 m/sq. s

    8TB, 12TB, 16TB, 20TB:
    5 Hz to 300 Hz: 7.35 m/sq. s
    300 Hz to 500 Hz: 2.45 m/sq. s

    Non-operating:
    4TB, 6TB:
    5 Hz to 22 Hz: 29.43 m/sq. s, Limited displacement
    22 Hz to 350 Hz: 29.43 m/sq. s
    350 Hz to 500 Hz: 29.43 m/sq. s

    8TB, 12TB, 16TB, 20TB:
    5 Hz to 500 Hz: 29.4 m/sq. s

  • Altitude

    Operating: -304.8 to 3,048m
    Non-operating: -304.8 to 12,192m

  • Relative humidity

    Operating: 5% to 90% R.H. (No condensation)
    Non-operating: 5% to 95% R.H. (No condensation)

Acoustics

Jump to...

  • Acoustics, idle (typical)

    4TB: 23 dB
    6TB: 27 dB
    8TB: 34 dB
    12TB, 16TB, 20TB: 20 dB

  • Acoustics, seek (typical)

    4TB: 27 dB
    6TB: 28 dB
    8TB: 35 dB
    12TB, 16TB, 20TB: 32 dB

Certification

Jump to...

  • Certification

    CE, RCM, BSMI, KC, UKCA, UL, TUV, RoHS

Physical

Jump to...

  • Dimensions (H x W x D)

    4TB: 0.79 x 4 x 5.78" (20.20 x 101.85 x 147mm)
    6TB, 8TB, 12TB, 16TB, 20TB: 1.02 x 4 x 5.78" (26.11 x 101.85 x 147mm)

  • Weight

    4TB: 17.28 oz (490g)
    6TB: 21.51 oz (610g)
    8TB: 26.63 oz (755g)
    12TB, 16TB: 25.39 oz (720g)
    20TB: 25.75 oz (730g)

Other

Jump to...

  • UPC Codes

    20TB: 846504006564 | 12TB: 846504005581 | 6TB: 846504005130 | 16TB: 846504005598 | 8TB: 846504006342 | 4TB: 846504005123

About Synology HAT3300

Reliable hard drives purpose-built for Synology systems in home and small office environments.

The Synology advantage
• Durability: Designed for 24/7 operation
• Updates: Seamless firmware updates through DSM
• One-stop support: Fast troubleshooting from Synology

Hard drives designed for Synology systems
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Superior dependability
Using 100% conventional magnetic recording (CMR) technology, Plus Series disk drives ensure consistent write performance throughout their lifespans.

Comprehensive testing
Synology Plus Series drives are subjected to thorough compatibility and stress testing to ensure smooth 24/7 operation under multi-user workloads.

• 500K+ hours of testing

Easy firmware updates
Firmware updates can be performed directly through DSM, ensuring drives benefit from the latest patches while eliminating the need for disk removal.

Tuned for performance
Firmware and operating system - level optimizations enable up to 27% faster sequential writes compared to similar-class third-party drives.

• 36% faster

Synology HAT3300 Features

  • Reliable Always-On Operation: Backed by up to a 1.2 million hours MTBF and 300TB/year workload rating
  • Tested for Maximum Reliability: Stringent validation and over 500,000 hours of testing ensure reliability in Synology systems
  • Seamless Firmware Updates: Firmware updates can be performed directly in Synology DSM
  • Reliable Recording Technology: Conventional magnetic recording (CMR) technology offers consistent performance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience dependable data storage with this 3.5" SATA III internal hard drive, perfect for your desktop.
  • Enjoy robust performance with 7200 RPM rotational speed for quick access to your important files.
  • Benefit from enhanced reliability, ensuring your critical data is safe and consistently available.
  • Seamlessly integrate this hard disk drive into your existing system for expanded storage capacity.
  • Optimize your workflow with a 512MB cache, providing faster data processing and improved efficiency.
  • Trust in Synology's quality for a durable internal hard drive built for long-term use.

What's in the box:

  • Synology HAT3320 Plus Series 3.5" SATA III Internal Hard Drive
  • Synology 3 Year Limited Warranty
