Tannoy 6" Coaxial Surface-Mount Loudspeaker with Transformer for Installation Applications Black (Pair)

SKU: TANDVS6T

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tannoy DVS6T Specifications

Performance

Performance

Jump to...
  • Frequency response (-3 dB)

    80 Hz - 20 kHz

  • Frequency response (-10 dB)

    65 Hz - 30k Hz

  • System sensitivity (1 W at 1 m)

    88 dB

  • Dispersion (-6 dB)

    90 degrees conical

  • Transducers

    Coaxial

  • Low frequency

    165mm (6.5") mineral loaded cone material

  • High frequency

    20 mm (0.79)

  • Crossover

    4.3 kHz - 2nd order LF, 2nd order HF

  • Directivity (Q)

    10.6 averaged 1 kHz to 10 kHz

  • Directivity (DI)

    9.6 averaged 1 kHz to 10 kHz

  • Rated maximum SPL

    105 dB (average)
    111 dB (peak)

Transformer Version

Jump to...
  • Transformer taps

    70 V: 60 W (83 Ohms) / 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / OFF & low impedance operation
    100 V: 60 W (165 Ohms) / 30 W (330 Ohms) / 15 W (660 Ohms) / OFF & low impedance operation

  • Maximum wire gauge for connector

    2.5 mm CSA (AWG12)

  • Safety Agency Ratings

    UL-1480, CE

Power Handling

Jump to...
  • Average

    60 W

  • Programme

    120 W

  • Peak

    240 W

  • Recommended amplifier power

    120 W at 6 Ohms

  • Nominal impedance

    6 Ohms

Construction

Jump to...
  • Enclosure

    ABS

  • Grille

    Aluminum, painted

General

Jump to...
  • Connectors

    Euroblock type removable locking connector with screw terminals with "loop through" facility

  • Dimensions (HxWxD)

    13.41 x 8.36 x 8.52" (34.06 x 21.23 x 21.64cm)

  • Weight

    Transformer versions: 10.6 lbs (4.81kg)

  • UPC Code

    748252166449

About Tannoy DVS6T

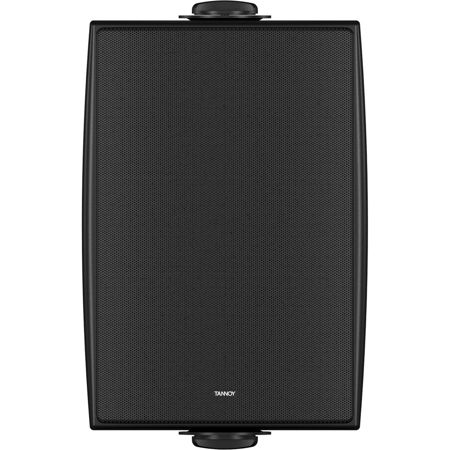

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6T is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments and houses of worship.

Superb Point-Source Performance
DVS 6T's point-source design comprises a 150 mm (6.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 6T is an exceptional choice for challenging environments such as indoor swimming pools, saunas or work areas with unusually high levels of dust or moisture and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install
The highly durable and scuff resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. The DVS 6T is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable over a range of settings via a rotary tapping switch located on the back panel. Phoenix connectors for input and link output are provided for convenience.

Tannoy DVS6T Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • 90deg. constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
  • Painted perforated aluminum mesh grille with dust protection
  • Yoke bracket included for ease of installation
  • Phoenix connectors input and link output
  • 10-Year Warranty Program
  • Designed and engineered in the U.K

What's in the box:

  • 2x Tannoy 6 " Coaxial Surface-Mount Loudspeaker with Transformer
  • Yoke Bracket
  • Tannoy 10 Year Warranty
