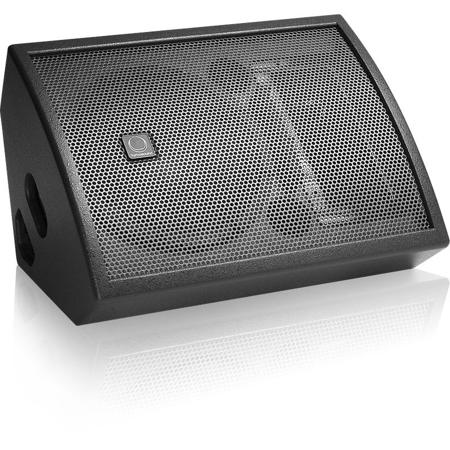

Turbosound TMW-121 12" Compact Passive 2-Way Wedge Monitor, 300W RMS

The TMW-121 is a compact passive two-way wedge monitor enclosure designed for use in a wide variety of live sound, fixed installation and mobile DJ applications that require professional sound quality in an easily transportable format. It consists of a 12" reflex-loaded low frequency driver and a 1" high frequency compression driver on a 40deg.H x 70deg.V dispersion HF horn in an optimally tuned enclosure. These high grade components are matched with an internal third order passive crossover network to ensure a seamless transition between the HF and LF drivers. The crossover network incorporates a two-stage thermal overload protection system which prevents damage to the high frequency driver, reacting instantly to large transient peaks while still allowing wide dynamic range to be maintained. Although the protection system is transparent at normal operating levels, as the level increases the signal is gradually and imperceptibly reduced once the critical threshold has-been reached. Its symmetrical shape allows the monitor to be inverted and used as left/right mirror image pairs.

In addition to its primary function as a floor monitor, the TMW-121 is also suitable for front-of house applications and can be used with the integral pole mount socket on top of optional 35mmpoles and loudspeaker stands. Two recessed flush handles are provided for easy lifting and carrying and eight rubber feet are fitted.

The cabinet is constructed from 15mm (5/8") birch plywood, screwed and glued together for maximum rigidity and finished in black textured polyurethane. A black powder- coated perforated steel mesh grille protects the drive units from damage. A Neutrik Speakon NL4 speaker connector is located at each end of the cabinet on recessed panels, providing input and parallel connections to additional TMW-121 series monitors.
