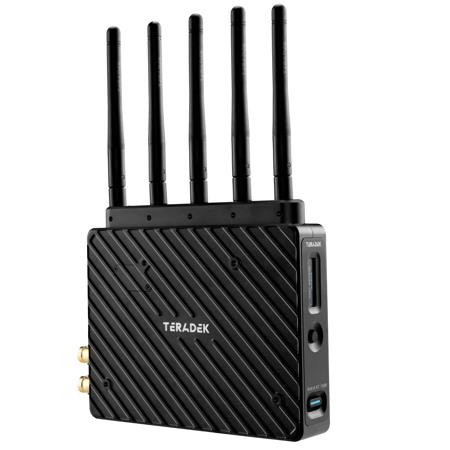

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Receiver, V-Mount, 1500' Range

SKU: TE102312V MFR: 10-2312-V
Earn VIP Reward Points

Key Features

  • Experience seamless video with this Teradek Bolt 6 XT wireless receiver, offering low latency.
  • Achieve a stable connection for broadcast equipment with a reliable wireless video transmitter.
  • Enjoy high video quality with 12G-SDI and HDMI, perfect for professional live streaming setups.
  • Extend your range up to 1500' with this wireless receiver, ideal for diverse shooting locations.
  • Benefit from easy setup; this affordable wireless video solution integrates smoothly into any workflow.
  • V-Mount receiver supports metadata, timecode, and start/stop flags from major camera brands.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2312 Specifications

Video
  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Output Video Scaling

    Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230GHz, 5.755 - 5.795GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 1500' (457.2m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and 3/8"x16 holes

  • Dimensions

    4.4 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    15.2 oz (430g)

  • UPC Code

    818264027257

About Teradek 10-2312

Enhance your video production capabilities with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Receiver. This high-quality, durable device is designed for real-time wireless video reception, supporting 4K video with Teradek's innovative Zero-Delay technology. Experience less interference with the utilization of the newly opened 6GHz wireless frequency, ensuring color-accurate, True HDR videos are received in under 0.001 seconds.

This advanced wireless receiver boasts a long range of 1500', offering flexibility for various production needs. It's designed for quick reconnection times and provides an intuitive setup through the Bolt Manager App, available for iOS and Android. Enjoy consistent, stable connectivity, making it a reliable choice for professional video production.

The Bolt 6 XT Receiver is not just about performance, but also about convenience. It's been redesigned to fit seamlessly into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless wireless camera-control setup when used with SmallHD Smart Monitors, enhancing your workflow with improved long-range wireless video mode.

The Bolt 6 XT is also equipped with new tools for high-end users, providing better visibility over connections and signals. This adds confidence to your workflow, even in challenging environments. Cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, it offers the option to expand your workflow requirements.

The Bolt 6 XT stands out in the crowded 5GHz frequency space, used by many devices such as Wifi routers, cell phones, IOT devices, and competitor wireless video systems. By utilizing the newly opened 6GHz wireless frequency, it ensures a quieter wireless environment with faster connections and less interference for a superior wireless experience. However, it can still be set up in 5GHz Mode for backwards compatibility.

In conclusion, the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Receiver is a versatile, innovative solution for your wireless video reception needs, offering superior performance, flexibility, and convenience.

Teradek 10-2312 Features

  • Zero Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience seamless video with this Teradek Bolt 6 XT wireless receiver, offering low latency.
  • Achieve a stable connection for broadcast equipment with a reliable wireless video transmitter.
  • Enjoy high video quality with 12G-SDI and HDMI, perfect for professional live streaming setups.
  • Extend your range up to 1500' with this wireless receiver, ideal for diverse shooting locations.
  • Benefit from easy setup; this affordable wireless video solution integrates smoothly into any workflow.
  • V-Mount receiver supports metadata, timecode, and start/stop flags from major camera brands.

What's in the box:

  • Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Receiver (V-Mount)
  • 2x Bolt 6 XT Battery Cover (Front/Rear)
  • 2x Phillips Flat Head Screw
  • 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" SDI 12G BNC to BNC Cable
  • 6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
  • 5x Antenna
  • 3' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Teradek 1 Year Limited Warranty
