Review Summary
Support for up to 4 additional Node Modems using 5-pin connectors and external power
Gold Mount, V-Mount
4x 5G Node, 2x 5G Node
Requires external power from standard PTAP adapter, Gold, V-Lock Battery Plates
Recommended Battery: Anton Bauer Batteries
1x 12G/6G/3G/HD/SD-SDI (75 Ohm BNC)
1x HDMI 2.0 Type-A receptacle
Yes (Rec. 2100)
1x 12G/6G/3G/HD/SD-SDI (75 Ohm BNC)
Support for up to 9 network inputs:
4x Cellular phones
2x Internal Node modems
1x External modem
2x Ethernet networks
4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main
250 Kbps to 85 Mbps
Built in video scaler and deinterlacer
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Secure Reliable Transport (SRT), RTMP/RTMPS, MPEG-TS (UDP, TCP, TCP Server, Multicast), CDNs (YouTube, Facebook, Vimeo), RTSP/RTP
Teradek Core
Stero, 5.1 Surround Sound
AAC-LC
32kbps to 512 kbps
48kHz
Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain
3.5mm TRRS Stereo Headphone output, adjustable gain
Feature-rich Web UI for local device management, configuration, and control, Intuitive iOS configuration app (Prism App), OLED Status Display w/ Nav control buttons, Core for cloud based device management
2x Internal Node II modems with dual switchable SIM slots, Supports up to 4 cellular SIM cards
Supported File Type - MP4, TS wrapper
Supported Media - SD Card, USB, NFS
1x Powered LEMO with Node II LTE/4G/3G Modem support
1x Powered USB-A with external storage support
2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
2-pin circular locking connector, Gold, Gold 26V and V-Lock Battery Plates
20W Nominal, 36W Max
6-28V DC
Milled aluminum
Camera-back, Gold, Gold 26V and V-Lock mounts
Can be mounted using the 1/4" 20 mounting holes
5.9 x 3.9 x 1.3" (162 x 92 x 35mm)
Without Plates: 23.4 oz (664g)
With Plate: 30.5 oz (864g)
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n39, n40, n41, n46, n48, n66, n70, n71, n75, n76, n77, n78, n79
Yes
Yes
Yes
Yes
Expand your Prism Mobile's capabilities with the Prism Mobile Backpack, the essential accessory to expand your cellular streaming by up to 4 additional 5G modems. Combined with Prism Mobile's built-in cellular connectivity, the backpack provides up to 6 simultaneous cellular connections for super robust streaming from any location.

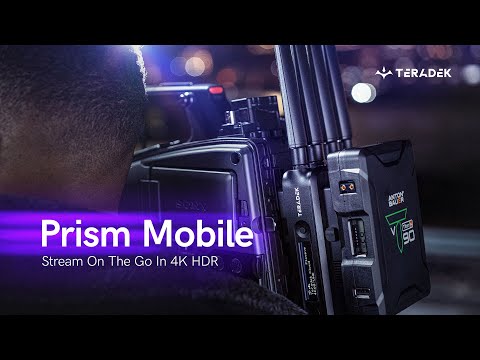

Stream On The Go In 4K HDR
Introducing the most resilient bonded cellular encoder for live coverage from the field.
The Bonded Cellular Solution
The lowest-SWaP, LTE-enabled camera-back video encoder in its class. Prism Mobile allows you to reliably stream 4K HDR video from the most challenging locations for live coverage on the go.
Portable Connectivity
Mission-Critical Network Bonding
Get exceptional worldwide internet connectivity virtually anywhere you go with two internal high-throughput Node II modems uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond up to nine network connections across Cellphone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) - ensuring your stream never misses a beat.
Camera-Back On-The-Go Design
Hardware Overview
Compact, lightweight, and power-efficient: the definition of Low-SWaP. Prism Mobile mounts to the Gold / V-mount battery plate on your ENG camcorder or professional camera rig. And for studio or fixed workflows, Prism Mobile is available as a desktop solution.
CBRS Capable
Prism Mobile supports the new Node II CBRS, enabling your encoder to connect to private, high-speed mobile networks for uncongested transmission of HD and 4K HDR video backhaul.
Internal Node Modems
Node II is our custom high-performance 4G / LTE global modem that provides the critical connectivity required for professional on-the-go streaming.
External Node Modems
Where additional coverage is needed in more challenging environments, Prism Mobile is capable of adding an external Node II modem.
Prism Mobile Backpack
Supercharge your Prism Mobile with the Prism Mobile backpack, packing up to 4 additional high-performance Node 5G modems for unbeatable cellular connectivity in the field.
9X Connections, 9X Reliability
2 Node II Internal Modems
1 Node II External Modem
2 Gigabit Ethernet
4 Cellphone Hotspots
Configure From Your Phone
With the Prism app for iOS and Android, you can manage your Prism devices right from your phone or tablet. Fire up the app to configure your encoder, monitor and manage your feed, and review streaming stats in real-time. Lacking internet signal The Prism app allows you to share your phone's 5G or LTE bandwidth with your Prism device.
- Node Modems -
Node Modems offer reliable, high-speed global cellular connectivity over public and private (CBRS) LTE / 5G networks.
Available as an integrated solution in our Prism Mobile or as a standalone device, Node modems provide broadcasters with flexible connectivity options that enable remote video contribution and camera-to-cloud workflows for professional sports events, breaking news, and concerts.
Data
Break free from traditional network limitations with Teradek Data: cellular data plans made for broadcasters and content creators. With all that's needed to manage a production, your data plan should be the last of your concerns. Equip your productions with an unrivaled flexible cellular solution that frees you from data throttling and data caps. You can even change your cellular carrier on-site, or in mid-production. Plus, instead of having different plans for different SIMs, Teradek Data allows you to share your data across your whole fleet - pulling from one data bucket for much greater versatility.
CBRS Private like WiFi Distance like Cellular
Out of the box, both Node II CBRS and Node 5G are equipped with built-in support for Citizens Broadband Radio Service (CBRS), giving you seamless access to private wireless spectrums within the United States. Operable from 3.55 to 3.7 GHz, CBRS frequencies ensure dependable and interference-free communication, providing an assurance of stream quality and decreasing any risk of stream drops. Rest easy knowing that your streams are secure and uninterrupted, thanks to the CBRS-enabled functionality of Node II CBRS and Node 5G.
Compatibility
Teradek Nodes seamlessly integrate with a wide range of Teradek products to enhance your live production and on-set workflows. Whether you're utilizing them in the field to achieve uninterrupted streaming connections, or using them on set to accelerate post-production camera-to-cloud workflows, Node modems provide reliable, high-speed connectivity for your Teradek products anywhere you operate.
Live Production & Broadcast Workflows
Whether you're capturing live events, conducting on-location interviews, or streaming breaking news, Teradek Node modems provide the essential link between your cameras and your streaming destination. Captivate your audience with stunning visuals and uninterrupted streams.
Bonded Workflows
Enhance your Prism Mobile's connection reliability with Node 5G - whether bonding to Core or File to Cloud.
Point to Point
Low latency point to point over Private CBRS Networks.
Camera to Cloud in an Instant
Expedite your camera to cloud workflows with Node 5G and make your upload times faster than ever.
On Set Connectivity
Share your robust Data connection with on set devices using Node 5G and Link AX.
