Teradek Bolt 4K 1500 RX Monitor Module for SmallHD Smart 7 Monitors, Gold Mount

The Bolt 4K RX 1500 Monitor Module is a zero-delay wireless video receiver that supports video signals up to 4Kp30 via HDMI with 1,500 feet (456m) of range. Designed for seamless integration with the SmallHD Smart 7 Monitor Series, it supports 4K and HDR with faster reconnection times, more stable connectivity, and easy setup with the Bolt App (iOS/Android). This device includes a Gold Mount Battery Plate for power and is cross-compatible with the entire Bolt 4K Family.

Integrated Hardware Addition to SmallHD Smart 7 Touchscreen Monitors

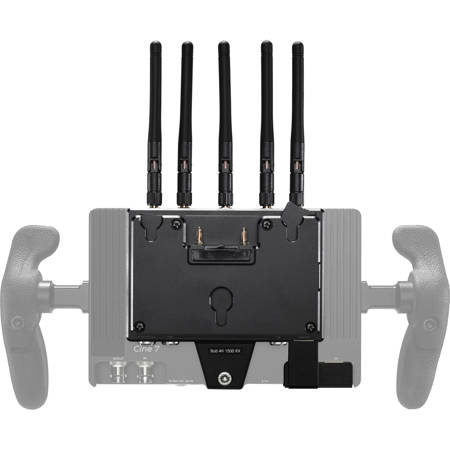

The RX Module easily attaches to the back of Cine 7, 702 Touch, and Indie 7 Smart Monitors and Includes a Gold Mount Battery Plate for pass-through battery power to both the RX Module and monitor.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 at a line-of-sight distance of up to 1,500ft (456m) with no image latency (>0.001sec).

Output: 1x HDMI 2.0 (up to 4Kp30)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receives Log-enabled camera signal with wide dynamic range for precisely balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies. Upgraded hardware and less image breakup than previous Bolt generations. Faster reconnection times, automatic signal-quality switching, and a more robust frequency-hopping algorithm. An additional 5GHz radio-frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for scalable workflow.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

Note: When pairing a Bolt 4K Monitor Module 1500 TX to a Bolt 4K Monitor Module 750 RX - or vice-versa - effective range will be 750ft. 1,500 feet of range is only accessible by pairing a TX 1500 with an RX 1500.
