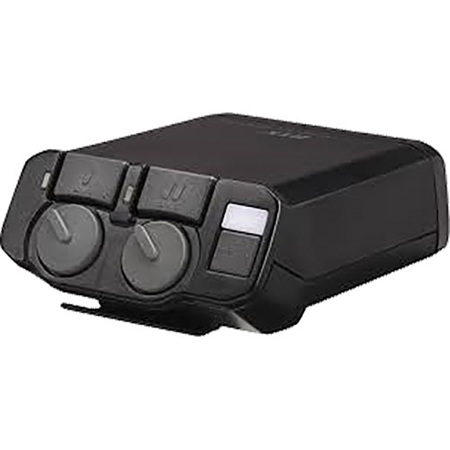

Telex BP-325 Dual Channel Binaural Programmable Beltpack Station, 100Hz to 12KHz Frequency Response, 10000Ohms Impedance, Black

SKU: TEBP325B MFR: F.01U.118.528
Earn VIP Reward Points

Key Features

  • Experience clear audio with this Telex intercom system beltpack, perfect for live events.
  • Dual-channel operation offers flexible communication; this beltpack enhances any pro setup.
  • Durable design ensures reliable performance; use this Telex beltpack for years to come.
  • Programmable features allow customization; optimize your intercom system for unique needs.
  • Wide frequency response (100Hz-12kHz) delivers pristine sound for critical communication.
  • Lightweight & compact, this Telex beltpack provides comfort during extended use on set.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telex BP-325 Specifications

  • Channel Supplied Power Requirements

    30V DC nominal (standard RTS line), 65 to 85 mA

  • Storage Temperature

    -20 deg. C to 80 deg. C; 0% to 95% humidity, noncondensing

  • Operating Temperature

    0 deg. C to 50 deg. C; 0% to 95% humidity, noncondensing

  • Exterior

    Polystyrene and polycarbonate mix; gray textured main body

  • Impedance Across Intercom Line

    10000Ohms typical

  • Ambient Temperature Range: Operating

    0 deg. C to 50 deg. C

  • Ambient Temperature Range: Storage

    -40 deg. C to 125 deg. C

  • Noise Contribution to 200Ohms Line

    -75dBu

  • Maximum Input Level

    +20dBu

  • Nominal Input Level

    -10 to +8dBu

  • Frequency Response

    100Hz to 12kHz, +/-3dB

  • Monaural Dynamic-mic Headset Connector

    XLR-4-31 receptacle (J13)
    Pin 1: Microphone low
    Pin 2: Microphone high
    Pin 3: Common
    Pin 4: Headphone high

  • Stereo Dynamic-mic Headset Connector

    XLR-5-31 receptacle (J14)
    Pin 1: Microphone low
    Pin 2: Microphone high
    Pin 3: Common
    Pin 4: Headphone left high
    Pin 5: Headphone right high

  • Carbon-mic Headset Connector (J1)

    1/4", 3-conductor Phone Jack

  • Carbon-mic Connector (J1) for Headset

    Tip: Carbon microphone
    Ring: Headphone
    Sleeve: Common

  • Carbon-mic Connector (J1) for Mic Switch

    Tip: Remote switch normal-open contact
    Ring: No connection
    Sleeve: Remote switch common

  • Intercom Line Input Connector (J11)

    XLR-3-31 female receptacle
    Pin 1: Common
    Pin 2: Channel 1 intercom audio and +DC
    Pin 3: Channel 2 intercom audio

  • Aux Connector (J10) for Loop-through

    XLR-3-32 male receptacle
    Pin 1: Common
    Pin 2: Channel 1 intercom audio and +DC
    Pin 3: Channel 2 intercom audio

  • Aux Connector (J10) for Program Input

    Pin 1: Common
    Pin 2: Program input high
    Pin 3: Program input low

  • Aux Connector(J10) for Remote Mic Switch

    Pin 1: Common
    Pin 2: +22 to +24V DC
    Pin 3: Remote switch normal-open contact

  • Dimensions (H x W x D)

    5 x 3.5 x 1.8" / 127 x 88.9 x 45.72mm

  • Weight

    13oz / 368.54g

Models
Telex BP-325 Dual Channel Binaural Programmable Beltpack Station, Black
$590.00

$721.00

Save:$131.00 (18%)

In Stock

Telex LFB-1000 Single Channel Intercom Beltpack

SKU: TEIFB1000

MFR: F.01U.118.562

$296.99

$348.00

Save:$51.01 (15%)

In Stock

Accessory TypeBelt PackBelt PackBelt Pack
Signal TransmissionWired--

About Telex BP-325

Bring your audio experience to the next level with the Telex BP-325 Dual Channel Binaural Programmable Beltpack Station in sleek black. This high-quality, portable user station is specifically designed for seamless integration with RTS Two-Wire intercom systems, making it a must-have for professionals in the audio and communication industry.

As a binaural, or stereo, programmable 2-channel beltpack, the BP-325 offers superior sound quality, with a frequency response ranging from 100Hz to 12KHz. This broad frequency range ensures clear, crisp audio transmission, regardless of the environment.

The BP-325 is equipped with a PGM-in capability, providing users with greater control and flexibility in managing their audio output. This feature, combined with the beltpack's 10000Ohms impedance, guarantees a stable, consistent audio performance every time.

Designed exclusively for use with dynamic microphones, the Telex BP-325 Beltpack Station comes with a factory setting for Dynamic. This ensures optimal compatibility and performance, making it a reliable choice for professionals seeking high-quality, efficient audio equipment.

Incorporate the Telex BP-325 Dual Channel Binaural Programmable Beltpack Station into your audio setup and experience the difference in sound quality and performance.

Telex BP-325 Features

  • Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side
  • Microprocessor controlled microphone kill detect
  • Powered externally, via the intercom system power supply on channel one
  • Headset 4 or 5-pin XLR connection is available

Product Documents

User Manual

Key Features

  • Experience clear audio with this Telex intercom system beltpack, perfect for live events.
  • Dual-channel operation offers flexible communication; this beltpack enhances any pro setup.
  • Durable design ensures reliable performance; use this Telex beltpack for years to come.
  • Programmable features allow customization; optimize your intercom system for unique needs.
  • Wide frequency response (100Hz-12kHz) delivers pristine sound for critical communication.
  • Lightweight & compact, this Telex beltpack provides comfort during extended use on set.

What's in the box:

  • Telex BP-325 Dual Channel Binaural Programmable Beltpack Station
  • Telex 3 Year Limited Warranty
