Telefunken ELA M 260 Small Diaphragm Vacuum Tube Microphone with TK60 Cardioid Capsule and Zipper Case

SKU: TFSYTM097 MFR: SYTM-097
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Telefunken condenser microphone's exceptional sound quality.
  • Achieve professional recordings using the ELA M 260's low noise, ideal for critical applications.
  • The cardioid polar pattern expertly isolates sound, reducing unwanted ambient noise effectively.
  • Enjoy a broad 20 Hz - 20 kHz frequency response, capturing every nuance of your performance.
  • Built with premium components, this microphone offers incredible build quality and lasting durability.
  • Connect easily with the included 7-Pin XLR cable, ensuring a stable, high-quality audio signal.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telefunken ELA M 260 Specifications

  • Type

    Vacuum Tube Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    20 Hz - 20 kHz, +/-3 dB

  • Power Source

    External Power Supply

  • Capsule

    TK60 - Edge Terminated Small Diaphragm, Thread-on

  • Tube

    NOS Philips 5840W

  • Transformer

    TELEFUNKEN Elektroakustik T60

  • Sensitivity

    19.5 mV/Pa, +/-1 dB

  • THD at 1kHz at 1Pa (Amplifier)

    < 0.15%

  • Output Impedance

    200 Ohm

  • Maximum SPL (for 1% THD)

    135 dB

  • S/N Ratio

    83 dBA

  • Self Noise (Amplifier)

    11 dBA

  • Dimensions (L x Dia.)

    5.51 x 0.78" (140 x 20mm)

  • Weight

    4.09 oz (116g)

  • UPC Code

    810047032984

About Telefunken ELA M 260

Why settle for less when you can have the best The ELA M 260 Small Diaphragm Vacuum Tube Microphone, a product of Telefunken's superior craftsmanship, is a standout in the audio recording industry. Known for its exceptional detail and clarity, this high-quality microphone is a top choice for professionals seeking to capture the authentic tone of acoustic and classical music.

Unlike the Diamond Series, this version of the ELA M 260 is not a historical replica of the original, but it still embodies the meticulous attention to detail and high-quality standards synonymous with Telefunken Elektroakustik. The ELA M 260's unique tonal character makes it a versatile tool, adept at recording a wide range of acoustic instruments, from violin, cello, and upright bass to drum overheads, percussion, woodwinds, and saxophones. It's particularly effective for capturing the rich resonance of an acoustic guitar and despite its compact size, it excels in vocal applications as well.

At the heart of the ELA M 260 is a new circuit design, centered around a New Old Stock (NOS) 5840W vacuum tube. This, coupled with a custom output transformer wound to precise specifications in the United States, results in a small diaphragm microphone that is both unique and reminiscent of the vintage microphones it was inspired by.

The ELA M 260 system comes equipped with an interchangeable TK60 Cardioid capsule, designed to capture sound sources in front of the microphone while minimizing sound from other directions. This makes it an ideal choice for recording live performances, interviews, or any situation where you want to focus on a specific sound source. Additional TK61 Omnidirectional and TK62 Hypercardioid capsules can be purchased separately for added versatility.

Each ELA M 260 system also includes a new M 902 power supply, an M 860 25' dual-shielded tube microphone cable with a right-angle female XLR connector, an M 761 elastic shock mount, and a durable hard shell zipper carrying case for safe storage and transport. Experience the difference of professional-grade audio recording with the ELA M 260 Small Diaphragm Vacuum Tube Microphone.

Telefunken ELA M 260 Features

  • A brilliant combination of tube warmth and small-diaphragm precision
  • Flattering tone and open top end complements most acoustic instruments
  • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
  • Vintage-inspired 5840W vacuum tube-based amplifier
  • Designed and hand assembled in the USA
  • Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads

Key Features

  • Capture pristine audio with this Telefunken condenser microphone's exceptional sound quality.
  • Achieve professional recordings using the ELA M 260's low noise, ideal for critical applications.
  • The cardioid polar pattern expertly isolates sound, reducing unwanted ambient noise effectively.
  • Enjoy a broad 20 Hz - 20 kHz frequency response, capturing every nuance of your performance.
  • Built with premium components, this microphone offers incredible build quality and lasting durability.
  • Connect easily with the included 7-Pin XLR cable, ensuring a stable, high-quality audio signal.

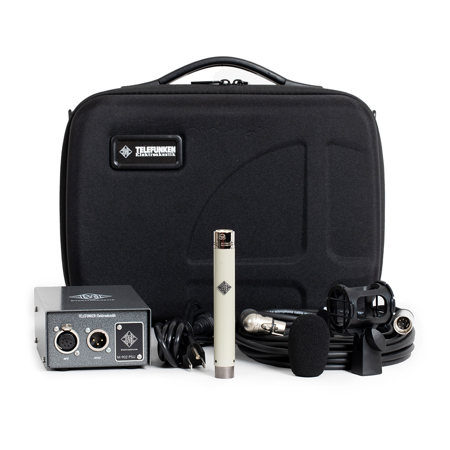

What's in the box:

  • Telefunken ELA M 260 Small Diaphragm Vacuum Tube Microphone
  • TK60 Cardioid Capsule
  • M 902 Power Supply
  • M 860 Right Angle 7-Pin XLR Tube Microphone Cable (7m)
  • M 761 Elastic Shock Mount
  • WS20 20mm Foam Windscreen
  • ZC60 Zipper Case
  • Telefunken 1 Year Limited Warranty
