TeachLogic Lay-In Ceiling Speaker Package
See all TeachLogic items

TeachLogic Lay-In Ceiling Speaker Package, Includes 2x SP-628L Speakers, Speaker Cable, 12" Frame, "T" Bar

SKU: TLLS2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TeachLogic Lay-In Ceiling Speaker Package Specifications

  • Power

    30 watts continuous

  • Impedance

    8Ohms

  • Frequency Response

    80 Hz to 15 kHz, +/- 6dB

  • Sensitivity

    89dB SPL (1W/1M)

  • Crossover Frequency

    6 kHz

  • Nominal Coverage Angle

    90 x 90degree

  • Driver

    6.5" / 16.51cm Polymica/rubber
    1" (2.54 cm) high efficient domed tweeter, neodymium

  • Enclosure Material

    Air sealed metal back can with infinite baffle

  • Termination

    Screw terminals for secure speaker wire connection

  • Mounting

    12 x 24" / 30.48 x 60.96cm lay-in speaker assembly

  • Thickness

    Panel: 0.62" / 1.57cm

  • Cable Length

    60' / 18.28m

  • Dimensions

    12.25 x 23.75 x 6.25" / 31.11 x 60.32 x 15.87cm
    With T-Bar Support: 13 x 23.75 x 6.25" / 33.02 x 60.32 x 15.87cm

  • Weight

    8lbs / 3.62kgMagnet: 10oz / 283.49kg

About TeachLogic Lay-In Ceiling Speaker Package

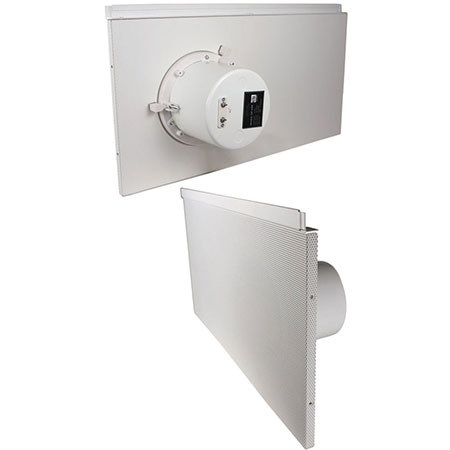

The TeachLogic Lay-In Ceiling Speaker Package contains two ceiling speakers and a speaker cable. The SP-628L is a full range compact coaxial ceiling speaker, providing low distortion and a smooth natural frequency response ideal for articulate vocal clarity. The SP-628L is a complete loudspeaker assembly, with 12"frame, perforated steel grill and integrated steel back can and attached "T" bar for finish edge. Quick installation with minimal tile cutting.

TeachLogic Lay-In Ceiling Speaker Package Features

  • Complete speaker assembly (12" X 24")
  • Perforated steel grill
  • Heavy duty support for anti rattle or movement
  • Attached adjoining T-bar
  • Air Sealed Metal Back Can
  • 6" Cone Driver with a 1" Mylar Dome Tweeter
  • Frequency Response: 80-15,000 Hz
  • Power Handling: 30 watts Continuous
  • Impedance: 8, screw terminal
  • Completely painted, tile white
  • No speaker assembly required
  • Quick and efficient installation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Complete speaker assembly (12" X 24")
  • Perforated steel grill
  • Heavy duty support for anti rattle or movement
  • Attached adjoining T-bar
  • Air Sealed Metal Back Can
  • Frequency Response: 80-15,000 Hz

What's in the box:

  • TeachLogic 2x SP-628L Lay-In Ceiling Speaker
  • 12 " Frame
  • Perforated Steel Grill
  • Integrated Steel Back Can
  • Attached "T " Bar
  • Speaker Cable
  • TeachLogic 5 Year Limited Warranty
