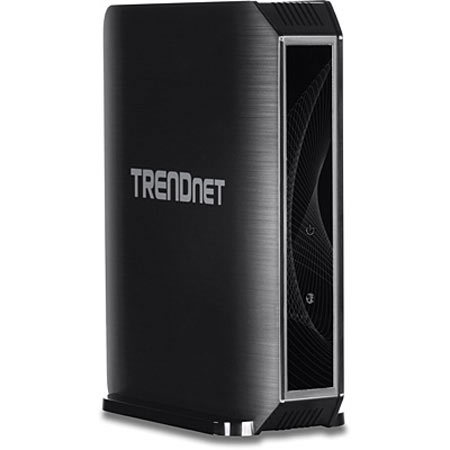

TRENDnet TEW-823DRU AC1750 Dual Band Wireless Router, Version v1.0R
TRENDnet TEW-823DRU Video #1
TRENDnet TEW-823DRU: Picture 1 thumbnail
See all TRENDnet items

TRENDnet TEW-823DRU AC1750 Dual Band Wireless Router, Version v1.0R

SKU: TNTEW823DRU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TRENDnet TEW-823DRU Specifications

  • Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3az
    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps)
    IEEE 802.11ac (draft 2.0, up to 1300 Mbps)

  • Hardware Interface

    4x Gigabit LAN ports
    1x Gigabit WAN port
    1x USB 2.0 (Storage FTP, Samba)
    Power switch
    WPS button
    Reset button
    LED indicators

  • Special Functions

    Multi-Language interface: English, French, Spanish, German, Russian
    Pre-encrypted wireless network
    IPv6 support
    1 guest network per band with option for internet access only
    Up to 2 additional SSIDs per band
    Dynamic DNS support for dyn.com, no-ip.com and easydns.com
    Samba/FTP server support
    Implicit and Explicit Beamforming

  • Access Control

    Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
    Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
    ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
    Parental (Access) Controls: MAC, URL, IP Filter

  • Quality of Service

    WMM
    Inbound/outbound 5 priority queues

  • Internet Connection Types

    Dynamic IP (DHCP)
    Static IP (Fixed)
    PPPoE (Dynamic IP/Static IP)
    PPTP (Dynamic IP/Static IP)
    L2TP(Dynamic IP/Static IP)
    Russia PPPoE (Dynamic IP/Static IP)
    Russia PPTP (Dynamic IP/Static IP)
    Russia L2TP (Dynamic IP/Static IP)
    IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)

  • Management/Monitoring

    Local/remote web based management
    Upgrade firmware
    Backup/restore configuration
    Internal logging
    Reboot
    Restore to factory defaults
    Ping test

  • Routing

    Static
    Dynamic (RIP v1/2)

  • Frequency

    2.412 - 2.472 GHz
    5.180 - 5.825 GHz

  • Modulation

    802.11b: CCK, DQPSK, DBPSK
    802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
    802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
    802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

  • Media Access Protocol

    CSMA/CA with ACK

  • Antenna Gain

    2.4 GHz: 3 x 2 dBi (max.) internal; 5 GHz: 3 x 3 dBi (max.) internal

  • Wireless O/P Power/Receiving Sensitivity

    802.11a: 20 dBm (max.)/-65 dBm (typical) at 54 Mbps
    802.11b: 23 dBm (max.)/-83 dBm (typical) at 11 Mbps
    802.11g: 23 dBm (max.)/-65 dBm (typical) at 54 Mbps
    802.11n (2.4 GHz): 22 dBm (max.)/-61 dBm (typical) at 450 Mbps
    802.11n (5 GHz): 20 dBm (max.)/-61 dBm (typical) at 450 Mbps
    802.11ac: 20 dBm (max.)/-51 dBm (typical) at 1300 Mbps

  • Wireless Channels

    2.4 GHz: FCC: 1-11; ETSI: 1-13
    5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

  • Power

    Input: 100 - 240V AC, 50 - 60Hz, 0.8A
    Output: 12V DC, 2A external power adapter
    Consumption: 18Watts max

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    Max. 95% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    72 x 151 x 191mm / 2.83 x 5.94 x 7.52"

  • Weight

    408g / 14.39oz

  • UPC Code

    710931130447

About TRENDnet TEW-823DRU

TRENDnet's AC1750 Dual Band Wireless Router, model TEW-823DRU, is an extreme performance wireless router. It creates two concurrent wireless networks - a 1300 Mbps Wireless AC network and a 450 Mbps Wireless N network to connect common wireless devices. Use the USB port and Gigabit Ethernet ports to further expand your network.

• AC1750: 1300 Mbps Wireless AC + 450 Mbps Wireless N bands
• Pre-encrypted for your convenience
• Create an isolated guest network
• One touch network connection with the WPS button
• All Gigabit wired ports
• USB share port
• High power amplifiers extend wireless coverage
'• Energy saving GREENnet technology

Ease of Use

Easy Setup
Get up and running in minutes with the intuitive guided setup.

One Touch Connection
Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button.

USB Share Port
Plug in a flash or storage drive into the USB port.

Access Control

Encrypted Wireless
For your convenience the router arrives pre-encrypted with its own unique password.

Guest Network
Create an isolated network for guest internet access only.

Parental Controls
Control access to specific websites or types of content.

Performance

Next Generation Wireless AC
802.11ac provides uninterrupted HD video streaming in a busy connected home.

Simultaneous Dual Band
High speed 1300 Mbps Wireless AC band + 450 Mbps Wireless N.

Gigabit Ports
Gigabit ports extend high performance wired connections.

Wireless Coverage
Whole home wireless coverage for average size homes.

Backward Compatible
Compatible with legacy wireless devices.

Targeted Beamforming
Increased real-time performance by directing stronger wireless signals to your specific location.

Energy Savings
Embedded GREENnet technology reduces power consumption by up to 50%.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • TRENDnet TEW-823DRU AC1750 Dual Band Wireless Router
  • 5' Network Cable
  • Power Adapter (12V DC
  • 2A)
  • CD-ROM (User's Guide)
  • Multi-Language Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty
