TRENDnet NVR Kit Specifications

  • NVR: Video Input

    4 PoE channels

  • NVR: Video Output

    HDMI and VGA display outputs
    Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 758 at 60Hz

  • NVR: Audio

    Analog audio in/out (2.0 Vp-p, 1kOhm)

  • NVR: Storage

    Supports one 3.5" SATA I/II HDD
    Comes with a pre-installed 1TB HDD. Upgradeable to 4TB SATA I/II HDD)

  • NVR: Network Standards

    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af

  • NVR: Device Interface

    10/100 Mbps network port
    4 x 10/100 Mbps PoE camera network ports
    2 x USB 2.0 ports
    HDMI port
    VGA port
    Analog audio in port
    Analog audio out port
    Power port
    LED indicators (Power, Storage, and Network)
    Grounding point

  • NVR: Network Protocol

    IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
    DHCP, NTP, DNS, DDNS, SMTP, FTP
    HTTP, UPnP, RTSP, RTP, RTCP

  • NVR: Power

    Input: 100 - 240 V AC, 50/60 Hz, 1.5 A
    Output: 48 V DC, 1 A
    Consumption: 50 Watts (with HDD and Max. PoE PD
    PoE power budget: 35 Watts

  • NVR: Management Interface

    Live view: Single camera or quad-view
    Camera management:
    On screen display: camera name, date, week and date format
    Image quality: brightness, contrast, saturation, hue, mirror
    PTZ: pan, tilt, zoom, focus, iris, preset points, pattern, cruise, patrol
    Motion detection: define custom motion detection areas, motion sensitivity and triggering channels

  • NVR: Management Interface(cont.)

    Privacy masks: define custom privacy mask areas
    Video tamper detection: trigger actions if the viewing field darkens suddenly
    Video loss detection: trigger actions if the setup video is lost
    Scheduled recording: continuous and motion detection
    Video recording: Record up to Full 1080p HD video

  • NVR: Management Interface(cont..)

    Recording time: (A) 6.5 days of recording per camera: 4x cameras with continuous recording at 1280 x 960 at 30 fps; (B) 8.5 days of recording per camera: 4x cameras with continuous recording at 720p at 30 fps
    Holiday scheduling for custom recording schedules during observed holidays
    Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
    Video export: tag, cut and export video clips

  • NVR: Management Interface(cont...)

    HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
    USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage
    Local live view settings: define screen layout and channel viewing sequence

  • NVR: Management Interface(cont....)

    Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login and recording exceptions
    Supported dynamic DNS services: Dyn.com and NO-IP.com
    Management Setting: maximum 32 user accounts
    Traffic chart and statistics for network management
    IPv6 support
    ONVIF compliant

  • NVR: Remote Viewing and Management

    User interface compatible with Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher, Chrome 24.0 or higher

  • Camera: Lens

    Focal length: 4mm
    Focal depth: 20cm +
    Aperture: F2.0
    Board lens
    Sensor: 1/3" progressive scan CMOS

  • Camera: Viewing Angle

    Horizontal: 70 deg.
    Vertical: 52 deg.
    Diagonal: 89 deg.

  • Camera: Zoom

    User-defined digital zoom

  • Camera: Minimum Illumination

    IR off: 0.01 lux
    IR on: 0 lux
    30 meter IR illumination distance
    Smart IR

  • Camera: Video

    D-WDR: 0-100 scale
    Shutter speed: 1/3 - 1/10,000
    H.264: 1280 x 960 up to 30 fps
    MJPEG: 704 x 480 up to 30 fps

  • Camera: Hardware Standards

    IEEE 802.1X
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af

  • Camera: Device Interface

    10/100 Mbps PoE port
    Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
    Grounding point
    Integrated articulated mounting base
    Reset button

  • Camera: Housing

    Weather rating: IP66

  • Camera: Network Protocol

    IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
    DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
    NFS, SMB/CIFS
    HTTP, HTTPS
    PPPoE
    UPnP, Bonjour, RTSP, RTP, RTCP, SSL

  • Camera: Power

    Input: PoE (802.3af)
    Consumption: 7 Watts max.

  • Camera: Power Supply

    Output: 12 V DC 1 A
    5.5 mm barrel connector
    TRENDnet power adapter, model 12VDC1A, sold separately

  • Management Interface

    Multi-language support: English, French, German, Russian and Spanish
    IP address filter
    QoS traffic prioritization
    Time, date and text overlay

  • Management Interface(cont.)

    Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 - 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
    D-WDR enhances video quality in high contrast daytime lighting
    3D Digital Noise Reduction enhances night vision quality
    Scheduled recording: continuous and motion detection

  • Management Interface(cont..)

    Video storage: to computer, NAS, SMB/CIFS share or through software
    Motion detection fields: define custom motion detection areas, motion sensitivity and dynamic motion analysis
    Privacy masks: define custom privacy mask areas
    Video tamper detection: email notification if the viewing field darkens suddenly
    Video playback interface: playback recorded video from remote storage

  • Management Interface(cont...)

    Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
    Alert messages: storage full, storage error and illegal login
    Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
    Supported dynamic DNS services: Dyn.com and NO-IP.com

  • Management Interface(cont....)

    Management Setting: maximum 32 user accounts
    Supports remote management
    Compatibility: Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher, Chrome 24.0 or higher

  • Certifications

    NVR: CE
    FCC

    Camera: CE
    FCC
    UL 60950

  • Operating Temperature

    NVR: -10 to 55 deg. C / 14 to 131 deg. F
    Camera: -30 to 60 deg. C / -22 to 140 deg. F

  • Operating Humidity

    NVR: Max. 95% non-condensing
    Camera: 95% non-condensing

  • Dimensions

    NVR: 199 x 199 x 47mm / 7.83 x 7.83 x 1.85"
    Camera: 60 x 60 x 152mm / 2.36 x 2.36 x 5.98"

  • Weight

    NVR: 1.2kg / 2.65lbs
    Camera: 375g / 13.23oz

  • UPC Code

    710931110630

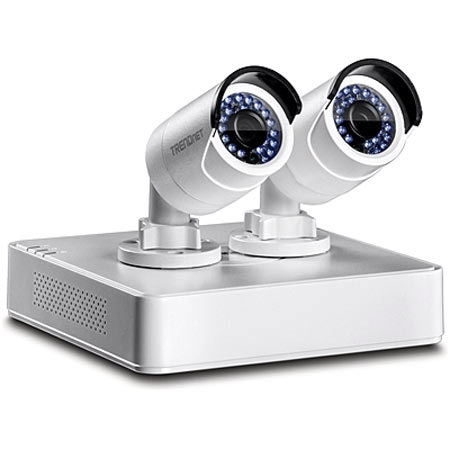

About TRENDnet NVR Kit

TRENDnet's standalone 4-Channel HD PoE NVR Kit, model TV-NVR104K, offers a comprehensive video display, storage and management solution which features a plug and play PoE camera installation. The TV-NVR104K comes with a pre-installed 1 TB hard drive and two powerful TV-IP320PI Outdoor 1.3 MP HD PoE IR Network Cameras. The NVR networks and powers up to four PoE cameras, auto-recognizes TRENDnet cameras, records over 6.5 days of continuous video and supports advanced video playback.

• Standalone 4-Channel PoE network video recorder
• Pre-installed 1 TB SATA HDD
• Includes two TRENDnet TV-IP320PI outdoor ready HD cameras
• Plug and play up to 4 PoE cameras
• Video recording supported up to Full HD 1080p
• Over 6.5 days continuous recording
• ONVIF compliant

All-in-One HD NVR
This HD NVR comes with a pre-installed 1 TB hard drive, two 720p PoE outdoor cameras, network cables and a mouse. (display sold separately)

Plug, Play & Power
The NVR auto-recognizes and powers TRENDnet PoE cameras-simply connect the two included 720p cameras and add up to two more TRENDnet PoE cameras.

Intuitive Interface
Users will find the management interface intuitive and easy to use-quickly navigate live view preferences, recording schedules and advanced playback options.

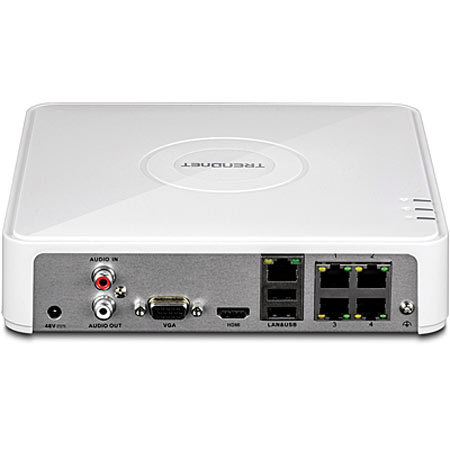

TV-NVR104 Hardware

PoE Ports
Plug and play PoE network cameras to the four PoE (IEEE 802.3af) ports with a total PoE budget of 35 Watts

Storage Bay
Pre-installed 1 TB SATA hard drive

Network Port
Ethernet network port

Display Ports
HDMI and VGA display ports

Audio Ports
Audio in and out ports

USB Ports
One USB port for the included mouse and one for configuration backup and firmware upgrade

TV-NVR104 Management

Remote Access
Access the NVR over the internet

Camera Setup
Auto-recognizes compatible TRENDnet cameras

Live View
Single camera and quad-view modes with variable-time auto-scan function

Camera Management
For each camera, manage on screen display, image settings, PTZ functionality, motion detection, privacy masks, tamper detection and video loss

Video Recording
Record up to Full 1080p HD video at 30 fps in H.264 compression (included TV-IP320PI cameras record up to 1280 x 960)

Recording Time
• (A) 6.5 days of recording per camera: 4x cameras with continuous recording at 1280 x 960 at 30 fps
• (B) 8.5 days of recording per camera: 4x cameras with continuous recording at 720p at 30 fps

Scheduled Recording
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full.

Advanced Playback
Advanced archived video playback with a quick reference timeline and calendar

Video Export
Quickly export specific video types over a specified time

Dynamic DNS Support
Support for dyn.com and NO-IP.org

IPv6
IPv6 support

ONVIF
ONVIF compliant

TV-IP320PI Hardware

Adjustable Bracket
Fully adjustable integrated mounting bracket provides installation flexibility

PoE
Save installation costs with Power over Ethernet (IEEE 802.3af)

Outdoor Ready
Outdoor IP66 weather rated and an operating temperature range of -30 - 60 deg.C (-22 - 140 deg.F)

1.3 Megapixel
Record 1280 x 960 pixel HD video at 30 fps in H.264 compression

Night Vision
Night vision up to 30 meters (100 ft.) in complete darkness

Smart IR
Dynamic IR adjustment optimizes night visibility

D-WDR
Digital Wide Dynamic Range improves video quality in high contrast lighting environments

IPv6
IPv6 support

ONVIF
ONVIF compliant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TV-NVR104K 4-Channel HD NVR with 1TB HDD
  • 2x Indoor/Outdoor IP Cameras
  • CD-ROM (User's Guide)
  • 2x 100' Network Cable
  • 6' Network Cable
  • 6' HDMI Cable
  • Optical Mouse
  • Power Adapter (48V DC
  • 1A)
  • Multi-Language Quick Installation Guide
  • TRENDnet 2 Year Limited Warranty for NVR and 3 Year Limited Warranty for Network Camera
