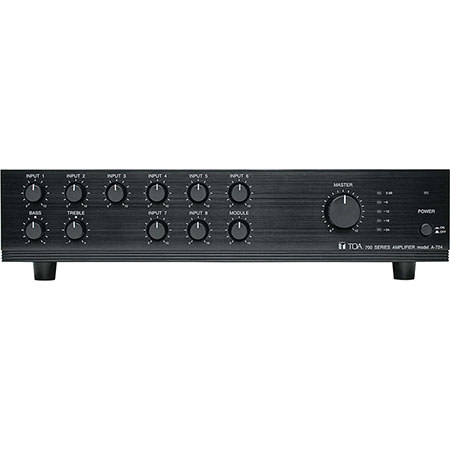

TOA Electronics A-724 9-Channel 240 Watt Mixer/Amplifier
See all TOA Electronics items

TOA Electronics A-724 9-Channel 240 Watt Mixer/Amplifier, 50Hz-20kHz Frequency Response, +/-10dB Bass and Treble, Two Auxiliary Inputs

SKU: TOA724

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?FRANCISCO A : great item and good pricing

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics A-724 Specifications

  • Power Source

    120V AC, 60Hz

  • Rated Output

    240W

  • Power/Current Consumption

    565W (rated output), 215W (Based on UL60065), under 60mA (When power is switch Off)

  • Frequency Response

    50-20000Hz (+/-3dB)

  • Distortion

    Under 2% at 1kHz, rated power

  • Input

    Input 1-6: -70 to -50dB, 600 Ohm (MIC) /-10dB, 600 Ohm (Line)
    Input 1: Transformer-balanced, removable terminal block (3 pins)
    Input 2-6: Electronically-balanced, removable terminal block (3 pins)
    Input 7-8 (Line): -20dB, 10kOhm, unbalanced, RCA Jack
    Module:-20dB, 10 kOhm
    PWR Amp in: 0dB, 10kOhm, unbalanced RCA jack (An equalizer or other signal processor connectable between PRE AMP OUT and PWR AMP IN terminals)

  • Output

    REC Out: 0dB, 600 Ohm, unbalanced, RCA jack
    PRE AMP OUT: 0dB, 600 Ohm, unbalanced, RCA jack
    Speaker Out: 70V line (42 Ohm), 25V line (5.2 Ohm) and 4-16 ohm, removable terminal block (4 pins)

  • Phantom Power (+23 V DC)

    On or Off for each Input 1-6 (Mic input) with Switch setting

  • S/N ratio (band pass: 20-20000Hz)

    Over 55dB (Input 1-6, mic trim volume: max 600 Ohm terminated
    Over 70dB (Input 1-6, mic trim volume: min 600 Ohm terminated
    Over 76dB (Master volume max.)
    Over 90dB (All input volume min)

  • Tone Control

    Bass: +/-10dB at 100Hz
    Treble: +/-10dB at 10Hz

  • Control Input

    Remote Volume: Removable terminal block
    Power remote: No-voltage make contact input, open voltage: under 14V DC, short circuit: under 0.5mA, removable terminal block
    Mute Control: No-voltage make contact input, open voltage: under 17V DC, short circuit: under 1.5mA, removable terminal block

  • Indicator

    5-point LED output level meter, Power indicator LED

  • Operating temperature

    14 deg. F to 104 deg. F (-10 deg. C to +40 deg. C)

  • Finish

    Panel: ABS resin, black hair line
    case: Steel plate, black

  • Dimensions (W x H x D)

    420 x 107.7 x 351.5mm / 16.53 x 4.24 x 13.83"

  • Weight

    13.5kg / 29.76lbs

About TOA Electronics A-724

The TOA Electronics A-724 9-Channel 240 Watt Mixer/Amplifier offers versatile features and outstanding value for installed sound applications such as boardrooms, educational facilities, houses of worship and many others. Features include six mic/line inputs, two auxiliary line inputs and a 900 Series module port. Each mic/line input includes a mic trim control and 23 VDC phantom power. Speaker outputs consist of 70.7 V, 25 V and 4 ohm. An auxiliary line output can be used for recording or connection to an external booster amplifier.

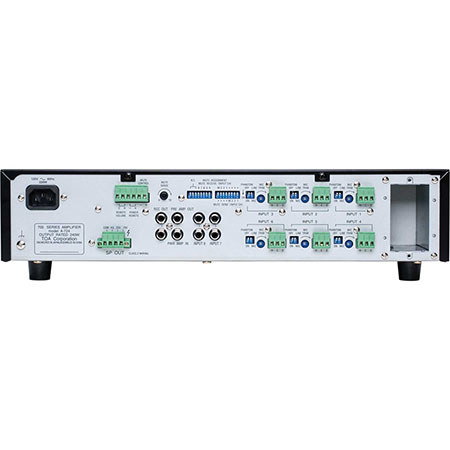

An Auto-Mute function provides voice-activated priority override. You can assign inputs to activate or respond to the muting function with rear panel DIP switches. Muting can also be activated with an external switch-closure. Other features include channel and master volume controls, bass/treble, processor insert jacks and output level meter. Master volume and power on/off can also be controlled remotely. Short-circuit and thermal protection circuitry ensures extended operation.

TOA Electronics A-724 Features

  • Nine Channel Integrated Mixer/Amplifiers for paging and background/foreground music distribution
  • Proven TOA Quality and Reliability with wide frequency response, very low noise and distortion and excellent output regulation
  • Six Mic/Line Inputs, balanced, with mic trim, 23 VDC phantom power and removable terminal block connector
  • Two Auxiliary Inputs, unbalanced, with dual-RCA jacks for convenient connection of stereo sources
  • Module Slot accepts 900 Series plug-in modules with additional features
  • Transformer-Isolation for Telephone Paging Applications (Input #1)
  • 25 V, 70.7 V and 4 Ohm Speaker Outputs with removable terminal block connector
  • Auto-Mute Priority Function assignable via external switches: Channels 1-3 and Module configurable as Mute Send, Channels 1-8 and Module configurable as Mute Receive
  • Auto-Mute SENSE Control for adjusting mute activation threshold
  • External Mute Terminals for activating mute function with external switch-closure
  • Individual Channel and Master Volume Controls
  • Bass/Treble Tone Controls
  • Output Level Meter and Power Indicator
  • Remote Master Volume controlled with an external 10k ohm linear-taper potentiometer
  • Auxiliary Output for connecting an external amplifier or recording device
  • Pre-amp. Out / Power Amp. In Insert Jacks for connecting external signal processors
  • Remote AC Turn-On for activating power with an external switch-closure>
  • Turn-On Delay disconnects output during power-up
  • Over-current and Thermal Protection Circuitry prevents potential damage from overloads, short-circuit and overheating
  • Detachable IEC-type AC Power Cord
  • UL / cUL Listed

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Auto-Mute assignable via external switches
  • Individual Channel and Master Volume Controls
  • Bass/Treble Tone Controls
  • Output Level Meter and Power Indicator
  • Turn-On Delay disconnects output during power-up
  • Detachable IEC-type AC Power Cord

What's in the box:

  • TOA Electronics A-724 9-Channel 240 Watt Mixer/Amplifier
  • 4x YA-920 Volume Control Security Knobs
  • TOA Electronics 5 Year Limited Warranty
