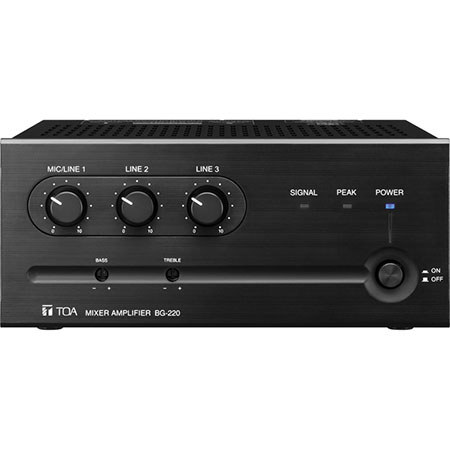

TOA Electronics BG-220 20W 3 Channel Amplifier & Mixer, 50Hz-20kHz Frequency Response, 2x Line Inputs with RCA Inputs, Recessed Bass & Treble Control

SKU: TOBG220CU MFR: BG220CU
Earn VIP Reward Points

Key Features

  • Experience clear audio with this 20W amplifier mixer, perfect for small venues.
  • This 3-channel amplifier offers versatile input options, including RCA for easy setup.
  • Enjoy precise sound shaping with recessed bass and treble EQ control features.
  • Get durable performance with TOA's reliable amplifier design, built for lasting use.
  • Ideal for paging systems, this amplifier mixer ensures clear voice and music output.
  • Easily manage your sound with intuitive gain controls on each channel of this mixer.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics BG220 Specifications

  • Power Source

    120 V AC, 60 Hz

  • Rated Output

    20W

  • Power Consumption

    60 W (rated output), 36 W (based on cULus standards)

  • Frequency Response

    50 Hz - 20kHz

  • Total Harmonic Distortion

    0.5% or less, at 1 kHz, rated output

  • Input

    Mic.: -60 dB*/Line 1: -10 dB, Mic/Line 1 selectable, 600 Ohm, electronically balanced, removable terminal block
    Line 2, 3: -10 dB, 10 kOhm, unbalanced, removable terminal block or RCA jack

  • Output

    Speaker: 4 Ohm, 25 V (31 Ohm) and 70 V (245 Ohm) balanced, removable terminal block
    MOH: 0 dB, 600 Ohm, balanced, removable terminal block
    Line: 0 dB, 600 Ohm, unbalanced, removable terminal block

  • Output Regulation

    2 dB or less, no load to full load (1k Hz)

  • S/N Ratio

    Mic/Line 1: 60 dB or more/Line 2, 3: 80 dB or more
    (Band Pass: 20 Hz - 20k Hz, Tone Controls: Centered)

  • Tone Control

    Bass: +/-10 dB at 100 Hz, Treble: +/- 10 dB at 10k Hz

  • Control

    Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1), Mic /Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch

  • Indicator

    Power LED, Signal level LED, Peak LED

  • Other Feature

    Automatic electronic drive limiter

  • Operating Temperature

    0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)

  • Operating Humidity

    35 % to 80 % RH (no condensation)

  • Finish

    Panel: ABS resin, black/Case: Steel plate, black, paint

  • Dimensions (W x H x D)

    8.27 x 3.71 x 10.43" / 21 x 9.42 x 26.49cm

  • Weight

    3.5 kg (7.72 lbs)

About TOA Electronics BG220

Be at the forefront of audio performance with the TOA Electronics BG-220 20W 3 Channel Amplifier & Mixer. This high-quality, durable unit is engineered to deliver powerful and clear sound, making it an ideal choice for banquet rooms, bars, and retail environments seeking an advanced audio solution.

The BG-220 boasts a broad frequency response range of 50Hz-20kHz, ensuring that it can reproduce a wide spectrum of audio with precision. With its three channels, this versatile amplifier and mixer can seamlessly handle multiple audio inputs, allowing for a rich and layered sound experience.

Equipped with one Mic/Line input and two additional Line inputs featuring RCA connectors, the BG-220 provides flexible connectivity options for a variety of audio sources. The recessed bass and treble controls are intuitively designed for users to effortlessly fine-tune the audio output, ensuring that the sound is tailored to the specific acoustics of any space or personal preference.

For added convenience, the BG-220 includes an MOH (Music On Hold) Out feature, perfect for businesses that require a professional audio presence on calls. The rear-mounted terminal blocks are removable, simplifying the installation process and making it more accessible for setup and maintenance.

Quick settings are a breeze with the provided DIP switches, allowing for fast and efficient configuration. Additionally, the ZONE 2 OUT feature offers system expansion capabilities, ensuring that your audio setup can grow and adapt to the changing needs of your venue.

Whether you're a musician, DJ, or a business owner looking to enhance your audio environment, the TOA Electronics BG-220 20W 3 Channel Amplifier & Mixer stands out as a robust and reliable choice that will elevate the auditory experience for your audience.

TOA Electronics BG220 Features

  • Massive Power supply for high-quality, reliable sound
  • All inputs and outputs on removable Euro-block connections for easier installation
  • 3x Inputs: Mic/Line 1 w/ Balanced phoenix input and Manual Mute Trigger; Line 2 w/ phoenix & RCA summing connector; Line 3 w/ phoenix & RCA summing connector
  • Input 1 selectable between Mic/Line input level
  • MOH/Zone2 balanced line output assignable via rear-panel dip switches. Selects any or all three input channels-no muting. Can be used for Music on Hold or 2nd Zone
  • Mute receive assignable for channels 2 & 3 on rear-panel dip switches. Mute can be activated via "VOX" or "Contact In" signal
  • Mute Sensitivity and MOH/Zone 2 are both level adjustable
  • Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
  • Unbalanced Line Output can be used for an extra zone or for recording
  • Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones
  • Input Signal present, Peak & Power On indicators on front panel
  • Supplied security cap (YA-920 x1) for volume knob to prevent unauthorized adjustment
  • Thermal Overload Protection circuit with rear panel reset breaker
  • UL/cUL Listed

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience clear audio with this 20W amplifier mixer, perfect for small venues.
  • This 3-channel amplifier offers versatile input options, including RCA for easy setup.
  • Enjoy precise sound shaping with recessed bass and treble EQ control features.
  • Get durable performance with TOA's reliable amplifier design, built for lasting use.
  • Ideal for paging systems, this amplifier mixer ensures clear voice and music output.
  • Easily manage your sound with intuitive gain controls on each channel of this mixer.

What's in the box:

  • TOA Electronics BG-220 20W 3 Channel Amplifier & Mixer
  • 3x YA-920 Security Caps
  • TOA Electronics 5 Year Limited Warranty
