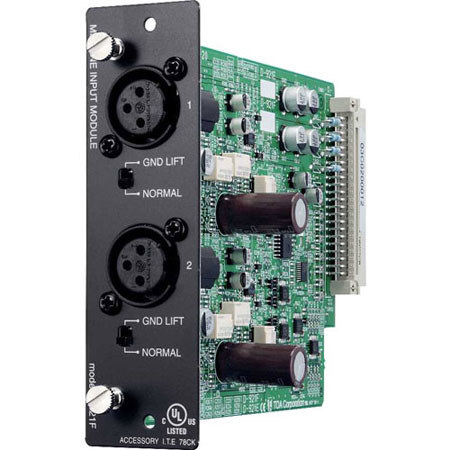

TOA Electronics D921F 2x Mic/Line 20-Bit Input Module for D-901 and DP-K1 Digital Mixers, 20 - 20,000Hz Frequency Response

SKU: TOD921F MFR: D921F
Earn VIP Reward Points

Key Features

  • Expand your mixer's capabilities with this dual mic/line input module.
  • Achieve pristine sound quality with the 20-bit A/D conversion.
  • Versatile input module compatible with D-901 and DP-K1 digital mixers.
  • Enjoy a wide frequency response (20-20,000 Hz) for clear audio reproduction.
  • Minimize noise with the ground lift switch on this input module.
  • Durable steel plate construction ensures lasting performance for your mixer.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics D921F Specifications

  • Compatibility

    D-901 and DP-K1 Digital Mixers

  • Input

    2 channels, Mic/Line changeable
    Mic: -50/-36 dB, 4.7 kOhm, electronically-balanced, equivalent to XLR-3-31 type
    Line: -10/+4 dB, 10 kOhm, electronically-balanced, equivalent to XLR-3-31 type
    Phantom power supply (+15 V, can be used when set for the microphone)
    Ground lift switch

  • A/D Converter

    20 bits

  • Sampling Frequency

    48 kHz

  • Frequency Response

    20 - 20,000 Hz, +/-1 dB (+4 dB input)

  • Dynamic Range

    Over 100dB (IHF-A weighted) (+4 dB input)

  • Total Harmonic Distortion

    Under 0.05% (+4 dB input)

  • Finish

    Panel: Pre-coated steel plate, black (30% glossy)

  • Dimensions (W x H X D)

    35 x 119.5 x 178.4mm / 1.37 x 4.70 x 7.02"

  • Weight

    150g / 5.29oz

Models
TOA Electronics D921F 2x Mic/Line 20-Bit Input Module for D-901 and DP-K1
$289.00

$357.00

Save:$68.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics D-921E 2x Mic/Line Input Module, 24-bit A/D Converters
$289.00

$357.00

Save:$68.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics Ambient Noise Controller Module for 9000 Amplifiers
$306.00

$379.00

Save:$73.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Accessory TypeI/O ExpansionI/O ExpansionI/O Expansion

About TOA Electronics D921F

Enhance your audio mixing capabilities with the TOA Electronics D921F 2x Mic/Line 20-Bit Input Module, meticulously engineered for seamless integration with the D-901 and DP-K1 digital mixers. This robust and reliable module is equipped with two 3-pin XLR female connectors, adept at accommodating both balanced mic and line level signals with precision and ease.

Crafted for the discerning audio professional, the D921F boasts 20-bit A/D converters, ensuring high-quality sound reproduction with exceptional clarity and detail. The expansive frequency response range of 20-20,000Hz makes this input module a versatile tool, suitable for capturing a wide spectrum of sounds, from the deepest bass to the highest treble.

For users utilizing condenser microphones, the D921F simplifies your setup by providing onboard phantom power, eliminating the need for external power sources. Additionally, the adjustable input gain allows for meticulous control over the signal strength, ensuring optimal sound levels for each recording or live performance.

Innovative design elements include ground-lift switches for each input, a user-friendly feature that helps to prevent ground loop issues and maintain the integrity of your audio signal. The durable construction of the D921F ensures it can withstand the rigors of both studio and field use, making it an indispensable component of your audio equipment arsenal.

Choose the TOA Electronics D921F 2x Mic/Line 20-Bit Input Module for its compatibility with top-tier digital mixers, its ability to handle a broad range of audio applications, and its commitment to delivering high-quality, user-friendly operation. Whether you're recording in the studio or managing live sound, this input module is designed to elevate your audio experience.

TOA Electronics D921F Features

  • High-quality 2x Mic/Line 20-Bit Input Module for professional audio mixing
  • Compatible with D-901 and DP-K1 digital mixers for versatile use
  • Features two 3-pin XLR female connectors for balanced mic or line level signals
  • Equipped with 20-bit A/D converters for superior sound quality
  • Offers onboard phantom power for condenser microphones
  • Includes adjustable input gain and ground-lift switches for optimal audio control

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Expand your mixer's capabilities with this dual mic/line input module.
  • Achieve pristine sound quality with the 20-bit A/D conversion.
  • Versatile input module compatible with D-901 and DP-K1 digital mixers.
  • Enjoy a wide frequency response (20-20,000 Hz) for clear audio reproduction.
  • Minimize noise with the ground lift switch on this input module.
  • Durable steel plate construction ensures lasting performance for your mixer.

What's in the box:

  • TOA Electronics D921F 2x Mic/Line 20-Bit Input Module for D-901 & DP-K1 Digital Mixers
  • TOA Electronics 5 Year Limited Warranty
