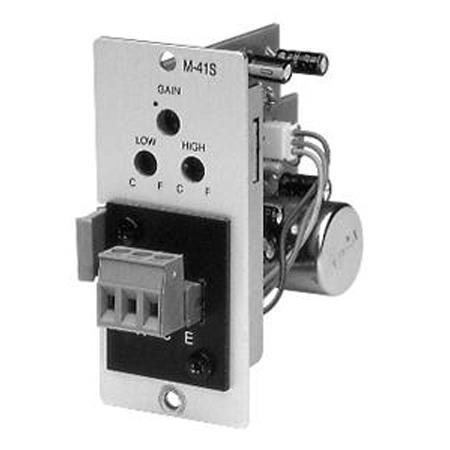

TOA Electronics Microphone Input Module with Mute-Send and Removable Terminal Block for 900 Series Amplifiers, 25Hz - 20kHz Frequency Response

SKU: TOM41S MFR: M41S
$109.00
$136.00
Save: $27 (20%)
Earn VIP Reward Points

Key Features

  • Enhance your amplifier's compatibility with this TOA microphone input module.
  • Achieve superior sound quality with a wide 25Hz-20kHz frequency response.
  • Reduce unwanted noise in your audio setup; noise output under 50uV!
  • Enjoy easy setup with the removable terminal block for quick connections.
  • Durable design ensures long-lasting performance for your 900 Series Amps.
  • Optimize your amplifier value with mute-send functionality for clear audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics M41S Specifications

  • Power Source

    24V DC

  • Current Consumption

    Under 15mA

  • Input Sensitivity (Raated Output 100mV)

    0.2 - 5.0 mV

  • Low Cut Filter

    100Hz: -5 to -15dB

  • High Cut Filter

    10KHz: -7 to -13dB

  • Noise Output

    20 - 20,000Hz: Under 50uV

  • Frequency Response

    25Hz - 20kHz

  • Distortion

    Under 0.2%

  • Phantom Power

    Over 20V

  • Signal-Activated Muting

    0.3 - 0.8mV

  • Input connector

    3P terminal block

  • Output Connector

    6P card edge-Connector

  • Dimensions

    35 x 78 x 88mm / 1.37 x 3.07 x 3.46"

  • Weight

    80g / 2.82oz

Models
TOA Electronics Mic Input Module with Mute-Send and Removable Terminal Block
$109.00

$136.00

Save:$27.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics L-41S Line Matching Input Module with Mute-Send
$109.00

$136.00

Save:$27.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics Mic Input Module with Mute-Receive and Removable Terminal Block
$109.00

$136.00

Save:$27.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Accessory TypeI/O ExpansionI/O ExpansionI/O Expansion

About TOA Electronics M41S

Explore the advanced capabilities of the TOA Electronics Microphone Input Module, a precision-engineered accessory designed to enhance the functionality of your 900 series amplifiers. This module is an essential tool for audio professionals seeking to achieve impeccable sound quality with the convenience of intuitive features.

The module boasts a responsive mute-send function that is activated by the presence of a signal at the input terminals, ensuring seamless audio management during live events or recordings. This feature allows for quick muting and unmuting, providing users with greater control over their sound output.

Equipped with an adjustable gain, the microphone input module allows for meticulous modulation of the input level, ensuring that your audio is captured with the right intensity and clarity. Whether you're dealing with soft-spoken dialogue or powerful musical performances, this module gives you the flexibility to fine-tune your audio input to perfection.

The inclusion of high and low cut filters is a testament to the module's versatility, offering users the ability to sculpt the frequency response to their liking. By attenuating unwanted low-frequency rumble or high-frequency hiss, these filters help in delivering a cleaner, more focused sound that is free from distractions.

Phantom power is another standout feature of this module, providing the necessary voltage to condenser microphones directly through the microphone cable. This eliminates the need for external power supplies, streamlining your setup and ensuring that your condenser microphones perform at their best.

Connectivity is made simple and secure with a 3-pin removable terminal block connector. This robust connection system not only ensures a reliable audio signal but also allows for quick and easy installation or removal of the module, making it a breeze to integrate into your existing audio setup.

The TOA Electronics Microphone Input Module is designed to operate within a broad frequency range of 25Hz to 20kHz, capturing the full spectrum of sounds from the deepest bass to the highest treble. This wide frequency response guarantees that your audio is reproduced with fidelity and detail, making it ideal for a variety of applications.

Enhance your audio experience with this professional-grade microphone input module, and take the first step towards achieving superior sound quality in your amplification system.

TOA Electronics M41S Features

  • Advanced microphone input module designed for 900 series amplifiers
  • Responsive mute-send functionality for seamless audio management
  • Adjustable gain for precise modulation of input level
  • High and low cut filters for sculpting frequency response
  • Integrated phantom power for optimal condenser microphone performance
  • 3-pin removable terminal block connector for secure and easy connectivity
  • Broad frequency range of 25Hz to 20kHz for detailed sound reproduction

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Enhance your amplifier's compatibility with this TOA microphone input module.
  • Achieve superior sound quality with a wide 25Hz-20kHz frequency response.
  • Reduce unwanted noise in your audio setup; noise output under 50uV!
  • Enjoy easy setup with the removable terminal block for quick connections.
  • Durable design ensures long-lasting performance for your 900 Series Amps.
  • Optimize your amplifier value with mute-send functionality for clear audio.

What's in the box:

  • TOA Electronics Mic Input Module with Mute-Send and Removable Terminal Block for 900 Series Amplifiers
  • TOA Electronics 5 Year Limited Warranty
