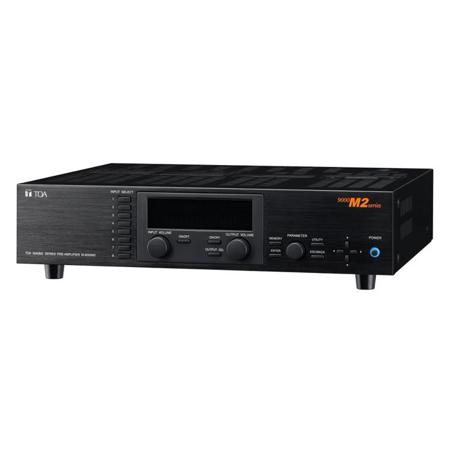

TOA Electronics M9000M2CU Digital Matrix Mixer with 2 Line Out, 20Hz - 20kHz Frequency Response, 8 Channels,

SKU: TOM9000M2CU MFR: M9000M2CU
Earn VIP Reward Points

Key Features

  • Achieve pristine audio clarity with this digital matrix mixer's low noise performance.
  • Customize your sound with the mixer's precise EQ control, shaping frequencies easily.
  • This 8-channel mixer is durable, ensuring reliable performance for years to come.
  • Seamlessly integrate with your system using the versatile inputs on this mixer.
  • Perfect for live sound, this mixer delivers top-notch sound quality for every performance.
  • Optimize your recordings with this mixer, offering a clean USB interface for easy capture.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics M9000M2CU Digital Matrix Mixer with 2 Line Out Specifications

  • Audio Input

    Maximum 8 channels, modular construction

  • Audio Output

    Preamplifier output 1, 2: 0dBV, 600, balanced, removable terminal block (3 pins)

  • Power Bandwidth

    20Hz - 20kHz, 0.008% THD

  • Frequency Response

    20Hz - 20kHz +1, -3dB

  • Total Harmonic Distortion

    0.008% (22kHz LPF, 1kHz, +10 dBV output)

  • Signal to Noise Ratio

    At Input short, 20Hz - 20kHz, All Flat or Off setting

  • Output volume min.

    90dB Output volume maximum
    61dB (input 1 volume: 0dB,other inputs: OFF)

  • Crosstalk

    64dB or more at 20kHz

  • Tone Control

    Bass: +/-12dB (at 100Hz)
    Treble: +/-12dB (at 10kHz)
    Parametric EQ: 10 bands
    Frequency Range: 20Hz - 20kHz, 31 steps, Various range: +/- 12dB

  • Various Range

    +/- 12dB

  • Speaker Equalizer

    30 (presets for TOA speakers)

  • High-Pass Filter

    -12dB/oct, Variable frequency range 20Hz - 20kHz, 31 steps

  • Low-Pass Filter

    -12dB/oct, Variable frequency range 20Hz - 20kHz, 31 steps

  • Compressor

    Depth 1 - 5

  • Delay

    0 - 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2) Scene/Paging Memory: 32/32

  • Auxiliary Function

    Key lock function

  • Control Input/Output

    RS-232C, D-sub connector (9P, female)

  • Control Input

    Control input: 4 inputs
    No-voltage make contact input
    Open voltage: 3.3V DC
    Short-circuit current: 1mA or less
    Removable terminal block control output: 4 outputs
    Open collector output
    Withstand voltage: 27V DC
    Control current: 50mA
    Removable terminal block remote volume: 2 channels
    Connect 0 - 10VDC removable terminal block

  • Power Source

    120V AC, 60Hz

  • Power Consumption

    40W

  • Operating Temperature

    14 deg. F to 104 deg. F / -10 deg. C to 40 deg. C

  • Operating Humidity

    35% to 80% RH (no condensation)

  • Finish

    Panel: Aluminum, Hair-line, Black
    Case: Surface-treated steel plate, black paint

  • Dimensions (W x H x D)

    Without Feet: 16.54 x 3.5 x 13.9" / 420.12 x 88.9 x 353.06mm
    With Feet: 16.54 x 4.24 x 13.9" / 420.12 x 107.7 x 353.06mm

  • Weight (without modules)

    13.23lbs / 6kg

About TOA Electronics M9000M2CU Digital Matrix Mixer with 2 Line Out

Over the years, the TOA Electronics M9000M2CU Digital Matrix Mixer has set a new standard in the realm of audio mixing technology. This sophisticated device is not just a mixer; it's an advanced integration of a modular matrix mixer, a high-performance digital signal processor (DSP), and robust amplifiers, all within a sleek, two-rack space design.

Crafted for reliability and durability, the M9000M2CU stands out as a high-quality solution for multi-zone paging, music distribution, and room-combining applications. Its versatility is unmatched, featuring both dual and single-channel amplifiers that cater to high or low impedance outputs, as well as a matrix mixer-only variant. This allows for the creation of easily configured, custom systems that can accommodate up to eight mic/line inputs and eight outputs, making it a prime choice for professionals in need of a sophisticated audio mixing solution.

The chassis of the M9000M2CU boasts two line output channels, each equipped with built-in DSP capabilities. These include a ten-band parametric EQ, a compressor, delay, and more, ensuring that users have complete control over their audio output. The input and output modules are further enhanced with additional DSP, providing a comprehensive suite of tools for precise audio manipulation.

One of the standout features of the M9000M2CU is its new integrated operating mode, which delivers powerful functionality for both straightforward mixing tasks and complex multi-zone paging systems. Users can benefit from features such as telephone zone paging, automatic microphone mixing, and ambient noise control, all of which contribute to a seamless audio experience.

Whether you're a musician, DJ, or audio professional, the M9000M2CU Digital Matrix Mixer offers a reliable and high-quality audio mixing platform. Its 20Hz to 20kHz frequency response ensures that it can handle a broad spectrum of audio signals, delivering crystal-clear sound. With its 8-channel capability, this mixer is perfect for creating intricate soundscapes and mixing multiple audio sources in real-time.

In summary, the TOA Electronics M9000M2CU Digital Matrix Mixer is a durable, advanced, and sophisticated piece of audio equipment that promises to elevate any professional audio setup. Its comprehensive features and high-quality construction make it a superior choice for those seeking to enhance their audio mixing capabilities.

TOA Electronics M9000M2CU Digital Matrix Mixer with 2 Line Out Features

  • Multiple Input Priority Modes sets priority order when multiple inputs with the same priority level and output assignment are broadcast
  • First-In-First-Out (FIFO): input that occurs first is broadcast
  • Last-In-First-Out (LIFO): the most recent input is broadcast
  • MIX: all inputs are simultaneously mixed and broadcast
  • Voice Operated (VOX) paging activation with adjustable threshold/sensitivity and gate release time
  • Stereo Link - Mirrors all the settings of one channel to the adjacent channel, reducing redundant setup tasks for stereo signals
  • Speaker Line Switching - select up to four speaker lines from a single amplifier output using optional model SS-9001 Speaker Selector and AD-246 Power Supply
  • Mixer Out/Power Amp In Patching Loops (Except M-9000M2) for connection of external processor
  • Balanced Line Output - two: M-9000M2, one: A-9060SM2, A-9120SM2, A-9240SHM2; expandable with T-001T dual line output modules
  • Keylock Security sets password-protected access to prevent access to Input, Output, Utility and Power functions
  • Alphanumeric Input/Output Channel and Memory Naming
  • Two Remote Volume Control Terminals on mainframe
  • Four Control Inputs - programmable to activate Paging/Scene Memory, Volume Up/Down (Input or Output), Mute (Input or Output),
  • Power On/Off, Emergency Mute, Sync On/Off (expandable to twelve with C-001T module). Works with optional ZM-9003 or custom contact panel
  • Four Control Outputs (open collector) programmable to activate external relays (expandable to twelve with C-001T module) synchronized with Event/Scene Memory, Channel On/Off (Input or Output) and Power On/Off. Works with optional ZM-9003 or custom contact panel
  • RS-232C serial port
  • Allows upload and download of programming templates and firmware upgrades as well as real-time control of various parameters
  • Control protocol available
  • AMX and Crestron control modules available

Warranty Information

This product has a limited warranty of 60 months.
