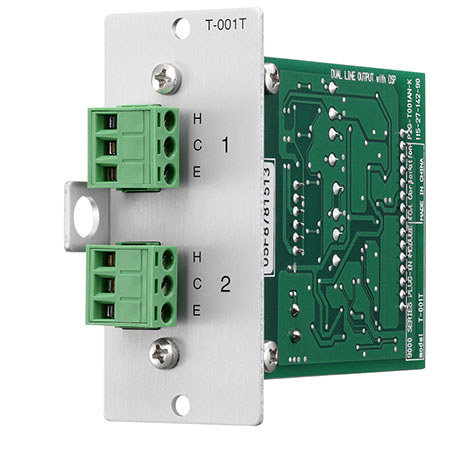

TOA Electronics Dual Line Output Expansion Module with DSP and RTB
See all TOA Electronics items
18% Off

TOA Electronics Dual Line Output Expansion Module with DSP and Removable Terminal Block

SKU: TOT001T MFR: T001T
Be the first to review this itemAsk a Question
$156.00
$191.00
Save: $35 (18%)
Earn VIP Reward Points

Key Features

  • Enhance your amplifier setup with this TOA expansion module for superior sound quality.
  • Get precise audio control with the module's parametric equalizer for optimal performance.
  • Experience low noise and clear sound thanks to the module's high signal-to-noise ratio.
  • Customize your sound with adjustable bass and treble controls on this expansion module.
  • Easily integrate this module with its removable terminal block for quick amplifier setup.
  • Ensure signal clarity with the module's high-quality D/A converter for pristine audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$15.99
2-Year Adorama Protect$23.99
3-Year Adorama Protect$35.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the TOA Electronics Dual Line Output Expansion Module?

The main function of this module is to expand the number of output lines for a device with a digital signal processor (DSP) and a removable terminal block. It is designed to provide two independent balanced outputs.

What makes this expansion module user-friendly?

This module is user-friendly due to its compact design and removable terminal block, which makes it easy to install and integrate with 9000 Series amplifiers.

What kind of load can this expansion module drive?

The TOA Electronics Dual Line Output Expansion Module can drive a load of 600 Ohms up to +dB.

Can this module process effects independently to two outputs?

Yes, this module can process effects for Tone/EQ Compressor independently to two outputs.

What are the applications of this expansion module?

This module is likely to be used in a variety of applications such as audio, video, and control systems where multiple output signals are required.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TOA Electronics T001T Specifications

  • Power Source

    +24V DC, -24V DC, +6V DC

  • Current Consumption

    35mA (at +24V DC), 35mA at -24V DC, 60mA at +6V DC,

  • Output

    2 channels, max. +20db (at 10 kOhms load) 600 Ohms, electronically-balanced, removable terminal block (3 pins)

  • Frequency Response

    20Hz - 20kHz, +1, -3dB

  • Total Harmonic Distortion + N

    0.005% at 1KHz, 20Hz - 20KHz BPF, 5 V output, 10kOhms load

  • S/N ratio

    Over 87 dB (at 20KHz)

  • Residual Noise

    Under -91 dB (at 20 Hz - 20kHz BPF, VOL: -70 dB)

  • Cross Talk

    Over 75 dB at 20Hz, Input Sensitivity: 10 dB

  • D/A Converter

    24 bit

  • Sampling Frequency

    48kHz

  • Tone Control

    Bass: +/-12 dB at 100Hz
    Treble: +/-12dB at 10kHz

  • Parametric Equalizer

    10 bands, frequency: 20Hz - 20 kHz,31 points, Variable Range: +/-12dB, Q:0.3 - 5

  • Hight-pass Filter

    -12dB/oct, Variable frequency Range: 20Hz - 20 kHz,31 points

  • Low-pass Filter

    -12dB/oct, Variable frequency Range: 20Hz - 20 kHz,31 points

  • Compressor

    Depth: 1 -5

  • Delay

    0-40 ms (1 ms step), maximum 40 ms(CH 1 + CH 2), mixer mode only

  • Operating Temperature

    -10 to 40 deg. C / 14 to 140 deg. F

  • Finish

    Panel: Aluminum, hair-line

  • Dimensions

    35 x 78 x 91.5mm / 1.37 x 3.60 x 3.60"

  • Weight

    81.93g / 2.89oz

Models
TOA Electronics Dual Line Output Expansion Module with DSP and RTB

TOA Electronics Dual Line Output Expansion Module with DSP and RTB

SKU: TOT001T

MFR: T001T

$156.00

$191.00

Save:$35.00 (18%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics Line Input/Output Module with Mute-Receive/Music-On-Hold

TOA Electronics Line Input/Output Module with Mute-Receive/Music-On-Hold

SKU: TOT12S

MFR: T12S

$139.00

$171.00

Save:$32.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics 8-Channel Input/Output Control Module for 9000 Series Amplifiers

TOA Electronics 8-Channel Input/Output Control Module for 9000 Series Amplifiers

SKU: TOC001T

MFR: C001T

$134.00

$167.00

Save:$33.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Accessory TypeDSP Expansion, I/O ExpansionI/O ExpansionI/O Expansion

About TOA Electronics T001T

While compact and user-friendly, the TOA Electronics Dual Line Output Expansion Module with DSP and Removable Terminal Block is a robust and innovative solution for enhancing your device's output capabilities. This high-quality module is specifically designed to seamlessly integrate with the 9000 Series amplifiers, providing two independent balanced outputs for maximum efficiency.

Boasting the ability to drive a load of 600 Ohms up to +dB, this durable expansion module ensures optimal performance even in demanding applications. Its unique design allows for independent processing of effects for Tone/EQ Compressor to two outputs, offering unparalleled flexibility and control.

Whether you're working with audio, video, or control systems, this Dual Line Output Expansion Module from the reputable brand of TOA Electronics is an excellent choice for expanding the number of output lines of your device. Its removable terminal block feature further enhances its versatility, making it an indispensable tool in any high-performance electronic setup.

TOA Electronics T001T Features

  • High-quality Dual Line Output Expansion Module from trusted brand TOA Electronics
  • Designed for seamless integration with 9000 Series amplifiers
  • Provides two independent balanced outputs for enhanced device performance
  • Capable of driving a load of 600 Ohms up to +dB
  • Features independent processing for Tone/EQ Compressor to two outputs
  • Includes a removable terminal block for added versatility and convenience

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your amplifier setup with this TOA expansion module for superior sound quality.
  • Get precise audio control with the module's parametric equalizer for optimal performance.
  • Experience low noise and clear sound thanks to the module's high signal-to-noise ratio.
  • Customize your sound with adjustable bass and treble controls on this expansion module.
  • Easily integrate this module with its removable terminal block for quick amplifier setup.
  • Ensure signal clarity with the module's high-quality D/A converter for pristine audio.

What's in the box:

  • TOA Electronics Dual Line Output Expansion Module
  • 2x Removable Terminal Plug (3 pin)
  • 2x Module Mounting Screw
  • TOA Electronics 5 Year Limited Warranty
