Review Summary
1TB, 2TB, 4TB, 6TB, 8TB, 10TB
SATA-3.3
SAS-3.0
SATA:
HOST: 512 B, DISK: 4096 B
HOST: 512 B, DISK: 512 B
SAS:
HOST: 512 B, DISK 4096 B
HOST: 520 B, DISK 4160 B
HOST: 528 B, DISK: 4224 B
HOST: 512 B, DISK: 512 B
SATA: 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
SAS: 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
7200 rpm
512 MiB
SATA (1TB/2TB): 211 MiB/s
SATA 4TB: 227.8 MiB/s
SATA (6TB/8TB/10TB) SAS (4TB/6TB/8TB/10TB): 268 MiB/s
12V +/-10% / 5V+10%/-7%
SATA 1TB: 6.26W
SATA 2TB: 6.57W
SATA 4TB: 7.29W
SATA 6TB: 7.97W
SATA 8TB: 8.74W
SATA 10TB: 9.63W
SAS 4TB: 7.67W
SAS 6TB: 8.33W
SAS 8TB: 9.16W
SAS 10TB: 9.91W
SATA 1TB: 2.93W
SATA 2TB: 2.88W
SATA 4TB: 3.49W
SATA 6TB: 4.14W
SATA 8TB: 4.92W
SATA 10TB: 5.47W
SAS 4TB: 3.87W
SAS 6TB: 4.55W
SAS 8TB: 5.41W
SAS 10TB: 6.15W
Idle: 34 dB
Operating: 41 to 131 Degree F (5 to 55 Degree C) (No condensation)
Non-Operating: -40 to 158 Degree F (-40 Degree C to 70 Degree C) (No condensation)
Operating: 41 to 140 Degree F (5 to 60 Degree C) (No condensation)
Operating: 5 to 90% R.H. (No condensation)
Non-Operating: 5 to 95% R.H. (No condensation)
Operating: -1000.66 to +10000' (-305 to +3048m)
Non-Operating: -1000.66 to 40000' (-305 to +12192m)
Operating: 686 sq. m/s (70 G) (2 ms duration)
Non-Operating: 2450 sq. m/s (250G) (2 ms duration)
Operating:
7.35 sq. m/s (0.75 G) (5 to 300 Hz)
2.45 sq. m/s (0.25 G) (300 to 500 Hz)
Non-Operating:
29.4 sq. m/s (3.0 G) (5 to 500 Hz)
2 000 000 hours (0.44%)
10 per 1016 bits read
600 000 times
550TB per year
SATA (1TB/2TB): 23.63 oz (670g)
SATA 4TB: 24.33 oz (690g)
SATA 6TB: 25 oz (710g)
SATA 8TB: 25.75 oz (730g)
SATA 10TB: 26.63 oz (755g)
SAS 4TB: 24.33 oz (690g)
SAS 6TB: 25 oz (710g)
SAS 8TB: 25.75 oz (730g)
SAS 10TB: 26.63 oz (755g)
723844002855
Capacity-Optimized Data Center Storage Systems

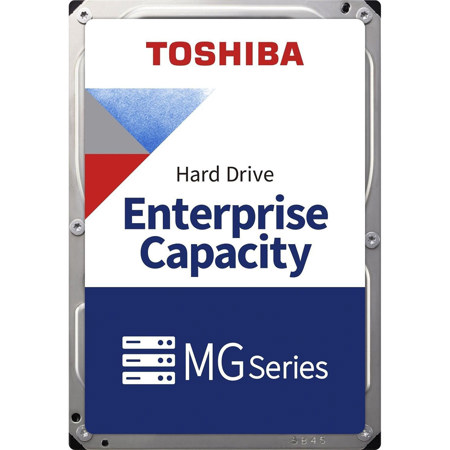

Harness the raw power of our cutting-edge MG10-D Series hard drive, delivering increased performance and power efficiency than prior models.
The industry standard 7200 rpm 3.5-inch HDD delivers up to 10 TB of storage capacity and a choice of interface (SATA and SAS) with 512n and 512e sector options available. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) are also available.
An Extensive Lineup
Up to 10 TB of capacity in SATA or SAS models with 4Kn, 512n, or 512e sector technologies.
Enterprise Grade Reliability
With an annual workload of 550 TB and MTTF/MTBF (AFR) of 2 million hours, the MG10-D Series is designed for business critical workloads and consistent 24/365 performance.
Power-efficient Mechanical Design
Incorporating the latest advancements in HDD technology.
Applications
Business-Critical Enterprise Servers and Storage Systems
Enterprise storage arrays (RAID, Software defined)
Distributed file systems, big data
Enterprise and cloud archive, data recovery systems
Applications and hypervisors that require legacy 512 Native Sector Technology
