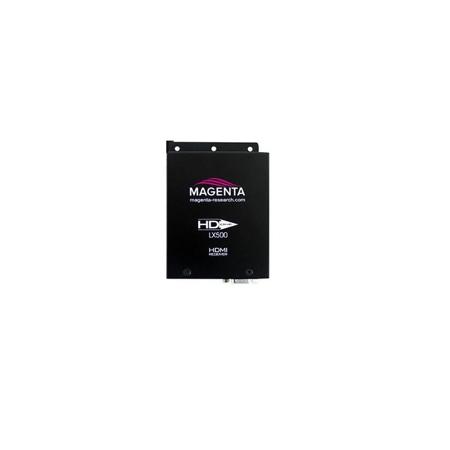

tvONE HD-One LX500 Receiver, Extends HDMI 1.4 with IR, 500'/152m Signal Range

SKU: TV221112401 MFR: 2211124-01
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 500ft with this reliable HDMI receiver for crystal-clear video.
  • Enjoy easy setup with this HDMI receiver, perfect for digital signage and home theaters.
  • This HDMI 1.4 receiver supports up to 4k resolutions, ensuring high-quality video output.
  • Control your devices remotely with integrated IR, enhancing your viewing experience with this receiver.
  • Use with CAT6/7 for a stable, long-range HDMI connection in museums and retail spaces.
  • Durable build ensures this HDMI receiver offers a reliable connection for years to come.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE HD-One LX500 Receiver Specifications

  • CORIOMAX Compatibility

    CORIOmaster: CORIOmaster mini, CM-HDBT-SC-2OUT-1ETH, CM-HDBT-SC-2IN-1ETH
    CORIOmatrix: CORIOmatrix mini, CM-HDBT-XSC-2OUT-1ETH, CM-HDBT-XSC-2IN-1ETH

  • Typical Installation Types

    Museums
    Large Retail Environments
    High-end Security, Education and Residential
    Digital Signage
    Wayfinding Installations
    Home Theatre

  • Supported Video

    HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats at 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200
    & HDTV: 480p,720p,1080i & 1080p
    4k: 3840x2160p30 & 4096x2160p24

  • Video Out

    HDMI Type A

  • Audio In/Out

    Embedded with video signal

  • UTP In/Out

    RJ45 Connector

  • Required UTP

    CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)

  • Bandwidth

    3.4Gbps

  • Power

    +5 VDC at 2.6A maximum each unit
    Consumption: 1200mA maximum

  • Consumption

    600mA / 1200mA(maximum)

  • Humidity Tolerance

    Up to 95% non-condensing

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Dimensions

    5.1 x 3.5 x 1.2" / 129.54 x 88.90 x 30.48mm

  • Weight

    0.6lbs / 0.27kg each

About tvONE HD-One LX500 Receiver

Magenta's HD-One series is your answer to deploying digital video extenders with simplicity and long-term confidence. HD-One will enable your systems flawlessly, while backed by the finest engineering and support in the industry.

The HD-One DX and LX deliver reliable, uncompressed, high definition video over a single Cat5e/6/6e/7 cable to a distance of 328 feet/100 meters and 4K UHD signals 200 feet/60 meters. The HD-One DX500 and LX500 go a step further, offering a distance reach of 500 feet/152 meters, while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference.

DX Series kits extend embedded HDMI audio in addition to video, with support for Dolby TrueHD and DTS-HD Master Audio. LX Series offer additional support for bi-directional RS-232 and two-way IR signals. For ease of use, all LX kits come with one set of IR emitter/receiver cables. LX Receivers are also tunable to three different IR bands (36.7, 38.0 or 58.8 kHz). All HD-One products are fully HDCP-compliant and feature plug-and-play functionality.

The distance reach of HD-One DX & LX products is impossible to replicate using HDMI cables, which are difficult to terminate, costly and can degrade picture quality, even at short distances.

UTP cable, meanwhile, is both inexpensive and easy to terminate in the field, making HD-One products an easy decision for extending an HDMI or DVI source to any display. Most importantly for installers, HDOne products just work, period.

tvONE HD-One LX500 Receiver Features

  • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  • Supports Embedded HDMI Audio, Including Dolby TrueHD and DTS-HD Master Audio
  • No Adjustments or Tuning Required
  • 500'/152 Meter Reach
  • HDMI 1.4 Compliant, HDBaseT
  • HDCP Compliant
  • Bi-Directional RS-232 Interface
  • Two-Way IR Support
  • Tolerances Designed for Commercial Environments
  • Compatible with CORIOmax HDBaseT input and output modules

Product Documents

User Manual

Key Features

  • Extend your HDMI signal up to 500ft with this reliable HDMI receiver for crystal-clear video.
  • Enjoy easy setup with this HDMI receiver, perfect for digital signage and home theaters.
  • This HDMI 1.4 receiver supports up to 4k resolutions, ensuring high-quality video output.
  • Control your devices remotely with integrated IR, enhancing your viewing experience with this receiver.
  • Use with CAT6/7 for a stable, long-range HDMI connection in museums and retail spaces.
  • Durable build ensures this HDMI receiver offers a reliable connection for years to come.

What's in the box:

  • tvONE HD-One LX500 Receiver
  • 2x IR Receiver
  • tvONE 3 Year Limited Warranty
