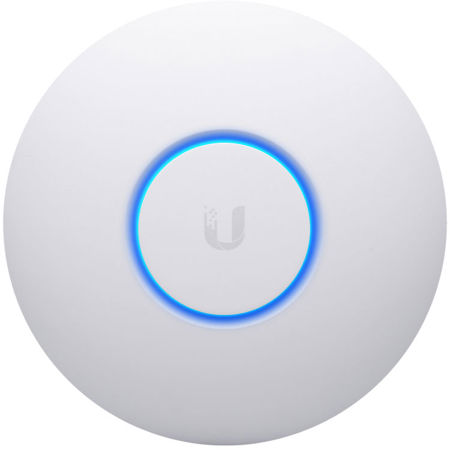

Ubiquiti Networks UniFi nanoHD Indoor Compact 802.11ac Wave 2 Wi-Fi Dual-Band Enterprise Access Point, 4x4 MU-MIMO, PoE Adapter Not Included, 5 Pack

SKU: UBUAPNANOHD5

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks UniFi nanoHD Specifications

  • Package Quantity

    5

  • Networking Interface

    1x 10/100/1000 Ethernet Port

  • Buttons

    Reset

  • Power Method

    802.3af PoE

  • Power Supply

    UniFi Switch (PoE)

  • Power Save

    Supported

  • Beamforming

    Supported

  • Maximum Power Consumption

    10.5W

  • Supported Voltage Range

    44 to 57VDC

  • TX Power

    2.4 GHz: 23 dBm
    5 GHz: 26 dBm

  • MIMO

    2.4 GHz: 2x2
    5 GHz: 4x4

  • Radio Rates

    2.4 GHz: 300 Mbps
    5 GHz: 1733 Mbps

  • Antennas

    2.4 GHz: 2x Single-Port, Single-Polarity Antennas, 2.8 dBi each
    5 GHz: 2x Single-Port, Dual-Polarity Antennas, 3 dBi each

  • Wi-Fi Standards

    802.11 a/b/g/n/ac/ac-wave2

  • Wireless Security

    WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

  • BSSID

    8 per Radio

  • Advanced Traffic Management

    VLAN: 802.1Q
    Advanced QoS: Per-User Rate Limiting
    Guest Traffic Isolation: Supported
    WMM: Voice, Video, Best Effort and Background
    Concurrent Clients: 200+

  • Supported Data Rates

    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • Mounting

    Wall/Ceiling (Kits Included)

  • Operating Temperature

    -10 to 70 deg. C (14 to 158 deg. F)

  • Operating Humidity

    5 to 95% Noncondensing

  • Certifications

    CE, FCC, IC

  • Dimensions

    160 x 160 x 32.65mm (6.30 x 6.30 x 1.29")

  • Weight

    300g (10.58 oz)
    With Mounting Kits: 315 g (11.1 oz)

  • UPC Code

    817882024235

About Ubiquiti Networks UniFi nanoHD

Become a leader in high-density Wi-Fi deployment with the UniFi nanoHD Indoor Compact 802.11ac Wave 2 Wi-Fi Dual-Band Enterprise Access Point. This powerful solution is designed to meet the rigorous demands of modern enterprise environments, offering a blend of sophisticated technology and compact convenience.

The UniFi nanoHD Access Point features cutting-edge 802.11ac Wave 2 MU-MIMO technology, enabling it to communicate with multiple devices simultaneously, providing a significant boost in network throughput and efficiency. This technology ensures that your business can handle a high number of wireless connections without sacrificing speed or reliability, making it perfect for crowded venues, busy offices, or any space where Wi-Fi demand is high.

With its sleek and refined industrial design, the UniFi nanoHD AP integrates seamlessly into any setting. Installation is a breeze thanks to the included mounting hardware, and the device's compact form factor means it won't intrude on your space or decor. The unique LED provisioning ring offers at-a-glance administrator alerts and location tracking for each device, ensuring easy management and troubleshooting.

Management of your network is streamlined with the intuitive UniFi Controller software, accessible through any standard web browser or the UniFi mobile app for iOS and Android. This robust software engine is ideal for client deployments that require low latency and high uptime performance. From RF mapping and performance features to real-time status and automatic device detection, the UniFi Controller software provides a comprehensive suite of tools for network administration without the need for special training.

The UniFi nanoHD AP is designed for scalability and can easily grow with your business. Start with a single unit or deploy a five-pack and expand to thousands, all while maintaining a unified management system. The UniFi Controller software also facilitates multi-site management, allowing you to oversee multiple, distributed deployments and multi-tenancy for managed service providers.

Advanced RF performance features such as spectral analysis, airtime fairness, and band steering optimize your wireless spectrum. The detailed analytics and configurable reporting make managing large user populations simple and efficient, helping to expedite troubleshooting.

For guest access, the UniFi nanoHD AP supports a customizable Guest Portal/Hotspot with a variety of authentication options, including voucher-based access and rate limiting for bandwidth control. This flexibility allows you to tailor guest connectivity to your specific requirements while offering secure, controlled internet access.

The UniFi nanoHD AP operates on the Power over Ethernet (PoE) standard, allowing for convenient power and data delivery over a single cable. While the PoE adapter is not included, the device is compatible with 802.3af PoE compliant switches and UniFi PoE Switches, providing versatile power options.

In summary, the UniFi nanoHD Indoor Compact Access Point is a powerhouse of enterprise Wi-Fi technology, offering a compact, dual-band solution with advanced 4x4 MU-MIMO capabilities. It's an ideal choice for businesses seeking a robust, scalable, and easy-to-manage wireless network solution.

Ubiquiti Networks UniFi nanoHD Features

  • Four-Stream 802.11ac Wave 2 Technology
  • Supports 200+ Concurrent Users
  • 802.3af PoE Compatibility
  • 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)

Key Features

  • High-performance 802.11ac Wave 2 Wi-Fi Access Point with dual-band technology
  • Compact, refined industrial design with easy installation and unique LED provisioning ring
  • Advanced 4x4 MU-MIMO technology for simultaneous communication with multiple devices
  • Intuitive UniFi Controller software for streamlined network management and troubleshooting
  • Scalable solution suitable for enterprise environments, offering multi-site management
  • Customizable Guest Portal/Hotspot support for secure, controlled guest internet access

What's in the box:

  • Ubiquiti Networks 5x UniFi nanoHD Indoor Compact 802.11ac Wave 2 Wi-Fi Dual-Band Enterprise Access Point
  • Mounting Brackets
  • Ceiling Backing Plates
  • Screws
  • Keps Nuts
  • Screw Anchors
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
