Sony BRS-200 Switcher - No Processor SKU#1174684
Sony BRS-200: Picture 1 thumbnail
Sony BRS-200: Picture 2 thumbnail
Sony BRS-200: Picture 3 thumbnail
Sony BRS-200: Picture 4 thumbnail
Sony BRS-200: Picture 5 thumbnail

Picture does not represent the actual item
See what's in the box

See all Sony items
CloseoutUsed Condition: Average

Used Sony BRS-200 Switcher No Processor

Item Note: Missing 12v AC Adapter

SKU: US1174684 MFR: BRS200
Be the first to review this item
$548.00
OR
$92/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $548

What`s in the box:

  • ** Item Note: Missing 12v AC Adapter **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$74.99

3 Year

$120.99

4 Year

$164.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony BRS-200 Specifications

  • Video Formats

    HD mode: HD (1080/59.94i, 1080/50i)
    SD mode: SD (480/59.94i, 576/50i)

  • Video Processing

    HD mode and SD Mode : YCbCr 4:2:2, 10 bit

  • Video Input

    HD mode: HD-SDI x 4: BNC
    SD mode: SD-SDI x 4: BNC

  • Video Input(option)

    DVI-I x 1 : SXGA, WXGA, XGA
    Analog composite x 1: NC, S-video x 1: 4-pin mini DIN
    HD mode: HD-SDI x 4: BNC
    SD mode: SD-SDI x 4:BNC

  • Reference Input

    HD mode: Analog black burst or Tri-level sync: BNC, with Loopthrough: BNC
    SD mode: Analog black burst: BNC, with Loopthrough: BNC

  • Video Output

    HD mode: HD-SDI (PGM x 2, AUX x 2) : BNC
    DVI-I x 1 (WUXGA, HDTV, SXGA, WXGA, XGA)
    SD mode: SD-SDI (PGM x 2, AUX x 2) : BNC
    DVI-I x 1 (SXGA, WXGA, XGA)

  • Video Output Option

    HD mode: DVI-I x 1 (WUXGA, HDTV, SXGA, WXGA, XGA)
    SD mode: DVI-I x 1 (SXGA, WXGA, XGA)

  • Reference Outputs

    HD mode: Analog black burst or Tri-level sync: BNC
    SD mode: Analog black burst: BNC

  • Image Effect

    Transition: CUT, MIX, WIPE (Fader, AUTO)
    P in P (AUTO)

  • DSK

    Chroma key, Luminance key, Linear Key (Split)

  • Remote Interface

    RS-422 x 1: D-sub 9-pin (for switcher control from external devices)

  • GPI/TALLY output

    12 ports (selectable for I/Os). D-sub 15-pin x 1

  • VISCA Camera Control

    VISCA RS-232C x 1: Mini DIN 8-pin
    VISCA RS-422 x 1: 5-pin contact connector (for BRC Series camera control)

  • LAN

    100BASE-T: RJ-45 (for the transfer of still images, snapshot data and camera preset positions)

  • Operating Temperature

    41 to 104° F (5 to 40° C)

  • Power Requirements

    AC 100 to 240 V, 50/60 Hz

  • Power Consumption

    RP: 85 W (without optional boards), 125 W (with optional boards)
    CP: 12 W

  • Dimensions

    RP: 17 x 1¾x 17 inches (430 x 44 x 430 mm) (without protrusions)
    CP: 16¾x 5 ½ x 8¾ inches (424 x 70 x 222 mm) (without protrusions)

  • Weight

    RP: 17 oz (7.5 kg) (without optional boards), 18 oz (8.0 kg) (with optional boards)
    CP: 7lb 15 oz (3.6 kg)

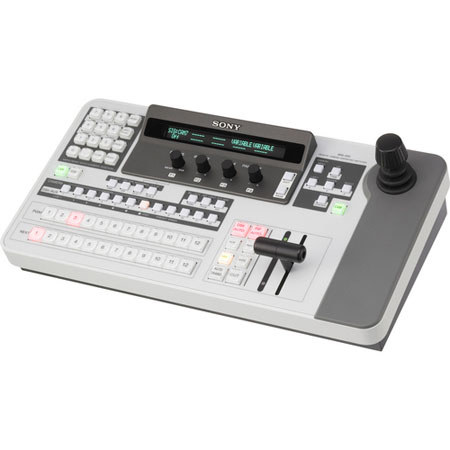

About Sony BRS-200 Switcher - No Processor SKU#1174684

The BRS-200 SWITcher from Sony is designed to offer flexible operation in live production and presentation work. It can be configured for use as an SD or HD system. It is well suited for use in applications such as event & live staging, conferences, concerts, broadcast operations and other similar purposes.

Sony BRS-200 Switcher - No Processor SKU#1174684 Features

  • This unit can also be used to control BRC Series cameras from a remote location
  • When used with remote cameras, pan/tilt/zoom, iris and focus can all be managed using the switcher's joystick and dials
  • This switcher comes equipped with a multi-viewing function, allowing a single monitor to display all input signals, PGM and PVW via SDI and/or DVI-I outputs
  • The system offers (4) SDI inputs/outputs and (1) DVI output
  • The functionality of the switcher can be enhanced with optional boards to provide a maximum capacity of (8) SDI and (1) DVI-I inputs, as well as (4) SDI and (2) DVI-I outputs
