Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor - SKU#1355450 Specifications

  • Panel Size and Type

    61 cm (24.1") TFT color LCD panel

  • Viewing Angles (H, V)

    178°, 178° (at contrast ratio of 10:1)

  • Brightness

    300 cd/m2 (maximum)
    120 cd/m2 or less (recommended)

  • Contrast

    850:1

  • On/Off Response Time

    16 ms (typical)

  • Midtone Response Time

    6 ms (typical)

  • Native Resolution

    1920 ® 1200

  • Native Resolution

    1920 ® 1200

  • Active Display Size (H ® V)

    518.4 ® 324 mm

  • Viewable Image Size

    Diagonal: 611 mm

  • Pixel Pitch

    0.270 ® 0.270 mm

  • Gamut Coverage sRGB

    98%

  • Gamut Coverage Adobe RGB

    96%

  • Display Colors

    16.77 million from a palette of 68 billion

  • Look-Up Table

    12-bits per color

  • Internal Processing

    16-bits per color

  • Cabinet Colors

    Black

  • Dot Clock

    Analog: 202.5 MHz
    Digital: 164.5 MHz

  • Scanning Frequency (H, V) Analog

    24 - 94 kHz, 47.5 - 86 Hz

  • Scanning Frequency (H, V) Digital

    26 - 78 kHz, 47.5 - 63 Hz (VGA Text: 69 - 71 Hz)

  • Input Signals

    Analog: RGB Analog
    Digital: DVI Standard 1.0

  • Input Terminals

    DVI-I 29 pin ® 2 (switchable), HDCP supported

  • USB Port / Standard

    1 upstream, 2 downstream / USB Standard Rev. 2.0

  • Plug & Play

    VESA DDC 2B

  • Power Requirements

    AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

  • Power Consumption

    110 W (maximum)

  • Power Save Mode

    Less than 2 W

  • Height Adjustment Range

    82 mm

  • Tilt / Swivel / Pivot

    40° Up, 0° Down / 35° Right, 35° Left / 90°

  • Auto Brightness Functions

    Auto Brightness Stabilization, BrightRegulator

  • Auto Adjustment Functions (analog only)

    Auto Adjustment, Range Adjustment

  • Display Mode Options

    Fine Contrast (Custom, sRGB, Calibration, Emulation)

  • Screen Adjustment

    Clock, Phase, Position, Resolution, Range, Signal Filter, Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity

  • Color Adjustment

    Brightness, Independent 6-Color Control, Gamma, Temperature (in 500 K increments from 4,000 K - 10,000 K including 9,300 K), Saturation, Hue, Gain, Reset

  • Power Save Settings Analog

    PowerManager (VESA DPMS), Off Timer

  • Power Save Settings Digital

    PowerManager (DVI DMPM), Off Timer

  • Other Settings

    Input Priority, Product Information (product name, serial number, resolution, operating time), OSD Menu Settings, Adjustment Lock, Languages (English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese), Beep, Reset

  • Certifications and Standards

    CUDO certified mark, TCO'03, T'V/Ergonomics (including ISO 13406-2), T'V/GS, c-Tick, CE, CB, UL (cT'Vus), CSA (cT'Vus), FCC-B, Canadian ICES-003-B, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, CCC, EIZO Eco Products 2006

  • Dimensions (W ® H ® D)

    With Stand: 22.3 ® 18"- 21.2 ® 9.1" (566 ® 456 - 538 ® 230 mm)
    Without Stand: 22.3 ® 15.6 ® 3.35" (566 ® 367 ® 85 mm)

  • Net Weight

    With Stand: 24.3 lbs / 11 kg
    Without Stand: 16.3 lbs / 7.4 kg

  • Warranty

    Eizo 5 year warranty

About Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor - SKU#1355450

The Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor features 12-bit hardware calibration and a 6 ms response time which displays both still and moving images equally well, making it ideal for a wide range of high-end graphics work including pre-press, digital photography, video editing and post production.

Brightness and color compensation with EIZO's Digital Uniformity Equalizer (DUE) function for a Delta-E difference of 3 or less across the screen. It has 16-bit internal processing for grayscale rendering that is on a par with high-end CRT monitors. Monitor hood with sliding top cover and screen cleaner kit are bundled with the monitor. The ColorNavigator Calibration Software comes bundled with ColorEdge model and offers 12-bit hardware calibration when used with X-Rite or ColorVision measurement device. The wide gamut LCD panel reproduces 96% of the Adobe RGB color space so it can display most colors in a photograph taken in Adobe RGB mode.

It also covers CMYK color spaces used for printing so the monitor can produce a reliable soft proof when calibrated. The wide screen format with its 16:10 aspect ratio offers more horizontal viewing space than conventional monitors. Two applications such as a text document and web browser can be viewed side-by-side, or graphics applications can be opened and work palettes displayed simultaneously without any overlap.

Eizo CG241W ColorEdge 24.1" Color TFT LCD Graphic Monitor - SKU#1355450 Features

  • ColorNavigator Calibration Software
  • Wide Color Gamut
  • Widescreen Format
  • Factory Adjustment of Gamma: To ensure that each ColorEdge CE monitor produces the most accurate and consistent color gradations possible
  • 6 ms Midtone Response Time: To enhance moving image playback capabilities, an overdrive circuit is included. An overdrive circuit vastly improves the LCD panel's response time for changing between midtones or gray levels, which is necessary to display color images without blurring
  • Brightness Stabilization Function: Ensures stable brightness - necessary for the proper display of color - with EIZO patented technology. A drift correction sensor quickly stabilizes the brightness level after startup or coming out of power saving mode
  • Protanopia and Deuteranopia Simulation in Real Time: Simulates two types of red-green color vision deficiency - protanopia and deuteranopia. The ColorEdge CG241W does all the color conversion processing in real time - even moving images
  • Placement Flexibility: The stand is height adjustable through an 82 mm range and provides 40° tilt and 70° swivel so every user can easily set the ideal position. It also pivots 90° for portrait mode viewing

What's in the box:

  • 4x Screws for Mount Option
  • AC Power Cord
  • DVI-D Cable
  • Stand

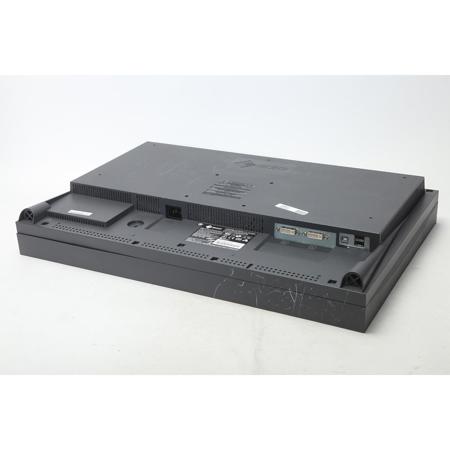

  • Item Note: There is a large crack on the upper right side of the monitor but it does not affect screen performance; Missing DVI-I to VGA Cable; USB Cable; Screen Cleaner; Monitor Hood
