Vaddio RoboSHOT 30 Specifications

  • Image device

    1/2.8-Type Exmor CMOS sensor

  • Effective pixels

    2.14 Million Effective pixels (2.38 Million Total Pixels)

  • Lens and horizontal FOV

    30X optical zoom, 65 deg. (wide end) to 2.3 deg. (tele end), F1.6 to F4.7

  • Video outputs

    HD-SDI, HDMI

  • Supported resolutions

    1080p60/59.94/50/30/25, 1080i/60/59.94i/50, 720p/60/59.94/50

  • Video aspect ratio

    16:9 for all resolutions

  • Streaming

    Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30

  • Minimum illumination

    1.0 lx (F1.8, 50IRE); recommended illumination 100 lux or more

  • Minimum working distance

    10mm (wide), 1.2m (tele)

  • Pan and tilt angle

    Pan: +/-160 deg., Tilt: +90 deg., -30 deg.

  • Pan and tilt speed

    Minimum: 0.35 deg./sec; maximum: 120 deg./sec

  • Vaddio Special Function

    Tri-Synchronous Motion: Concurrent PTZ motor movement, simultaneous arrival at preset
    Advanced ISP: Accurate color reproduction with fast, sharp automatic focus and iris routines

  • Network connection

    PoE+ (IEEE 802.3at), Gigabit Ethernet

  • S/N Ratio

    Greater than 50 dB

  • Sync System

    Internal

  • Control Methods

    Ethernet (web interface and Telnet); IR Remote Commander; RS-232 for external controllers.

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative Humidity

    20% to 80%

  • Dimensions (HxWxD)

    6.94 x 7.05 x 6.75" (17.63 x 17.91 x 17.15cm)

  • Weight

    4.85 lbs (2.20kg)

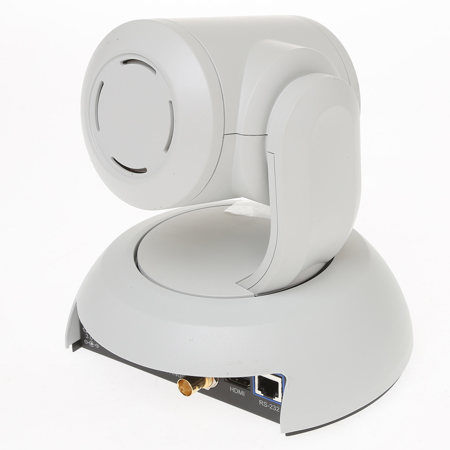

About Vaddio RoboSHOT 30 HD-SDI PTZ Camera - White SKU#1364546

The enterprise-class, high-definition RoboSHOT HD-SDI PTZ cameras offer exceptional image quality, color reproduction and detail. With simultaneous HD-SDI and HDMI digital video outputs and full HD IP streaming (H.264) capabilities, this camera offers incredible flexibility and price performance benefit over similar cameras available today. The optical zoom power of the RoboSHOT 30 HD-SDI camera is ideal for medium to large venues such as large auditoriums and lecture halls, houses of worship and live event theatres. The RoboSHOT 30 HD-SDI camera provides exceptional support for A/V systems, IMAG for performances, lecture capture and more!

The camera's lens, Exmor 1/2.8", 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor and ISP are the serious magic behind the video performance characteristics, producing vivid, realistic and accurate color with extraordinarily fast, sharp and transparent automatic focus and iris routines. The powerful RoboSHOT 30 HDMI offers a 30X optical zoom with an impressive 2.3deg. tele end and 65deg. field of view. The Tri-Synchronous Motion algorithm manages silky smooth, direct-drive motor movements between presets, moving the RoboSHOT camera in all three axes (pan, tilt and zoom) at once and calculating the position and velocity so pan, tilt and zoom movements finish simultaneously. Finally - no more pan/tilt, then zoom. Unlike other cameras, RoboSHOT cameras allow smooth and manageable on-air preset camera movements.

• PoE+ GB Ethernet port - Power the camera over the network or with a PoE+ mid-span power injector.
• Web interface - Control the camera over the IP network using a browser, from anywhere in the world. Perfect for remote management, network operating centers and overall IT control!
• IP streaming - Use any standards-based (H.264, RTSP format) media player to watch the IP stream.

What's in the box:

  • Vaddio RoboSHOT 30 HD-SDI PTZ Camera
  • IR Remote Commander
  • Power Supply
  • Power Cord
  • EZCamera RS-232 Control Adapter
  • Original Box
  • Item Note: Missing Thin Profile Wall Mount with Mounting Hardware
