Shure QLXD24/B87A Specifications

  • Frequency Band

    V50: 174.120 to 215.820 MHz

  • Receiver: Housing

    Steel

  • Receiver: Power requirements

    12 V DC at 0.4 A, supplied by external power supply (tip positive)

  • Receiver: RF Input

    Spurious Rejection: >80 dB, typical
    Connector Type: BNC
    Impedance: 50 Ohms

  • Receiver: Audio Output

    Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    Configuration: 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground), XLR: Balanced (1=ground, 2=audio +, 3=audio -)
    Impedance: 1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced), XLR: 100 Ohms
    Full Scale Output: 1/4" (6.35 mm): +12 dBV, XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
    Mic/Line Switch: 30 dB pad
    Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes

  • Receiver: Network Interface

    Single Port Ethernet 10/100 Mbps

  • Receiver: Network Addressing Capability

    DHCP or Manual IP address

  • Receiver: Maximum Ethernet Cable Length

    100m (328.08')

  • Mic Transmitter: Radio Frequency Range

    20 Hz-20 kHz

  • Mic Transmitter: Operating Distance

    100m (330') line of sight (typical)

  • Mic Transmitter: Mic Offset Range

    0 to 21 dB (in 3 dB steps)

  • Mic Transmitter: Battery Type

    Shure SB900A Rechargeable Li-Ion or 2 AA alkaline batteries

  • Mic Transmitter: Battery Runtime

    At 10 mW
    Shure SB900A: Up to 10 hours
    Alkaline: Up to 9 hours

  • Mic Transmitter: Housing

    Machined aluminum

  • Mic Transmitter: Audio Input

    Configuration: Unbalanced

  • Mic Transmitter: RF Output

    Antenna Type: Integrated Single Band Helical
    Occupied Bandwidth: <200 kHz
    Modulation Type: Shure proprietary digital
    Power: 1 mW or 10 mW

  • Mic Transmitter: Capsule

    BETA87A

  • Dimensions

    Mic Transmitter (L x Dia.): 256 x 51mm (10.08 x 2.01")
    Receiver (H x W x D): 41 x 197 x 151mm (1.61 x 7.76 x 5.94")

  • Weight

    Mic Transmitter: 347g (12.24oz) without batteries
    Receiver: 777g (27.41oz) without antennas

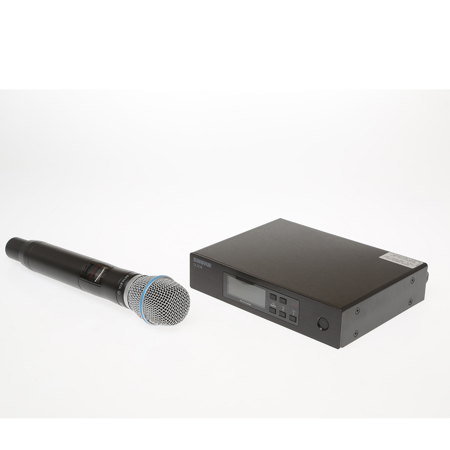

About Shure QLXD24/B87A VHF Handheld Wireless Microphone System - SKU#1370260

- QLXD2 Wireless Handheld Transmitter with Beta 87A Microphone Capsule -
With an interchangeable BETA87A microphone cartridge, the QLXD2/BETA87A Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. The QLXD2/BETA87A Handheld Wireless Microphone Transmitter works with QLX-D Digital Wireless Systems.

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability and a wide selection of compatible microphone choices offer legendary Shure sound signatures.


- QLXD4 Half-Rack Single Channel Digital Wireless Receiver -
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

What's in the box:

  • Shure QLXD2/BETA87A Handheld Wireless Microphone Transmitter
  • QLXD4 Digital Wireless Receiver
  • Microphone Clip
  • Power Supply
  • 2x AA Battery
  • Battery Contact Cover
  • 2x 1/2 Wave Antenna
  • 2x BNC Cable
  • 2x BNC Bulkhead Adapter
  • Rackmount Kit
  • Original Box
