Shure ULXS4-J1 Standard Wireless Receiver - J1 Band/554-590 MHz SKU#1389576

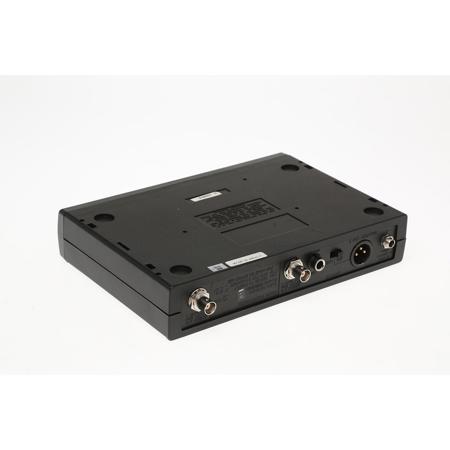

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure ULXS4-J1 Standard Wireless Receiver with PS40 Power Supply, J1 Band/554-590 MHz

SKU: US1389576

This item is no longer available.

Recommended Items

Shure ULXS4: Picture 1 regular
Shure ULXS4-G3 Standard Wireless Receiver - G3 Band/470-506MHz SKU#1906385
$77.00$72.00
Shure ULXS4: Picture 1 regular
Shure ULXS4-G3 Standard Wireless Receiver with PS40 Power Supply, G3 Band/470-506 MHz
$62.00$58.00
Shure ULXS4: Picture 1 regular
Shure ULXS4-G3 Standard Wireless Receiver with PS40 Power Supply, G3 Band/470-506 MHz
$62.00$58.00
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ULXS4 Specifications

  • Type of Receiver

    ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver

  • RF Carrier Frequency Range

    J1 Band, 554 - 590 MHz

  • Frequency Response

    25 Hz - 15 kHz, (+/-2 dB)

  • Signal-to-Noise Ratio

    Greater Than 90 dB

  • Approx. Working Range

    300 Feet (100m)

  • Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
    (Both Outputs Feature: Voltage, Current and Phantom Power Protection)

  • Headphone Monitoring

    No

  • Power Requirements

    14 - 18 Vdc (negative ground), 550 mA
    External Power Supply - PS40, Included, Now with Locking DC Connector!

  • No. Of Channels

    Over 1400 User Selectable Frequencies

  • Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning

  • Mounting Options

    Rack/Table-Top Mount 1/2 Rack Space

  • Antenna Type

    Remotable 1/2 Wave, Rear Mounted

  • Dimensions (HxWxD)

    1.72 x 8.56 x 6.52" (43 x 217 x 165mm)

  • Weight

    2 lbs. 5 oz. (1049 g)

About Shure ULXS4-J1 Standard Wireless Receiver - J1 Band/554-590 MHz SKU#1389576

The Shure ULXS4-J1 Standard Wireless Receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4-J1 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.

Shure ULXS4-J1 Standard Wireless Receiver - J1 Band/554-590 MHz SKU#1389576 Features

  • Power On Indicator
  • "RF" Diversity Signal Indicators
  • Transmitted (TX) Audio Indicators
  • Receiving Antenna Indicator
  • Group/Channel Displays
  • Transmitter Battery Life Indicator
  • PS40, in-line power supply with locking DC connector
  • MODE Button for Menu Display
  • SET Button for Saving Settings
  • Mic/Line level Switch
  • XLR and 1/4" outputs with level control
  • Space-saving 1/2 rack design

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ULXS4 Standard Wireless Receiver
  • PS40 Power Supply
  • Item Note: Missing 2X Antenna
