Sony BRU-300 Optical Multiplex Unit for BRC-300 Pan and Tilt Camera SKU#1390166
Sony BRU-300: Picture 1 thumbnail
Sony BRU-300: Picture 2 thumbnail
See all Sony items
ClearanceUsed Condition: For Parts

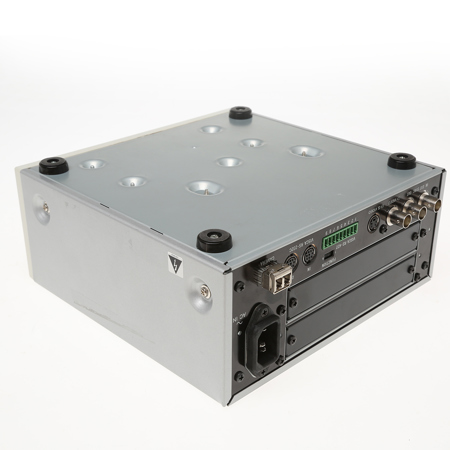

Used Sony BRU-300 Optical Multiplex Unit for the BRC-300 Pan and Tilt Camera

Item Note: Item does not power on; Cosmetic Condition is 'E-'. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE

SKU: US1390166 MFR: BRU300
Be the first to review this item
$15.00
Earn VIP Reward Points
See all Used options (5) from $15

What`s in the box:

  • Sony BRU-300 Unit ** Item Note: Item does not power on; Cosmetic Condition is 'E-'. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
Calculate Shipping

See Options

Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony BRU-300 Specifications

  • Signal System

    NTSC

  • Signal-to-Noise Ratio

    50 dB

  • Camera Input Signal Connector

    Proprietary Fiber Optical Connector (x 1)

  • Composite Video Signal Connector

    BNC (x 1 output)

  • S-Video Signal Connector

    4-Pin (x 1 output)

  • Sync Signal Connector

    BNC (x 1 input, 1 output)

  • VISCA / RS-232C Control Signal Connector

    8-Pin (x 1 input, 1 output)

  • VISCAS / RS-422 Signal Connector

    9-Pin (x 1)

  • Analog Component / RGB Signal Connector

    Optional with BRBK-301 provides 9-Pin (x 1)

  • SDI Video Signal Connector

    Optional with BRBK-302 provides BNC (x 1)

  • Power Requirements

    100 to 240 Volts AC, 50 or 60 Hz

  • Power Consumption

    0.3 A

  • Operating Temperature

    32 to 104 degrees F
    0 to 40 degrees C

  • Dimensions (WxHxD)

    8-3/8 x 3-1/2 x 9-1/4 inches
    212 x 88 x 233 mm

  • Weight

    4 Lbs 10 Oz/ Lbs
    2.1 kg

  • Warranty

    Sony warranty

About Sony BRU-300 Optical Multiplex Unit for BRC-300 Pan and Tilt Camera SKU#1390166

The Sony BRU-300 is an optical multiplex unit for the BRC-300 high-quality pan and tilt camera. This box allows for uncompressed raw data from the camera to be sent up to 1500 feet. The unit will output Composite video standard. It also has 2 slots for optional video cards for SDI and Analog Component signals.

When the camera system includes the full function RM-BR300 joystick control panel, VISCA RS-422 or RS-232C cables can be connected to the multiplex unit. The control data is sent the other way through the BRU-300 to the cameras.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony BRU-300 Unit
  • Item Note: Item does not power on; Cosmetic Condition is 'E-'. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
