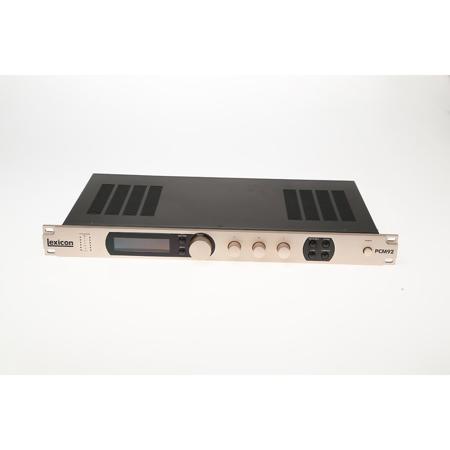

Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor SKU1407334

Picture does not represent the actual item
See what's in the box

See all Lexicon items

Used Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor, 7 Routing Configurations

SKU: US1407334

This item is no longer available.

Recommended Items

Ashly ne4800: Picture 1 regular
Ashly ne4800 Protea DSP Audio System Processor, 8-Ch AES3 Outputs, CNM-2 Card
$3,849.00$3,099.00
Ashly ne4400: Picture 1 regular
Ashly ne4400 Protea DSP Audio System Processor w/ 4-Ch Mic In & AES3 Out, CNM-2
$4,049.00$3,249.00
Ashly ne4800: Picture 1 regular
Ashly ne4800 Protea DSP Audio System Processor, 4-Ch AES3 Inputs, CNM-2
$3,449.00$2,759.00
Ashly ne8800: Picture 1 regular
Ashly ne8800 DSP Audio System Processor, 4-Ch Mic In, 1x 4-Ch Mic In Card, CNM-2
$4,499.00$3,599.00
Ashly ne4800: Picture 1 regular
Ashly ne4800 Protea DSP Audio System Processor 4-Ch AES3 In/8-Ch AES3 Out, Dante
$3,619.00$2,899.00
Ashly ne4800: Picture 1 regular
Ashly ne4800 Protea DSP Audio System Processor 4-In x 8-Out, Dante Option Card
$3,119.00$2,499.00
Link Electronics PCO-818SD: Picture 1 regular
Link ELectronics PCO-818SD Digital Change-Over Chassis
$2,365.00
Link Electronics PCO-818SA: Picture 1 regular
Link ELectronics PCO-818SA Analog Change-Over Chassis
$2,365.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Lexicon PCM92 Specifications

  • Analog Audio Inputs: Connectors

    Two XLR-1/4" TRS (combi-jack) analog balanced inputs

  • Analog Audio Inputs: Impedance

    20k Ohm, balanced

  • Analog Audio Inputs: Input Level

    +4dBu mode: +20dBu max
    -10dBV mode: +8.2dBu max
    Type IV mode: +26dBu max

  • Analog Audio Outputs: Connectors

    Two Male XLR and Two Female 1/4" TRS

  • Analog Audio Outputs: Impedance

    30 Ohm, electronically balanced

  • Analog Audio Outputs: Output Level

    +20dBu

  • Digital Audio I/O: Connectors

    One Female XLR Input / One Male XLR Output

  • Digital Audio I/O: Format

    AES/EBU balanced

  • Digital Audio I/O: Conversion

    24-bit A/D; 24-bit D/A

  • Digital Audio I/O: Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz

  • Digital Audio I/O: Accuracy

    within +/-50ppm

  • Digital Audio I/O: Lock Range

    +/-2% of nominal

  • Audio Performance: Freq Response @96KHz

    20Hz to 20kHz, +/-0.25dB
    20kHz to 40kHz, +0/-3dB

  • Audio Performance: THD

    <.003%, 20Hz to 20kHz @ +4dBu

  • Audio Performance: Dynamic Range

    >112dB unweighted, 115dB A-weighted

  • Audio Performance: Crosstalk @ 1kHz

    <-90dB, 20Hz to 20kHz @ +20dBu input

  • Audio Performance: Internal Audio DSP

    32/64-bit floating point

  • Synchronization: TTL Word Clock Input

    75 Ohm, BNC

  • Control Interface: MIDI

    In/Out/Thru

  • Control Interface: Footswitch

    One 1/4" TRS connector for independent momentary footswitches

  • Control Interface: Foot Controller

    One 1/4" TRS connector for foot pedal (100 Ohm - 10kOhm impedance)

  • Operating Temperature

    15Deg. to 35Deg. C

  • Storage Temperature

    -30Deg. to 70Deg. C

  • Humidity Temperature

    75% relative humidity max

  • Rack Units

    1U

  • Power Consumption

    <14W

  • Software Compatibility

    Mac OS X 10.4.x, 10.5.x, 10.6.x

  • Dimensions (W x H x D)

    19.0" x 1.75" x 9.5" / 483mm x 44.5mm x 241.3mm

  • Weight

    8 lbs / 3.63 kg

About Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor SKU1407334

Are you looking to elevate your audio production with professional-grade reverb and effects The Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor is engineered to transform your live performances and studio recordings with unparalleled sonic quality. Harnessing the power of advanced DSP technology, this processor is a treasure trove of audio enhancement, featuring an extensive array of classic Lexicon algorithms that have set the industry standard for sound innovation.

The PCM92 is not just a reverb unit; it's a versatile tool that offers an impressive selection of 28 mono and stereo reverbs, delays, and modulation effects. Whether you're crafting a subtle ambiance or a dramatic soundscape, the PCM92 provides the flexibility and precision required to achieve the perfect sound. Its 7 routing configurations allow for a multitude of setup options, ensuring seamless integration into any audio path.

Dive into a comprehensive library of over 1200 expertly designed presets, each one a testament to Lexicon's legacy of quality. These presets span a wide range of applications, giving you instant access to the iconic reverbs and effects that have been heard on countless hit records and blockbuster films. The PCM92 is not only a powerhouse of processing, it's also a gateway to the rich history of Lexicon's sound design expertise.

Crafted with meticulous attention to detail, the Lexicon PCM92 is the definitive choice for audio professionals seeking the ultimate reverb and effects processor for both live sound environments and studio settings. Elevate your audio experience with the Lexicon PCM92, where legendary sound meets modern technology.

Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor SKU1407334 Features

  • 28 Lexicon studio-standard reverbs, delays and modulation effects
  • Comprehensive collection of over 1200 finely crafted factory presets, including recognizable classics from Lexicon's immense library of sounds
  • Lexicon's flexible Room algorithm used to generate a vast array of room-related effects for music and film production
  • Multi-voice pitch shift to enhance vocals
  • Full system configuration and control with HiQnet System Architect
  • 44.1 to 96 kHz sample rate, 32-bit floating point processing
  • Two channels balanced analog I/O (XLR and 1/4")
  • Two channels XLR digital AES/EBU I/O
  • Ethernet connectivity and full MIDI control
  • External BNC Word Clock
  • Foot controller inputs make it easy to change presets and adjust parameters during live performances
  • High-resolution OLED display is easy to read in all light conditions

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lexicon PCM92 Studio Standard/Live Sound Reverb and Effects Processor
  • AC Power Cable
  • Software CD-ROM
  • Ethernet Cable
  • Original Box
  • Item Note: Item powers on but was not fully tested; Box is damaged
