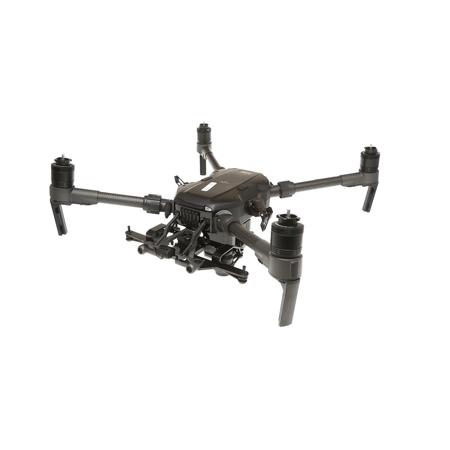

Used DJI Matrice 210 Industrial Quadcopter, Dual and Top Mounted Gimbal Support

SKU: US1415844

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DJI M210 Specifications

  • Additional Included Items

    - 1x Gimbal Damper
    - 2x Propeller Mounting Plates
    - 1x Vision System Calibration Plate
    - 4x Battery Insulation Sticker

  • Aircraft: Folding Method

    Folded Inward

  • Aircraft: Diagonal Wheelbase

    25.3" (64.26cm)

  • Aircraft: Number of Batteries

    2

  • Aircraft: Maximum Payload

    Approx. 2.3kg (5.07 lbs) (with two TB50 standard batteries )

  • Aircraft: Hovering Accuracy

    (During Safe Flights)
    Vertical: +/-0.5, Downward Vision System enabled: +/-0.1
    Horizontal: +/-1.5, Downward Vision System enabled: +/-0.3

  • Aircraft: Maximum Angular Velocity

    Pitch: 300 deg. /s
    Yaw: 150 deg. /s

  • Aircraft: Maximum Pitch Angle

    P Mode: 35 deg. (Forward Vision System enabled: 25 deg.)
    A Mode: 35 deg.
    S Mode: 35 deg.

  • Aircraft: Maximum Ascent Speed

    16.4 ft/s (5 m/s)

  • Aircraft: Maximum Descent Speed

    Vertical: 9.8 ft/s (3 m/s)

  • Aircraft: Maximum Speed

    S Mode: 23m/s
    P Mode: 17m/s
    A Mode: 23m/s

  • Aircraft: Maximum Service Ceiling

    Above Sea Level: 1.86 mi (3000m)

  • Aircraft: Maximum Wind Resistance

    32.8 ft/s (10 m/s)

  • Aircraft: Maximum Flight Time

    27min (No Payload, with TB50)
    13min (Full Payload, with TB50)

  • Aircraft: Motor Model

    DJI 3515

  • Aircraft: Propeller Model

    1760S

  • Aircraft: Retractable Landing Gear

    Standard

  • Aircraft: Operating Temperature

    -4 to 113 deg. F (-20 to 45 deg. C)

  • Aircraft: IP Rating

    IP43

  • Gimbal Installation

    Downward Gimbal Mount: Supported
    Upward Gimbal Mount: Supported
    Downward Dual Gimbal: Supported

  • Battery: Capacity

    4280 mAh

  • Battery: Voltage

    22.8V

  • Battery: Battery Type

    LiPo 6S

  • Battery: Energy

    97.58 Wh

  • Battery: Operating Temperature

    -20 to 40 deg. C (-4 to 104 deg. F)

  • Battery: Storage Temperature

    Less than 3 months: -4 to 113 deg. F (-20 to 45 deg. C)
    More than 3 months: 72 to 82 deg. F (22 to 28 deg. C)

  • Battery: Charging Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Battery: Maximum Charging Power

    180W

  • Charger: Voltage

    26.1V

  • Charger: Rated Power

    180W

  • Forward Vision System: Obstacle Sensing

    Range: 2.3-98.4' (0.7-30m)

  • Forward Vision System: FOV

    Horizontal 60 deg.,Vertical 54 deg.

  • Forward Vision System: Operating Env.

    Surfaces with clear patterns and adequate lighting (> 15 lux)

  • Downward Vision System: Velocity Range

    <32.8 ft/s (10 m/s) at the height of 6.56' (2m)

  • Downward Vision System: Altitude Range

    <32.8' (10m)

  • Downward Vision System: Operating Range

    <32.8' (10m)

  • Downward Vision System: Operating Env.

    Surfaces with clear patterns and adequate lighting (> 15 lux)

  • Downward Vision Sys.: Ultrasonic Sensor

    Operating Range: 0.33-16.4' (10-500 cm)
    Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

  • Compatible Gimbals

    Zenmuse X4S
    Zenmuse X5S
    Zenmuse Z30
    Zenmuse XT

  • Remote Controller: Operating Frequency

    2.400-2.483 GHz
    5.725-5.850 GHz

  • Remote Controller: Transmitting Distance

    Maximum:
    2.4 GHz: 4.3 miles (7 km, FCC)
    2.2 miles (3.5 km, CE)
    2.5 miles (4 km, SRRC)
    5.8 GHz: 4.3 miles (7 km, FCC)
    1.2 miles (2 km, CE)
    3.1 miles (5 km, SRRC)
    (unobstructed, free of interference)

  • Remote Controller: EIRP

    2.4 GHz: 26 dBm (FCC)
    17 dBm (CE)
    20 dBm (SRRC)
    5.8 GHz: 28 dBm (FCC)
    14 dBm (CE)
    20 dBm (SRRC)

  • Remote Controller: Video Output Ports

    USB, HDMI

  • Remote Controller: Power Supply

    Built-in battery

  • Remote Controller: Charging

    DJI charger

  • Remote Controller: Dual User Capability

    Host-and-Slave connection

  • Remote Controller: Mobile Device Holder

    Tablet or Smart Phone

  • Remote Controller: Maximum Mobile Device

    Width: 170mm (6.69")

  • Remote Controller: Output Power

    9W (Without supplying power to smart device)

  • Remote Controller: Operating Temperature

    -4 to 104 deg. F (-20 to 40 deg. C)

  • Remote Controller: Storage Temperature

    Less than 3 months: -4 to 113 deg. F (-20 to 45 deg. C)
    More than 3 months: 72 to 82 deg. F (22 to 28 deg. C)

  • Remote Controller: Charging Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Remote Controller: Battery

    6000mAh 2S LiPo

  • Remote Controller: USB Supply Power

    iOS: 1 A at 5.2 V (Max)
    Android: 1.5 A at 5.2 V (Max)

  • Mobile Device System Requirements

    iOS 9.0 or later, Android 4.4.0 or later

  • Supported Mobile Devices

    iOS: iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus

  • Supported Mobile Devices (cont.)

    Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1

  • Upward Infrared Sensor: Obstacle Sensing

    Range: 0-16.4' (0-5m)

  • Upward Infrared Sensor: FOV

    +/-5 deg.

  • Upward Infrared Sensor: Operating Env.

    Large-sized object with diffuse reflecting surface or high reflective rate (>10%)

  • Dimensions

    Aircraft:
    Unfolded: 28.2 x 8.7 x 9.3" (71.63 x 22.10 x 23.62cm)
    Folded: 34.9 x 34.6 x 14.9" (88.65 x 87.88 x 37.85cm)

  • Weight

    Aircraft: Approx. 3.84kg (8.47 lbs) with TB50 two standard batteries
    Aircraft (Maximum Takeoff): 6.14kg (13.54 lbs)
    Battery: Approx. 520g (18.34 oz)

About DJI Matrice 210 Industrial Quadcopter, Dual & Top Mounted Gimbal Support 1415844

Built To Endure
High-performance motors paired with 17-inch propellers ensure stable flight in strong winds.
The new dual-battery power system automatically heats batteries when flying in sub-zero temperatures, while an enclosed design ensures weather and water resistance, so you can fly in a wide range of environments.

• FPV Camera
• Dual-battery System
• Flight Autonomy
• IP43 Weatherproofing
• ADS-B Receiver
• Multiple Payload Configurations (Dual and Top Mounted)
• Universal Ports

Intelligent Flight Modes

Activetrack
Keep moving subjects in frame while you fly with ease to capture detailed data. Perfect for keeping track of missing persons while you relay their position to a rescue team.

Point of Interest
Easily circle your object of interest to focus on capturing the data needed for a detailed inspection, compatible with the X4S and X5S cameras.

Obstacle Avoidance
A robust Flight Autonomy system with front, bottom and upper sensors detect and avoid obstacles while enabling precision hovering so that you can fly with confidence.

Powerful Controls

App Compatibility
Conveniently control and customize your M200 Series drone with DJI GO 4 or DJI Pilot, an Android app built for enterprise users. Flight planning can be done using DJI GS Pro.

Transmission
The M200 series uses DJI's top of the line Lightbridge transmission system, enabling low-latency controls and live feeds from the aircraft.

DJI Airsense
With a built-in ADS-B receiver, the M200 Series enhances airspace safety by automatically providing the operator with real-time information about nearby manned aircraft.

Reliable Power
Pilots can fly the slim TB50 batteries for improved portability or the larger TB55 batteries to properly support a dual gimbal configuration and increase flight times.

Always Ready
The M200 Series drones fold down in a snap and unfold just as quickly. Gimbal mounting plates and aircraft arms stay mounted during transportation so that you're ready to fly within minutes.

What's in the box:

  • Aircraft Body
  • Cendence Remote Controller
  • Landing Gear
  • 7x Propellers
  • CrystalSky 7.85" Monitor
  • WCH2 Charging Hub
  • 2x WB37 Intelligent Battery
  • 2x TB50 Flight Battery
  • Battery Charger
  • IN2CH Charging Hub
  • Power Cable
  • Carrying Case
  • Vision Calibration Plate
  • Dual Downward Gimbal Connector
  • Ver: 01.02.0450
  • Item Note: Missing Single Upward Gimbal Connector; Single Downward Gimbal Connector; USB Double A Ports
