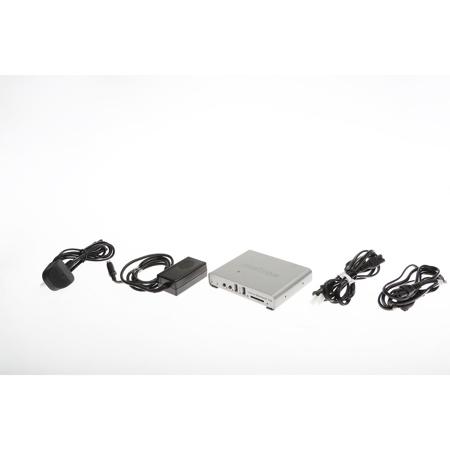

Used Matrox Monarch HD Simultaneous Live Streaming & Recording

Progressive:
1920x1080 at 60/59.94/50/24/23.98 Frames per second1280x720 at 60/59.94/50 Frames per second
Interlaced:
1920x1080i 29.97/25 frames per second
Video Input Format is Auto-Detected

Pass-through of video input signal. 2 Frames delay from input to output

Processes first two channels of audio embedded in HDMI input signal
Unbalanced analog stereo input via 1/8" (3.5mm) jack
Line Level

Pass-through of all embedded audio channels in HDMI signal
Unbalanced analog stereo output via 1/8" (3.5mm) jack - pass-through of input
Line Level

Selectable encoding resolutions ranging from:
96x96 to 1920x1080

Record Only Mode: 100 kbps to 30 Mbps
Stream Only Mode: 100 kbps to 20 Mbps
Independent Stream and Record Mode:
Recording: 100 kbps - 30 Mbps
Streaming: 100 kbps - 10 Mbps
Maximum combined total bitrate of 30 Mbps

Encode frame rates representing 1:1, ½ and ½of the input frames rates are supported

Baseline, Main and High

2.0, 3.0, 3.1, 4.0, 4.1 Level Support
GOP Size and Structure
Variable bit rate support
Average max/min data rate controls
Advanced Noise and Deblocking Filter

AAC-LC

32, 44.1 and 48 kHz when digitized from analog source

2 channels Stereo (L/R)

Range from 96 kbps to 256 kbps

High Quality multi-tap 10 bit Down Scaler and De-Interlacer
Available to both streaming and recording operations

File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio

RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing

RTMP, RTSP/RTP
IPv4 Support
Unicast and Multi Unicast (number of clients may vary from 3 to 10)

HTTP via standard PC or Mac Web browser

On Device push buttons for independent streaming and recording Start/Stop control

Support for NTFS (3.1) and FAT32 file system

Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported

Support for writing to shared folders in computers found on a network using Windows Share protocols. (Support for writing to shared folders on a Mac to come in upcoming release)

Provides relevant operational information concerning Status of MonarchHD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc...

Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface

Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a higher bitrate preset may be preferable

Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. Encoder presets have been included to quickly select an ideal encoder settings based on desired delivery resolution or bitrate. The loading of Flash Media Server XML configuration files is supported

Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page

Matrox provide PC or Mac based utilities to help detect Monarch HD Device on a particular Network (DHCP server required)

32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)

100-240V AC, 0.5A

50-60 Hz

External AC/DC adapter - IEC320-C8

+5VDC, 3A max

15 watts

Yes

Max Operating Altitude: 3000 meters
Max Transport altitude: 12,000 meters
Storage Humidity 5 to 95% relative humidity (non-condensing)

FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI
RoHS Directive 2002/95/EC

5.6 x 4.3 x 1.2" (14.2 x 10.9 x 3 cm) without SD card inserted
5.6 x 4.4 x 1.2" (14.2 x 11.2 x 3 cm) with SD card inserted

0.66 lbs (0.29 kg)
