Used Kino Flo Tegra 4Bank 455 DMX Kit with Travel Case

Item Note: Missing Flozier (Half); Bottom barndoor flag tension rods are broken; Bottom barndoor needs additional support to stay closed

SKU: US1441461 MFR: KIT-T455-120U
$156.00
$180.00
Save: $24 (13%)
Earn VIP Reward Points

What`s in the box:

  • Tegra 455 DMX Fixture
  • 4x Tungsten Bulb
  • 2x Daylight Bulb
  • Louver
  • Center Mount
  • Flozier (Half)
  • Lamp Case
  • Travel Case ** Item Note: Missing Flozier (Half); Bottom barndoor flag tension rods are broken; Bottom barndoor needs additional support to stay closed **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kino Flo Tegra 455 DMX Kit Specifications

LED Fixture

LED Fixture

Jump to...
  • Input Voltage

    100-240VAC
    240-100VAC

  • Output Frequency

    40kHz

  • Amperage

    2.8A
    1.4A

  • Dimming Range

    100% - 5%

  • Lamp Switching

    1-4

  • Lamps

    4x 75W T12

  • Dimensions

    52 x 13.5 x 6" with 6.5" barndoors (132 x 34 x 15cm with 16.5cm barndoors)

  • Weight

    19 lb (8.6kg)

  • Dimensions

    54.5 x 9 x 21" (138.5 x 23 x 53.5cm)

  • Weight

    41 lb (19kg)

About Kino Flo Tegra 4Bank 455 DMX Kit with Travel Case

Kino Flo's new Tegra 455 DMX redefines the evolution of light by combining the Academy-award winning features of the 4ft 4Bank portable system with onboard control features of the Diva-Lite 401.

The all-in-one Tegra 455 DMX features new levels of control with DMX and onboard dimming, DMX and onboard lamp switching, remote hand-held dimming, and Universal input voltage (100VAC to 240VAC).

The Tegra 455 DMX produces as much light as a 1000W tungsten softlight using only one third the amount of power at 2.8A (120VAC) compared to the tungsten softlight at 8.3A. Proprietary solid state electronics operate the lamps at high output, flicker-free, and dead quiet.

The built-in barndoors with honeycomb louver and center mount system make the lightweight Tegra ideal for hand-held shots, rigging in tight locations or mounting on a light stand.

The fixture takes 3200K and 5500K True Match lamps that display a full range of high color rendering soft light.

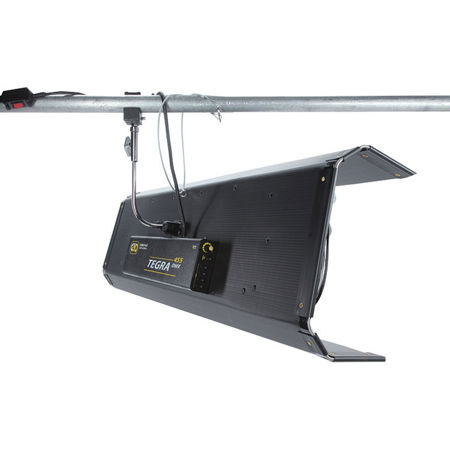

Tegra 455 DMX
The Tegra 455 DMX is a broad, soft light source ideally suited for television and film quick shooting styles. The Tegra 455 DMX produces a soft, diffused, beauty light without the use of a bounce card. The onboard DMX ballast is high output and offers DMX and manual lamp switching and DMX and manual lamp dimming without any color shift. Dimming is also available with the use of a hand-held remote dimmer. The louver and built-in barndoors provide additional light control. With its universal power supply, the versatile Tegra 455 can be used anywhere in the world.

The Tegra 455 DMX includes a center mount, honeycomb louver, reflector and built-in barndoors with newly designed hinges. Its all-in-one lightweight design is cool to the touch and can be mounted to a stand or hung from a grid.

The Tegra 455 operates on 4ft T12 True Match lamps (CRI 95) available in tungsten and daylight balanced lamps, (KF32 and KF55). Kino Flo visual effects lamps in 420nm blue for blue screen and 525nm green for green screen application are also available.

Tegra 455 DMX Fixture
The Tegra 455 DMX Fixture houses the lamps and includes a built-in Reflector and Harness, removable Honeycomb Louver and center mount with a baby receiver lollipop.

The built-in harness is color-coded. The same color-code must match at each end of the lamp for proper operation.

Flozier
The Tegra 455 DMX produces a broad soft light. The built-in barndoors can open to broaden the light. For additional softness, a Flozier may be used. The Flozier is cloth material that slips over the front of the fixture and provides a large area of white diffusion. The resulting larger area of diffusion further softens the light.

This is especially useful when dealing with reflective subject matter as a means of diffusing the reflection of the lamps in the fixture. The harshness of lamp reflections in glasses is easily avoided.

The Flozier is attached by stretching the two elastic cords around each end of the fixture.

Note: The louver should be removed before applying the Flozier. The Flozier is available in two densities, full and half.

Mount
The Center Mount includes a ball and socket design with a lock down handle. It allows unrestricted fixture orientation and keeps the fixture lightweight. The fixture can operate in either a horizontal or vertical position. It is easily rigged on the end of a grip arm to allow positioning off camera as a key or back light for interviews. At the other end of the Center Mount is a baby receiver (16mm) that can go directly onto a light stand.

Lamp Case
The 6-Lamp carry case fits 6 spare lamps allowing an easy change out of color temperature. It fits inside the clamshell case and the soft case.

Travel Cases
The clamshell travel case is recommended for travel in small vehicles and production trucks. It has room for one fixture and a 6-Lamp carry case.

Kino Flo Tegra 4Bank 455 DMX Kit with Travel Case Features

  • Tegra 455 DMX Features:
  • High Output, flicker-free
  • Remote dimming capability
  • Universal voltage with auto-sensing ballasts can be used anywhere in the world
  • Same fixture uses daylight or tungsten lamps
  • Full spectrum (CRI 95) lamps available in 3 color temperatures: 3200K and 5500K
  • Visual effects lamps available in 420nm blue, 525nm green for blue & green screen application
  • Low amperage draw at 2.8A/120VAC, 1.4A/230VAC
  • Mounts to a stand or grid
  • Tegra 455 DMX Fixture Features:
  • DMX and manual lamp dimming
  • DMX and manual lamp switching
  • Universal Input 100VAC-240VAC
  • Remote dimming
  • Built-in Barndoors
  • Center Mount
  • Reflector
  • Louver
  • True Match daylight and tungsten balanced lamps

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Tegra 455 DMX Fixture
  • 4x Tungsten Bulb
  • 2x Daylight Bulb
  • Louver
  • Center Mount
  • Flozier (Half)
  • Lamp Case
  • Travel Case
  • Item Note: Missing Flozier (Half); Bottom barndoor flag tension rods are broken; Bottom barndoor needs additional support to stay closed
