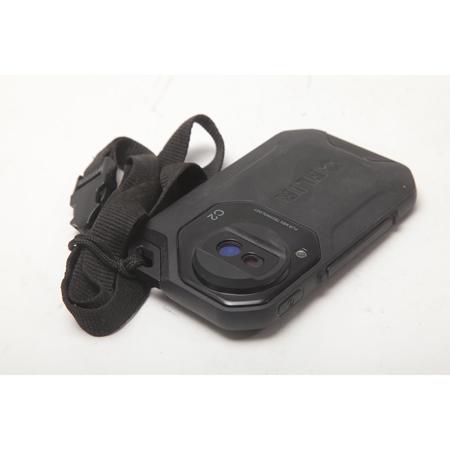

Used FLIR C2 Pocket-sized Thermal Imaging Infrared Camera with MSX, 80x60 IR Sensor

SKU: US1442704

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

FLIR C2 Specifications

  • IR Sensor

    80 x 60 (4,800 measurement pixels)

  • Thermal Sensitivity

    < 0.10 deg. C / 32 deg. F

  • Field of View

    41 x 31 deg.

  • Minimum Focus Distance

    Thermal: 0.15m / 0.49'
    MSX: 1.0m / 3.28'

  • Image Frequency

    9Hz

  • Spectral Range

    7.5 - 14Mum

  • NETD

    100mK

  • Focal length

    1.54mm

  • Spatial resolution (IFOV)

    11mrad

  • F-number

    1.1

  • Focus

    Focus Free

  • Focal Plane Array

    Uncooled microbolometer

  • Spectral range

    7.5 - 14 Mum

  • Detector pitch

    17Mum

  • IR sensor size

    80 x 60

  • Display (color)

    3.0 in
    320 x 240 pixels

  • Display, aspect ratio

    4:3

  • Auto orientation

    Yes

  • Touch screen

    Yes, capacitive

  • Image adjustment (alignment calibration)

    Yes

  • Infrared image

    Yes

  • Visual image

    Yes

  • MSX

    Yes

  • Gallery

    Yes

  • Object temperature range

    -10 to 150 deg. C / 14 to 302 deg. F (14 to 302 deg.F)

  • Accuracy

    +/-2 deg. C / +/-36 deg. F or 2%, whichever is greater, at 25 deg. C / 77 deg. F nominal

  • Spotmeter

    On/off

  • Emissivity correction

    Yes; matt/semi-matt/semi-glossy + custom value

  • Measurements correction

    Emissivity
    Reflected apparent temperature

  • Color palettes

    Iron
    Rainbow
    Rainbow HC
    Gray

  • Set-up commands

    Local adaptation of units, language, date and time formats

  • Languages

    Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simpl. Chinese, Spanish, Swedish, Trad. Chinese, Turkish.

  • Lamp: Output power

    0.85W

  • Lamp: Field of view

    60deg

  • Camera software

    update Using FLIR Tools

  • Storage media

    Internal memory store at least 500 sets of images

  • Image file format

    Standard JPEG
    14-bit measurement data included

  • Non-radiometric IR-video streaming

    Yes

  • Visual video streaming

    Yes

  • Digital camera

    640 x 480 pixels

  • Digital camera, focus

    Fixed focus

  • USB, connector type

    USB Micro-B: Data transfer to and from PC

  • USB, standard

    USB 2.0

  • Battery type

    Rechargeable Li-ion polymer battery

  • Battery voltage

    3.7V

  • Battery operating time

    2 Hour

  • Charging system

    Charged inside the camera

  • Charging time

    1.5 Hour

  • External power operation

    AC adapter, 90-260V AC input
    5V output to camera

  • Power management

    Automatic shut-down

  • Operating Temperature Range

    -10 to 150 deg. C / 14 to 302 deg. F (14 to 302 deg.F)

  • Storage Temperature Range

    40 to 70 deg. C / 104 to 158 deg. F

  • Humidity (operating and storage)

    IEC 60068-2-30/24 h 95%

  • Relative humidity

    25 to 40 deg. C / 77 to 104 deg. F non condensing

  • EMC

    WEEE 2012/19/EC
    RoHs 2011/65/EC
    C-Tick
    EN 61000-6-3
    EN 61000-6-2
    FCC 47 CFR Part 15 Class B

  • Magnetic fields

    EN 61000-4-8

  • Battery regulations

    UL 1642

  • Encapsulation

    Camera housing and lens: IP 40 (IEC 60529)

  • Shock

    25g / 0.88oz (IEC 60068-2-27)

  • Vibration

    2g / 0.07oz (IEC 60068-2-6)

  • Tripod mounting

    No

  • Housing material

    PC and ABS, partially covered with TPE
    Aluminum

  • Size (L x W x H)

    125 x 80 x 24mm / 4.92 x 3.15 x 0.94"

  • Weight

    0.13kg / 0.29lbs (incl. Battery)

About FLIR C2 Pocket-sized Thermal Imaging Infrared Camera - SKU#1442704

Powerful, Compact Thermal Imaging System
The FLIR C2 is the world's first full-featured, pocket-sized thermal camera designed for building industry experts and contractors. Keep it on you so you're ready anytime to find hidden heat patterns that signal energy waste, structural defects, plumbing issues and more. The C2's must-have features include MSX real time image enhancement, high sensitivity, a wide field of view and fully radiometric imagery to clearly show where problems are and verify the completion of repairs.

• Light, slim profile fits comfortably in any work and street-wear pocket
• Brilliant 3" intuitive touch screen with auto orientation for easy viewing
• MSX FLIR's proprietary multi-spectral-imaging feature gives you stunning image clarity
• Built-in LED spotlight you can use as a flashlight and for photo illumination
• Wide angle lens is optimized for building applications
• Fully radiometric images lets you measure any point on the image in post analysis on scenes between -10deg.C to 150deg.C
• Streaming video via FLIR Tools, a feature not usually available on low-cost systems
• Includes FLIR Tools professional reporting software for Mac or PC
• FLIR's unique 2-10 warranty, covering parts and labor for two years and the detector for ten

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • FLIR Infrared Camera
  • Lanyard
  • Power Supply/Charger with EU/UK/US/CN and Australian Plugs
  • Micro USB Cable
  • Firmware v3.14.0
  • Original Box
