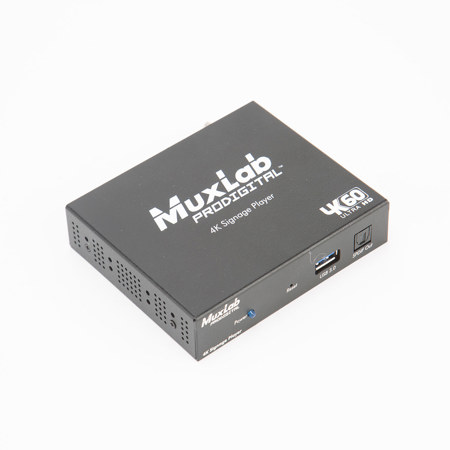

Muxlab HDMI 2.0 Digital Signage/Media Player - Rack Mountable SKU#1463552
Muxlab 500769-RM: Picture 1 thumbnail
Muxlab 500769-RM: Picture 2 thumbnail
Muxlab 500769-RM: Picture 3 thumbnail
Muxlab 500769-RM: Picture 4 thumbnail
Muxlab 500769-RM: Picture 5 thumbnail
See all Muxlab items
$13 PRICE DROPUsed Condition: Excellent

Used Muxlab HDMI 2.0 Digital Signage/Media Player, Rack Mountable

Item Note: Missing Power Supply

SKU: US1463552 MFR: 500769-RM
Be the first to review this item
$126.00
New: $411.00
Used Savings: $285 (69%)
Earn VIP Reward Points
See all Used options (1) from $126
Buy NEW from $411

What`s in the box:

  • HDMI 2.0 Digital Signage/Media Player (Rack Mountable)
  • Original Box ** Item Note: Missing Power Supply **

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Muxlab 500769-RM Specifications

  • Environment

    HDMI 2.0

  • Devices

    TVs, monitors, projectors supporting HDMI

  • Signal

    Protocal/Standard HDMI 2.0 and HDCP 2.2

  • Video Bandwidth

    594MHz

  • Network Bandwidth

    32Mbps (max)

  • Latency

    300ms

  • Protocols

    Supports Multicast, RTSP, HLS, FLV & TS

  • Connectors

    One (1) HDMI output connector for AV
    One (1) RJ45S for Ethernet connection
    One (1) USB connector for local AV content storage via external USB drive
    One (1) TosLink optical connector for digital audio extraction
    One (1) 3.5mm output connector for audio extraction
    One (1) 3.5mm connector for directional IR (direction controllable via software)
    One (1) RS232 DB9 connector for controlling end devices

  • Connectors (Contd.)

    One (1) 2.1mm locking power connector

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch. Unlimited over the Internet

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    4.5W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    5.8 x 4.3 x 1.3" (148 x 108 x 33mm)

  • Weight

    12 oz (340.2g)

About Muxlab HDMI 2.0 Digital Signage/Media Player - Rack Mountable SKU#1463552

The HDMI 2.0 Digital Signage Media Player is capable of receiving multiple H.264/H.265 AV content simultaneously up to 4K/60 (4:4:4) from a local network, the Internet, internal memory or external USB memory devices, and supports multiview capability and scheduling to automatically deliver this customized windowed AV content based on a weekly schedule. Multiple video, audio and image file formats are supported. It is able to up-scale 1080p@60Hz video to 4K@60Hz (4:4:4) and delivers content to a display or to another transmitter to support virtual matrix and video wall configurations.

The exceptionally low bandwidth requirements of this device allows it to accept streaming audio/video content over a local network, and over the Internet for distributed installations spread-out throughout the globe. The unit may be extended up to 100m from the Ethernet switch over CAT5/6 cable, and supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. This 500769-RM model is rack mountable via the 500920 16-Port Rackmount Transceiver Chassis.

The HDMI 2.0 Digital Signage Media Player may be managed by the unit web interface and by DigiSign (Content Management System) Software running on PC, tablet and smartphone. DigiSign will also organize and schedule weekly AV content to run autonomously.

Applications
• Digital signage / Media player
• Audio/Video Streaming over LAN and Internet
• Commercial and residential AV systems
• Corporate lobbies, malls and boutiques, airports, subway/train/bus stations, etc.

Muxlab HDMI 2.0 Digital Signage/Media Player - Rack Mountable SKU#1463552 Features

  • Digital Signage Media player supporting playlists and weekly scheduler of multi- format video, image and audio files
  • Supports multiview layouts
  • Supports up to 4K @ 60Hz (4:4:4) video streams
  • Up-scales 1080p @ 60Hz video streams up to 4K @ 60Hz
  • Extends local audio/video transmission up to 330' (100m) over Cat5e/6
  • 264/265 video codec, excellent for LAN & Internet transmission
  • Supports Multicast, RTSP, HLS, FLV and TS
  • USB 3.0 port for playback of local content from external USB drive
  • Extracts digital audio via SPDIF (TosLink)
  • Extracts analog audio via 2CH 3.5 mm jack
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered, via PoE (PSE) Ethernet Switch
  • Fits on 500920 16-Port Rackmount Transceiver Chassis
  • Managed via the unit web interface and DigiSign (Content Management System) Software running on PC, tablet and smartphone

Warranty Information

This used item has a FREE 90-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • HDMI 2.0 Digital Signage/Media Player (Rack Mountable)
  • Original Box
  • Item Note: Missing Power Supply
