NewTek Connect Spark Pro Specifications

  • Video Input

    1x HDMI

  • Audio Input

    1x HDMI embedded audio input (48/44.1/32 KHz)
    1x 1/4" (6.35 mm) Line Level (48 KHz)
    Stereo audio (2-channel LPCM)

  • Encoding

    NDI

  • Networking

    1x RJ-45 port for Gigabit Ethernet networking

  • Interface

    Web-based user interface for configuration and monitoring

  • Tally

    Tally support via NDI or 1/8" audio jack
    Built-in program/preview tally lights

  • Formats

    2160p: 60, 59.94, 50
    1080p: 60, 59.94, 50, 30, 29.97, 25, 24
    1080i: 59.94, 50
    720p: 60, 59.94, 50, 29.97, 25, 24
    576p: 50 (16:9, 4:3)
    480p: 60, 59.94 (16:9, 4:3)

  • Power

    Power over Ethernet (POE)
    External power via USB type-C (5V 2A)

  • Operating temperature

    -20 to 80 deg. C (-4 to 176 deg. F)

  • Relative humidity

    20% to 90%

  • Dimensions

    5.37 x 3.32 x 0.92" (13.64 x 8.43 x 2.34cm)

  • Weight

    0.65 lbs (0.29kg)

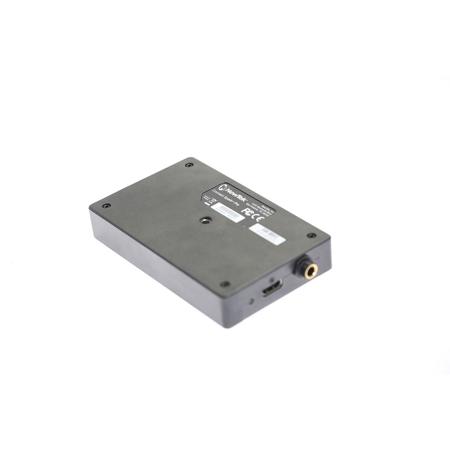

About NewTek Connect Spark Pro 4K to NDI Converter

Newtek Connect Spark Pro is the fastest, easiest and most flexible solution for converting 4K UHD video for IP workflows. In its ultra-portable enclosure, it combines the groundbreaking benefits of NDI, Newtek's innovative Network Device Interface technology, with powerful, professional features for modern video production.

Full-Bandwidth NDI Output
Translate video from the connected camera or device to IP, delivering to the network as a high-quality NDI video source with near-zero latency.

Portable and Mountable
Carry Connect Spark Pro with you wherever you go or optionally mount to a compatible camera or support using the industry-standard threaded screw mount.

Compatible With Any NDI Workflow
Share video over IP with any compatible system, device or application that supports NDI, including Newtek solutions and products from third-party manufacturers and developers.

4K UHD, HD and SD Formats
Convert video of any compatible format to NDI, including 4K UHD, with native support for resolutions up to 2160p at 60 frames per second.

HDMI Input
Connect, capture and convert any compatible HDMI video source.

Power over Ethernet (POE)
Power Connect Spark Pro via USB or optionally power over the wired Ethernet connection using a suitable POE networking device.

Professional-Level Audio
Present high-quality sound, with support for embedded HDMI digital audio and 1/4" analog audio.

NDI Transfer Modes
Transmit video to your network using your choice of supported NDI transfer modes, to include unicast and multicast UDP with forward error correction (FEC) and unicast TCP.

Tally
Receive tally notification from compatible NDI devices via physical LEDs when video output from Connect Spark Pro is visible on Program and/or Preview.

Web-Based Interface
Monitor video, manage login credentials, access controls and configure audio, video and network settings from any supported Web browser on any compatible networked device.

NDI Virtual Input
Designate Connect Spark Pro as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom and more using the free NDI Virtual Input tool. NDI Virtual Input included with the free Newtek NDI Tools download.

Network Identification
Easily identify Connect Spark Pro on your network with the ability to apply custom device and channel names.

Network Visibility
Access Connect Spark Pro devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.

Free Firmware Updates
Download and install free firmware updates to ensure your Connect Spark Pro is equipped with the latest features, capabilities and performance enhancements.

What's in the box:

  • NewTek Connect Spark Pro 4K to NDI Converter
  • Original Box
